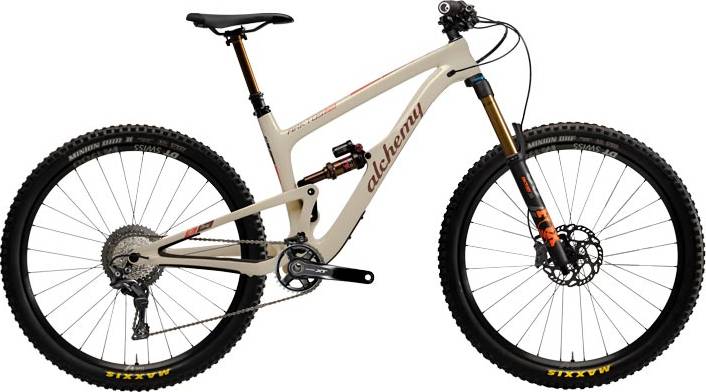

Alchemy Arktos 29 — XT 12 Speed 2020
2020 Mountain
Estimate price |
6,099$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
165cm - 177cm
LG
175cm - 188cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Fox 36 Factory Kashima 160mm Boost 15mm Grip 2
Rear Shock
Fox DPX2 Factory Kashima EVOL LV 3-Position Adjust 7.875×2.25, 10×22 Hardware
Drivetrain
Rear Derailleur
Shimano XT 12-speed Rear RD-M8100 GS Shadow+
Shift Levers
Shimano XT SL?M8100?Rapidfire Plus 12 Speed
Cassette
Shimano XT M8100 12-Speed 10-51t
Crank
Shimano XT FC-M8130-1 32 T 170mm
Bottom Bracket
Shimano XT Threaded
Chain
Shimano XT 12 Speed
Wheels
Rims
DT Swiss M 1700 SPLINE 29 – 30 mm CL 15/110mm
Tires
Maxxis Minion DHF 29×2.5 DC EXO TR, Maxxis Minion DHR 29×2.4 DC EXO TR
Brakes
Brakes
Shimano XT M8100/XT M8120 4 Piston $150
Disk Rotors
Shimano 180mm Center Lock Ice Tech Rotor
Cockpit
Stem
Race Face Aeffect R 50mm, 35mm, 0 degree
Handlebar
Race Face Aeffect R 35×780 20mm Rise
Grips
DMR Deathgrip Thin
Seat
Saddle
WTB Volt Race 142×165
Seatpost
X-Fusion Manic 150mm 31.6mm with Trigger Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.43 mm | 1.43 mm | 1.37 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 731 mm | 749 mm | 775 mm | 812 mm |
| Rake | 41 mm | 29 mm | 40 mm | 40 mm |
| Trail | 126 mm | 139 mm | 127 mm | 127 mm |
| Stack | 613 mm | 623 mm | 637 mm | 651 mm |
| Reach | 411 mm | 437 mm | 445 mm | 476 mm |
| Top Tube Length | 573 mm | 603 mm | 623 mm | 658 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 450 mm | 483 mm | 518 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1160 mm | 1178 mm | 1204 mm | 1241 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 785 mm | 787 mm | 795 mm | 823 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 165 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 177 cm | 188 cm | 195 cm |
About this model
Arktos 29 — XT 12 Speed completes the Alchemy Arktos model. 77 bikes variations carry this model name so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Alchemy Arktos 27.5 — NX Eagle 2020 is the most affordable bike of this model and has a price of 4899$. On the other hand, Alchemy Arktos 29 ST — XTR 2020, is the most expensive and costs 9499$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6099$. Comparing the average cost of a Trail bike to this one, you will see that Arktos 29 — XT 12 Speed price is 120.82% more expensive.
Arktos 29 — XT 12 Speed components
Fork
The Arktos 29 — XT 12 Speed comes factory-installed with the Fox Factory Float 36 fork. This has a travel range of 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this bike has the Fox DPX2 Factory Kashima EVOL LV 3-Position Adjust 7.875×2.25 model, with a travel of 140mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When leaving the production line, the Arktos 29 — XT 12 Speed model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Arktos 29 — XT 12 Speed comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 195 cm (5.18 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
