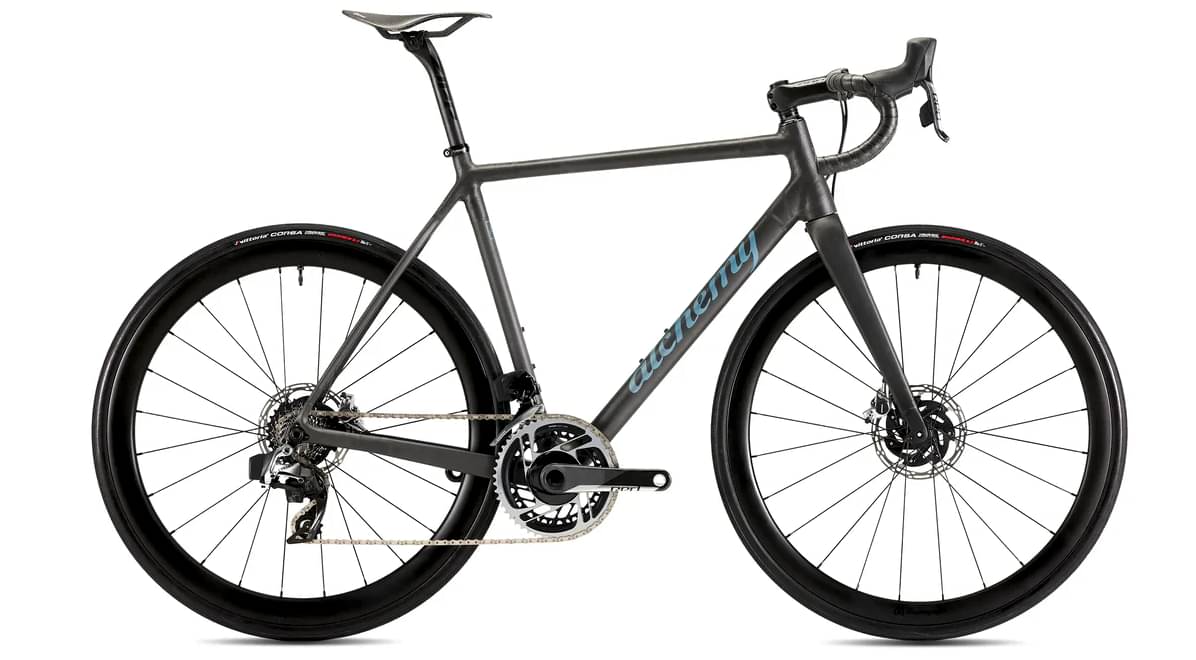

Alchemy ATLAS CARBON Au – Shimano Dura Ace Premium 2023
2023 Road
Estimate price |
11,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace -
Suspension Rigid -
Drivetrain 2 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
52cm
160cm - 167cm
54cm
164cm - 174cm
56cm
171cm - 182cm
58cm
179cm - 189cm
61cm
187cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Handmade in Colorado // Alchemy Premium Carbon // Custom Paint & Geometry Options.
Drivetrain
Rear Derailleur
Shimano Dura Ace R9200
Front Derailleur
Shimano Dura Ace R9200
Shift Levers
Shimano Dura Ace R9200
Cassette
Shimano Dura Ace 11-34t
Crank
Shimano Dura Ace R9200 50/34t 170/172.5mm
Bottom Bracket
Enduro XD-15 Hybrid-Ceramic PF86
Chain
Shimano 12sp
Wheels
Rims
Alchemy Carbon Road 38/44mm / DT Swiss EXP 240s / XD-15 Bearings
Tires
Vittoria Corsa Control 28/32mm
Brakes
Brakes
Shimano Dura Ace
Cockpit
Stem
Zipp SL Speed Carbon 100/110mm/td>
Handlebar
Zipp SL70 Carbon 42/44cm
Headset
Cane Creek AER
Seat
Saddle
Fizik Antares 00 Adaptive
Seatpost
Zipp SL Speed Carbon 27.2mm 0mm/25mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.44 mm | 1.47 mm | 1.5 mm | 1.49 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 580 mm | 580 mm | 590 mm | 600 mm | 620 mm |
| Rake | 42 mm | 44 mm | 43 mm | 44 mm | 43 mm |
| Trail | 60.8 mm | 58.6 mm | 57.4 mm | 55.5 mm | 53.7 mm |
| Stack | 527 mm | 550 mm | 570 mm | 590 mm | 610 mm |
| Reach | 368 mm | 381 mm | 388 mm | 394 mm | 409 mm |
| Seat Tube Angle | 74 ° | 73.8 ° | 73.5 ° | 73.2 ° | 72.8 ° |
| Seat Tube Length | 500 mm | 520 mm | 540 mm | 560 mm | 575 mm |
| Head Tube Angle | 71.5 ° | 73 ° | 73.2 ° | 73.5 ° | 73.8 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm | 210 mm |
| Chainstay Length | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm |
| Wheelbase | 970 mm | 978 mm | 988 mm | 998 mm | 1015 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 748 mm | 768 mm | 788 mm | 813 mm | 828 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 164 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 167 cm | 174 cm | 182 cm | 189 cm | 193 cm |
Model Overview
ATLAS CARBON Au – Shimano Dura Ace Premium completes the Alchemy Atlas model. There are 59 bikes that carry this model name. You can easily view all of the Alchemy Atlas bikes models from 2023, here.
Model range prices
The most economical model, the Alchemy ATLAS CARBON – SRAM Force AXS 2023 has a starting price of 8999$. Alchemy ATLAS CARBON Au – SRAM AXS Premium 2023 on the other hand is the most expensive at 11499$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Race bikes average price
According to our math, the average price for a trustworthy Race bike is 3350$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 11499$. In conclusion, this bike price is 243.25% more expensive than the price of the average Race bike.
ATLAS CARBON Au – Shimano Dura Ace Premium components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When it comes to wheels, the ATLAS CARBON Au – Shimano Dura Ace Premium bike is equipped with the 700c carbon model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Alchemy ATLAS CARBON Au – Shimano Dura Ace Premium has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
ATLAS CARBON Au – Shimano Dura Ace Premium comes in 5 sizes, that range from 160 cm – 193 cm (5.25 ft – 6.33 ft). In conclusion, it won’t take much to find one that’s right for you.
