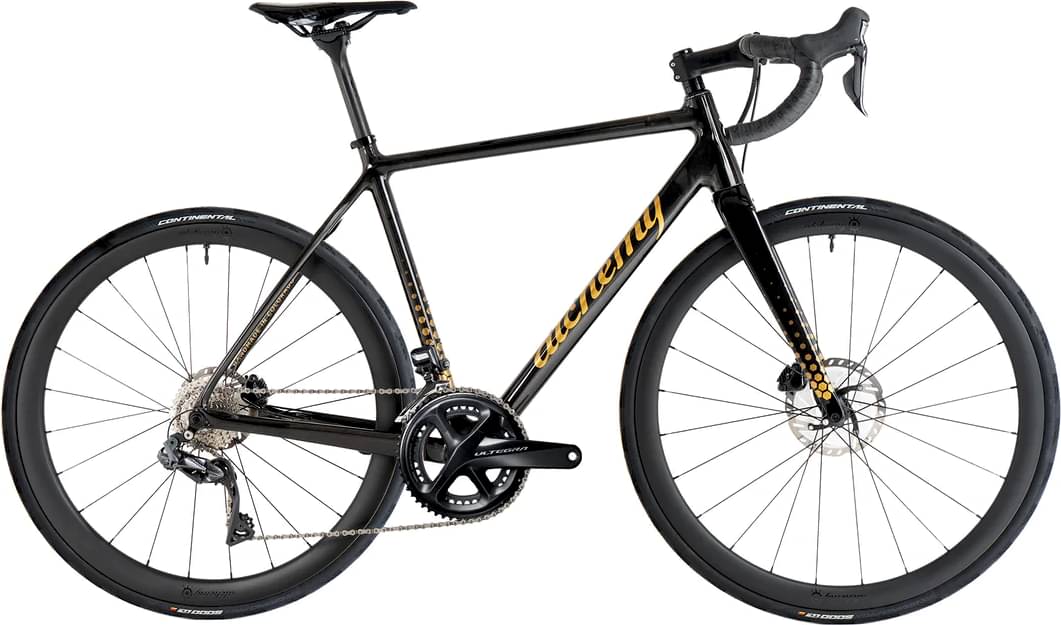

Alchemy ATLAS CARBON – Shimano Dura Di2 2023
2023 Road
Estimate price |
10,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
52cm
160cm - 167cm
54cm
164cm - 174cm
56cm
171cm - 182cm
58cm
179cm - 189cm
61cm
187cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Handmade in Colorado // Alchemy Premium Carbon // Custom Paint & Geometry Options.
Drivetrain
Rear Derailleur
Dura Ace RD-R9250 Di2
Front Derailleur
Dura Ace FD-R9250 Di2
Shift Levers
Dura Ace ST-R9270 Di2
Cassette
Dura Ace CS-R9200 11-34t
Crank
Dura Ace FC-R9200 50/34t 170mm/172.5mm
Bottom Bracket
Shimano SM-BBR9200 BSA
Chain
Shimano CN-M9200
Wheels
Rims
Alchemy Carbon Road / All-Road
Tires
Teravail Rampart 28c/38c
Brakes
Brakes
Dura Ace BR-R9270 Hydraulic
Cockpit
Stem
Zipp Sl Speed Carbon 90/100/110mm
Handlebar
Zipp SL 70 Carbon 42/44cm
Headset
Cane Creek 40 Series
Seat
Saddle
Selle Italia Model X
Seatpost
Alchemy Carbon 27.2mm 0mm/25mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.44 mm | 1.47 mm | 1.5 mm | 1.49 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 580 mm | 580 mm | 590 mm | 600 mm | 620 mm |
| Rake | 42 mm | 44 mm | 43 mm | 44 mm | 43 mm |
| Trail | 60.8 mm | 58.6 mm | 57.4 mm | 55.5 mm | 53.7 mm |
| Stack | 527 mm | 550 mm | 570 mm | 590 mm | 610 mm |
| Reach | 368 mm | 381 mm | 388 mm | 394 mm | 409 mm |
| Seat Tube Angle | 74 ° | 73.8 ° | 73.5 ° | 73.2 ° | 72.8 ° |
| Seat Tube Length | 500 mm | 520 mm | 540 mm | 560 mm | 575 mm |
| Head Tube Angle | 71.5 ° | 73 ° | 73.2 ° | 73.5 ° | 73.8 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm | 210 mm |
| Chainstay Length | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm |
| Wheelbase | 970 mm | 978 mm | 988 mm | 998 mm | 1015 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 748 mm | 768 mm | 788 mm | 813 mm | 828 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 164 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 167 cm | 174 cm | 182 cm | 189 cm | 193 cm |
Model Overview
ATLAS CARBON – Shimano Dura Di2 is an Alchemy Atlas model. 59 bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Alchemy ATLAS CARBON – SRAM Force AXS 2023 is the most economical model, with a starting price of 8999$. Alchemy ATLAS CARBON Au – SRAM AXS Premium 2023 on the other hand costs 11499$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Race bikes average price
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Alchemy released this model in 2023, its price was 10499$. Comparing the average cost of a Race bike to this one, you will see that ATLAS CARBON – Shimano Dura Di2 price is 213.4% more expensive.
ATLAS CARBON – Shimano Dura Di2 components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When it comes to wheels, the ATLAS CARBON – Shimano Dura Di2 bike is equipped with the 700c carbon model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
ATLAS CARBON – Shimano Dura Di2 comes in 5 sizes, that range from 160 cm – 193 cm (5.25 ft – 6.33 ft). In short, you can easily find one that suits you.
