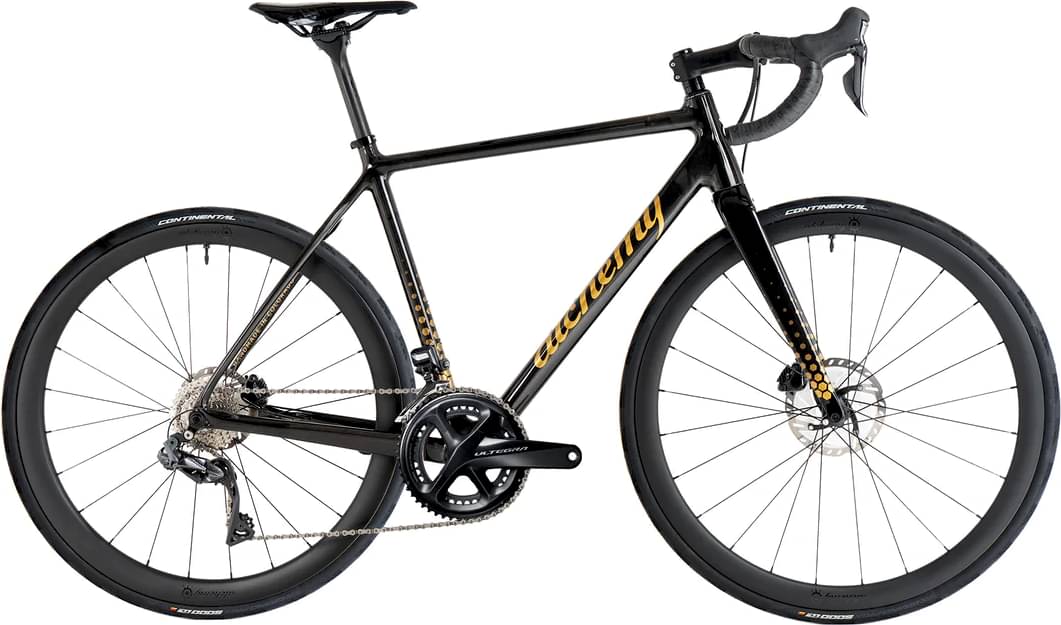

Alchemy ATLAS CARBON – Shimano Ultegra Di2 2023
2023 Road
Estimate price |
8,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
52cm
160cm - 167cm
54cm
164cm - 174cm
56cm
171cm - 182cm
58cm
179cm - 189cm
61cm
187cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Handmade in Colorado // Alchemy Premium Carbon // Custom Paint & Geometry Options.
Drivetrain
Rear Derailleur
Ultegra RD-R8150 Di2
Front Derailleur
Ultegra FD-R8150 Di2
Shift Levers
Ultegra ST-R8170 Di2
Cassette
Ultegra CS-R8100 11-34t
Crank
Ultegra FC-R8100 50/34t 170mm/172.5mm
Bottom Bracket
Shimano SM-BB72 86.5mm
Chain
Shimano CN-M8100
Wheels
Rims
Alchemy Carbon Road / All-Road
Tires
Teravail Rampart 28c/38c
Brakes
Brakes
Ultegra BR-R8170 Hydraulic
Cockpit
Stem
Zipp Sl Speed Carbon 90/100/110mm
Handlebar
Zipp SL 70 Carbon 42/44cm
Headset
Cane Creek 40 Series
Seat
Saddle
Selle Italia Model X
Seatpost
Alchemy Carbon 27.2mm 0mm/25mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.44 mm | 1.47 mm | 1.5 mm | 1.49 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 580 mm | 580 mm | 590 mm | 600 mm | 620 mm |
| Rake | 42 mm | 44 mm | 43 mm | 44 mm | 43 mm |
| Trail | 60.8 mm | 58.6 mm | 57.4 mm | 55.5 mm | 53.7 mm |
| Stack | 527 mm | 550 mm | 570 mm | 590 mm | 610 mm |
| Reach | 368 mm | 381 mm | 388 mm | 394 mm | 409 mm |
| Seat Tube Angle | 74 ° | 73.8 ° | 73.5 ° | 73.2 ° | 72.8 ° |
| Seat Tube Length | 500 mm | 520 mm | 540 mm | 560 mm | 575 mm |
| Head Tube Angle | 71.5 ° | 73 ° | 73.2 ° | 73.5 ° | 73.8 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm | 210 mm |
| Chainstay Length | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm |
| Wheelbase | 970 mm | 978 mm | 988 mm | 998 mm | 1015 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 748 mm | 768 mm | 788 mm | 813 mm | 828 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 164 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 167 cm | 174 cm | 182 cm | 189 cm | 193 cm |
Model Overview
ATLAS CARBON – Shimano Ultegra Di2 is part of the Alchemy Atlas model. Alchemy launched 59 bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Alchemy ATLAS CARBON – SRAM Force AXS 2023 has a starting price of 8999$. Alchemy ATLAS CARBON Au – SRAM AXS Premium 2023 on the other hand is the most expensive at 11499$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Race bikes average price
If you want an acceptable Race bike you should know that the average price is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Alchemy released this model in 2023, its price was 8999$. In conclusion, this bike price is 168.63% higher than the price of the average Race bike.
ATLAS CARBON – Shimano Ultegra Di2 components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The ATLAS CARBON – Shimano Ultegra Di2 2023 bike is equipped with 700c carbon wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 5 sizes. They vary from 160 cm – 193 cm (5.25 ft – 6.33 ft). In conclusion, it won’t take much to find one that’s right for you.
