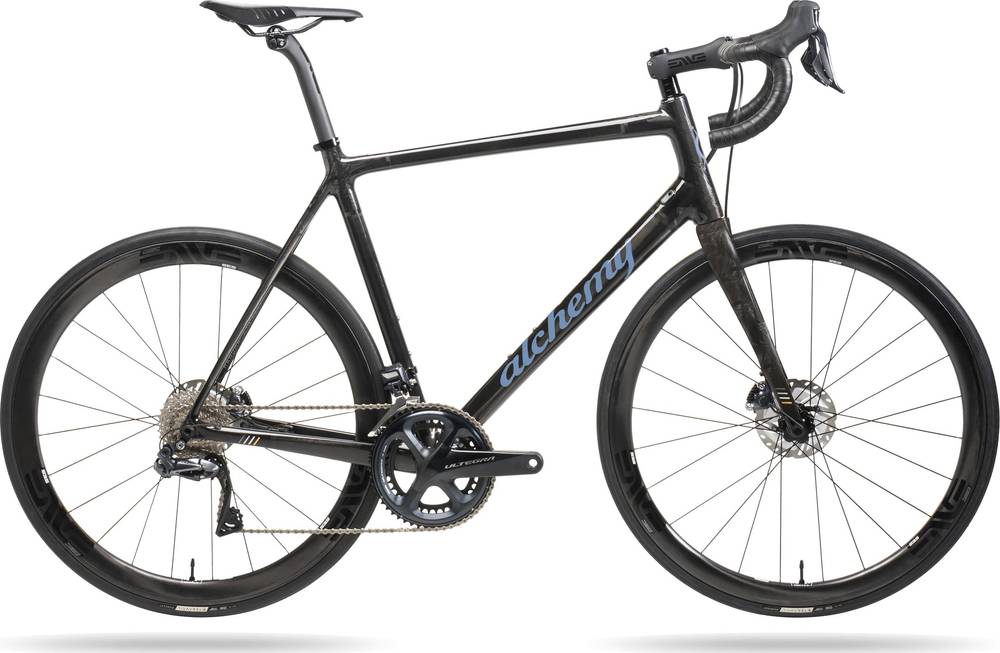

Alchemy Atlas — Ultegra Di2 Disc 2020
2020 Road
Estimate price |
7,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
52cm
160cm - 167cm
54cm
164cm - 174cm
56cm
171cm - 182cm
58cm
179cm - 189cm
61cm
187cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Rear Derailleur
Shimano Ultegra R8050 SS
Front Derailleur
Shimano Ultegra R8050
Shift Levers
Shimano Ultegra R8070 Di2 Shift/Disc Brake
Cassette
Shimano Ultegra R8000 11-30
Crank
Shimano Ultegra R8000 52/36
Bottom Bracket
Shimano Dura Ace BB9100 BB86
Chain
Shimano Chain HG-701
Wheels
Rims
HED Ardennes Disc Brake
Tires
Teravail Rampart Tire – 700 x 28, Tubeless, Folding, Black, Light and Supple
Brakes
Brakes
Shimano Ultegra R8070
Disk Rotors
Shimano RT800 140mm
Cockpit
Stem
Zipp Service Corse
Handlebar
Zipp Service Corse
Headset
Cane Creek 40-Series IS42/IS52
Seat
Saddle
Fizik Antares R7
Seatpost
Zipp Service Corse
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.43 mm | 1.46 mm | 1.49 mm | 1.49 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 580 mm | 580 mm | 590 mm | 600 mm | 620 mm |
| Rake | 32 mm | 35 mm | 38 mm | 39 mm | 36 mm |
| Trail | 60.8 mm | 58.6 mm | 57.4 mm | 55.5 mm | 53.7 mm |
| Stack | 527 mm | 552 mm | 574 mm | 594 mm | 614 mm |
| Reach | 372 mm | 385 mm | 392 mm | 398 mm | 413 mm |
| Top Tube Length | 524 mm | 545 mm | 562 mm | 577 mm | 603 mm |
| Seat Tube Angle | 74 ° | 73.8 ° | 73.5 ° | 73.2 ° | 72.8 ° |
| Seat Tube Length | 470 mm | 520 mm | 540 mm | 560 mm | 575 mm |
| Head Tube Angle | 71.5 ° | 73 ° | 73.2 ° | 73.5 ° | 73.8 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm | 210 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 967 mm | 977 mm | 992 mm | 1002 mm | 1017 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 164 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 167 cm | 174 cm | 182 cm | 189 cm | 193 cm |
Model Overview
Atlas — Ultegra Di2 Disc is an Alchemy Atlas model. Alchemy released 59 bikes variations of this model so far. You can easily view all of the Alchemy Atlas bikes models from 2020, here.
Model range prices
Alchemy Atlas — Ultegra Mechanical Disc 2020 is the most economical model, with a starting price of 6499$. Alchemy Atlas — Dura Ace Di2 Disc ENVE 2020 on the other hand costs 10499$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Race bikes
According to our math, the average price for a trustworthy Race bike is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2020 and its price was 7499$. Comparing this to the average Race bike price, we see that the price is 123.85% more expensive.
Atlas — Ultegra Di2 Disc components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
As for the wheels, Alchemy Atlas — Ultegra Di2 Disc 2020, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Atlas — Ultegra Di2 Disc has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Atlas — Ultegra Di2 Disc comes in 5 sizes, that range from 160 cm – 193 cm (5.25 ft – 6.33 ft). In short, you can easily find one that suits you.
