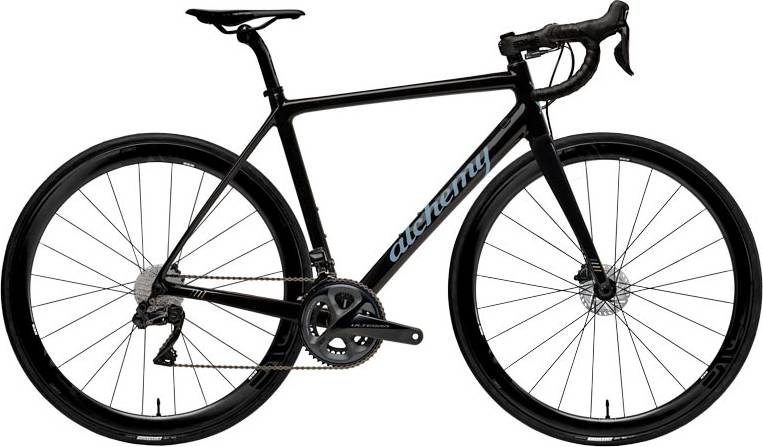

Alchemy Atlas — Ultegra Mechanical Disc 2019
2019 Road
Estimate price |
6,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
52cm
160cm - 167cm
54cm
164cm - 174cm
56cm
171cm - 182cm
58cm
179cm - 189cm
61cm
187cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Rear Derailleur
Shimano Ultegra R8000 SS
Front Derailleur
Shimano Ultegra R8000
Shift Levers
Shimano Ultegra R8020 Shift/Disc Brake
Cassette
Shimano Ultegra R8000 11-30
Crank
Shimano Ultegra R8000 52/36
Bottom Bracket
Shimano Dura Ace BB9100 BB86
Chain
Shimano Chain HG-701
Wheels
Rims
HED Ardennes Disc Brake
Tires
Teravail Rampart Tire – 700 x 28, Tubeless, Folding, Black, Light and Supple
Brakes
Brakes
Shimano Ultegra R8070
Disk Rotors
Shimano RT800 140mm
Cockpit
Stem
Zipp Service Corse
Handlebar
Zipp Service Corse
Headset
Cane Creek 40-Series IS42/IS52
Seat
Saddle
Fizik Antares R7
Seatpost
Zipp Service Corse
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.43 mm | 1.46 mm | 1.49 mm | 1.49 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 580 mm | 580 mm | 590 mm | 600 mm | 620 mm |
| Rake | 32 mm | 35 mm | 38 mm | 39 mm | 36 mm |
| Trail | 60.8 mm | 58.6 mm | 57.4 mm | 55.5 mm | 53.7 mm |
| Stack | 527 mm | 552 mm | 574 mm | 594 mm | 614 mm |
| Reach | 372 mm | 385 mm | 392 mm | 398 mm | 413 mm |
| Top Tube Length | 524 mm | 545 mm | 562 mm | 577 mm | 603 mm |
| Seat Tube Angle | 74 ° | 73.8 ° | 73.5 ° | 73.2 ° | 72.8 ° |
| Seat Tube Length | 470 mm | 520 mm | 540 mm | 560 mm | 575 mm |
| Head Tube Angle | 71.5 ° | 73 ° | 73.2 ° | 73.5 ° | 73.8 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm | 210 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 967 mm | 977 mm | 992 mm | 1002 mm | 1017 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 164 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 167 cm | 174 cm | 182 cm | 189 cm | 193 cm |
Model Overview
Atlas — Ultegra Mechanical Disc is an Alchemy Atlas model. There are 59 bikes that carry this model name. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Alchemy Atlas — Ultegra Mechanical Disc 2019 is the most economical model, with a starting price of 6499$. Alchemy Atlas — Dura Ace Di2 Disc ENVE 2019 on the other hand costs 10499$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Race bikes average price
Our math shows that the average cost of a dependable Race bike is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Alchemy released this model in 2019, its price was 6499$. In conclusion, this bike price is 94% higher than the price of the average Race bike.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When leaving the production line, the Atlas — Ultegra Mechanical Disc model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 5 sizes. They vary from 160 cm – 193 cm (5.25 ft – 6.33 ft). In conclusion, you won’t have a problem finding one that suits you.
