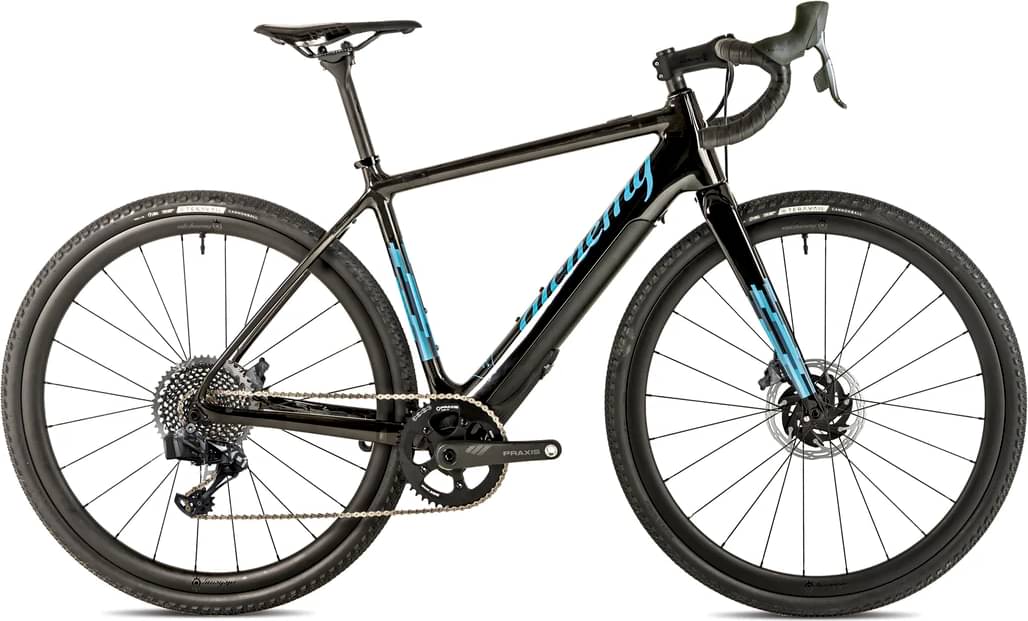

Alchemy eRONIN – SRAM Force XPLR 2023
2023 E-bike
Estimate price |
10,999$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force XPLR eTap, Force eTap -
Suspension Rigid -
Motor Fazua 250W 60Nm mid-drive -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
52cm
160cm - 167cm
54cm
164cm - 174cm
56cm
171cm - 182cm
58cm
179cm - 189cm
61cm
187cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Handmade in Colorado // Alchemy Premium Carbon // Fazua Drivetrain
Drivetrain
Rear Derailleur
SRAM Force XPLR eTap AXS
Front Derailleur
N/A
Shift Levers
SRAM Force eTap AXS HRD
Cassette
SRAM XPLR XG-1271 10-44t
Crank
Praxis Carbon e-crank
Bottom Bracket
SRAM DUB PF86.5
Chain
SRAM Force Flattop
Wheels
Rims
Industry Nine UL250 TRA Carbon Hydra/Alchemy Carbon 33mm
Tires
Teravail Teravail Cannonball 42c
Brakes
Brakes
SRAM Force HRD Flat Mount
Cockpit
Stem
Alchemy Carbon 100mm/110mm
Handlebar
Alchemy Carbon 42cm/44cm
Headset
Cane Creek 40 Series
Seat
Saddle
Fizik Antares R7
Seatpost
Alchemy Carbon 27.2mm 0mm/25mm
Motor & Battery
Motor
Fazua Evation
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.45 mm | 1.49 mm | 1.52 mm | 1.5 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 595 mm | 605 mm | 610 mm | 620 mm | 645 mm |
| Rake | 47 mm | 41 mm | 39 mm | 31 mm | 30 mm |
| Trail | 71.5 mm | 68.2 mm | 65 mm | 61.7 mm | 61.7 mm |
| Stack | 540 mm | 560 mm | 582 mm | 602 mm | 622 mm |
| Reach | 377 mm | 386 mm | 391 mm | 397 mm | 416 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 500 mm | 525 mm | 545 mm | 565 mm | 580 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 120 mm | 140 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1008 mm | 1018 mm | 1028 mm | 1033 mm | 1058 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 758 mm | 778 mm | 798 mm | 818 mm | 838 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 164 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 167 cm | 174 cm | 182 cm | 189 cm | 193 cm |
About this model
eRONIN – SRAM Force XPLR is an Alchemy E Eronin model. Alchemy launched 9 e-bikes of this model so far. Take a sneak peek at all Alchemy E Eronin e-bikes models from 2023, by clicking here.
Model range prices
Alchemy eRONIN – Frame 2023 is the most affordable e-bike of this model and has a price of 6499$. On the other hand, Alchemy eRONIN – SRAM XX1 2023, is the most expensive and costs 12499$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel e-bikes
Our math shows that the average cost of a dependable Gravel e-bike is 3642$. However, even though the average price of a Gravel e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2023 and its price was 10999$. Doing a quick comparison, we notice that eRONIN – SRAM Force XPLR price is 202% more expensive than the average cost of a Gravel e-bike.
eRONIN – SRAM Force XPLR components
Fork material
eRONIN – SRAM Force XPLR has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When it comes to wheels, the eRONIN – SRAM Force XPLR e-bike is equipped with the 700c carbon model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Alchemy eRONIN – SRAM Force XPLR is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 5 sizes. They vary from 160 cm – 193 cm (5.25 ft – 6.33 ft). In conclusion, it won’t take much to find one that’s right for you.
