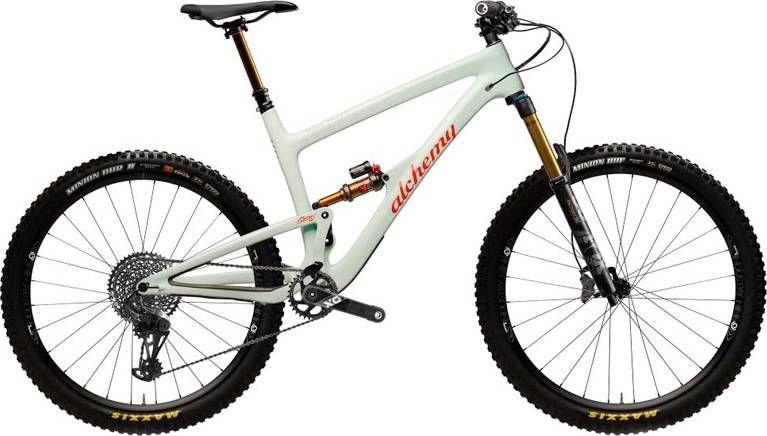

Alchemy NINE7FIVE — GX Eagle 2020
2020 Mountain
Estimate price |
5,399$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" / 27.5" -
Travel Front 160mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset GX Eagle, X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
165cm - 177cm
LG
175cm - 188cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Fox 36 29 Factory Kashima 160mm Boost 15mm Grip 2
Rear Shock
Fox DPX2 Factory Kashima EVOL LV 3-Position Adjust 7.875×2.25, 10×22 Hardware
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle
Cassette
SRAM GX 1275 Eagle 10-50T
Crank
SRAM GX EAGLE FC X01 EAGLE SB+ DUB 175 BLK 32
Bottom Bracket
SRAM BB DUB BSA MTB73 SB+
Chain
SRAM GX Eagle 12 SPD
Wheels
Rims
Industry Nine ENDURO S HYDRA 29? 15/110mm
Tires
Maxxis Minion DHF 29×2.5 DC EXO TR, Maxxis Minion DHR 27.5×2.4 DC EXO TR
Brakes
Brakes
Shimano XT M8000/XT M8120 4 Piston $150
Disk Rotors
Shimano 180mm 6 Bolt Ice Tech Rotor
Cockpit
Stem
Race Face Aeffect R 50mm 0 Degree
Handlebar
Race Face Aeffect R 35×780 20mm Rise
Grips
Ergon GA 20 Black
Seat
Saddle
WTB Volt Race 142×165
Seatpost
X-Fusion Manic 150mm 31.6mm with Trigger Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.43 mm | 1.44 mm | 1.37 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 723 mm | 741 mm | 770 mm | 807 mm |
| Rake | 27 mm | 16 mm | 29 mm | 29 mm |
| Trail | 145 mm | 157 mm | 143 mm | 143 mm |
| Stack | 613 mm | 623 mm | 637 mm | 651 mm |
| Reach | 410 mm | 435 mm | 443 mm | 474 mm |
| Top Tube Length | 572 mm | 602 mm | 622 mm | 657 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 410 mm | 450 mm | 483 mm | 518 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1153 mm | 1171 mm | 1200 mm | 1237 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Standover Height | 784 mm | 786 mm | 794 mm | 822 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 165 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 177 cm | 188 cm | 195 cm |
About this model
NINE7FIVE — GX Eagle is part of the Alchemy Nine7five model. 9 bikes variations carry this model name so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Alchemy NINE7FIVE — GX Eagle 2020 is the most affordable bike of this model and has a price of 5399$. On the other hand, Alchemy NINE7FIVE — XTR 2020, is the most expensive and costs 9499$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Alchemy released this model in 2020, its price was 5399$. Comparing this to the average Trail bike price, we see that the price is 95.47% higher.
NINE7FIVE — GX Eagle components
Fork
The NINE7FIVE — GX Eagle comes factory-installed with the Fox Factory Float 36 fork. This has a travel range of 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this bike has the Fox DPX2 Factory Kashima EVOL LV 3-Position Adjust 7.875×2.25 model, with a travel of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
As for the wheels, Alchemy NINE7FIVE — GX Eagle 2020, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Alchemy NINE7FIVE — GX Eagle has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Alchemy NINE7FIVE — GX Eagle bike has 4 sizes, in the range of 158 cm – 195 cm (5.18 ft – 6.4 ft). In short, you can easily find one that suits you.
Dropper post
The Alchemy model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
