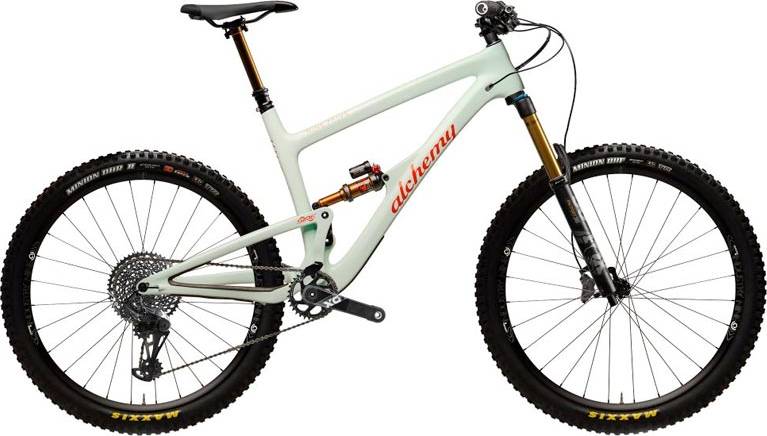

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" / 27.5" -
Travel Front 160mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset XTR -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
165cm - 177cm
LG
175cm - 188cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Fox 36 Factory Kashima 160mm Boost 15mm Grip 2
Rear Shock
Fox DPX2 Factory Kashima EVOL LV 3-Position Adjust 7.875×2.25, 10×22 Hardware
Drivetrain
Rear Derailleur
Shimano XTR M9120, XTR SGS, 12-SPEED
Shift Levers
Shimano XTR M9100 12 Speed
Cassette
Shimano XTR M9100 12-Speed 11-51t
Crank
Shimano XTR FC-M9100-1 32 T 175mm
Bottom Bracket
Shimano XTR Threaded
Chain
Shimano XTR 12 Speed
Wheels
Rims
ENVE M630 29? 15/110mm
Tires
Maxxis Minion DHF 29×2.5 DC EXO TR, Maxxis Minion DHR 27.5×2.4 DC EXO TR
Brakes
Brakes
Shimano XTR M9120 Trail Hydraulic
Disk Rotors
Shimano XTR M900 180mm Center Lock Ice Tech Rotor
Cockpit
Stem
ENVE M6 55mm 31.8mm
Handlebar
ENVE M6 780mm 7.5 Degree 31.8mm
Grips
Ergon GA 20 Black
Seat
Saddle
WTB Volt Race 142×165
Seatpost
Fox Factory 125mm or 150mm Transfer w/ Lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.43 mm | 1.44 mm | 1.37 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 723 mm | 741 mm | 770 mm | 807 mm |
| Rake | 27 mm | 16 mm | 29 mm | 29 mm |
| Trail | 145 mm | 157 mm | 143 mm | 143 mm |
| Stack | 613 mm | 623 mm | 637 mm | 651 mm |
| Reach | 410 mm | 435 mm | 443 mm | 474 mm |
| Top Tube Length | 572 mm | 602 mm | 622 mm | 657 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 410 mm | 450 mm | 483 mm | 518 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1153 mm | 1171 mm | 1200 mm | 1237 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Standover Height | 784 mm | 786 mm | 794 mm | 822 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 165 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 177 cm | 188 cm | 195 cm |
About this model
NINE7FIVE — XTR is part of the Alchemy Nine7five model. Alchemy launched 9 bikes of this model so far. Take a sneak peek at all Alchemy Nine7five bikes models from 2019, by clicking here.
Model range prices
Alchemy NINE7FIVE — XT 2019 is the cheapest bike model and costs 5099$. Alchemy NINE7FIVE — XTR 2019 is the most expensive one and costs 9499$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Alchemy NINE7FIVE — XTR price was 9499$. Comparing this to the average Trail bike price, we see that the price is 243.92% higher.
Overview of components
Fork
This bike has the Fox Factory Float 36 fork installed. The fork’s travel is 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is Fox DPX2 Factory Kashima EVOL LV 3-Position Adjust 7.875×2.25, with a travel distance of 140mm. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When it comes to wheels, the NINE7FIVE — XTR bike is equipped with the 29″ carbon model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Alchemy NINE7FIVE — XTR is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Alchemy NINE7FIVE — XTR bike has 4 sizes, in the range of 158 cm – 195 cm (5.18 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Alchemy NINE7FIVE — XTR includes a dropper post. Therefore, climbing or descending will be a breeze.
