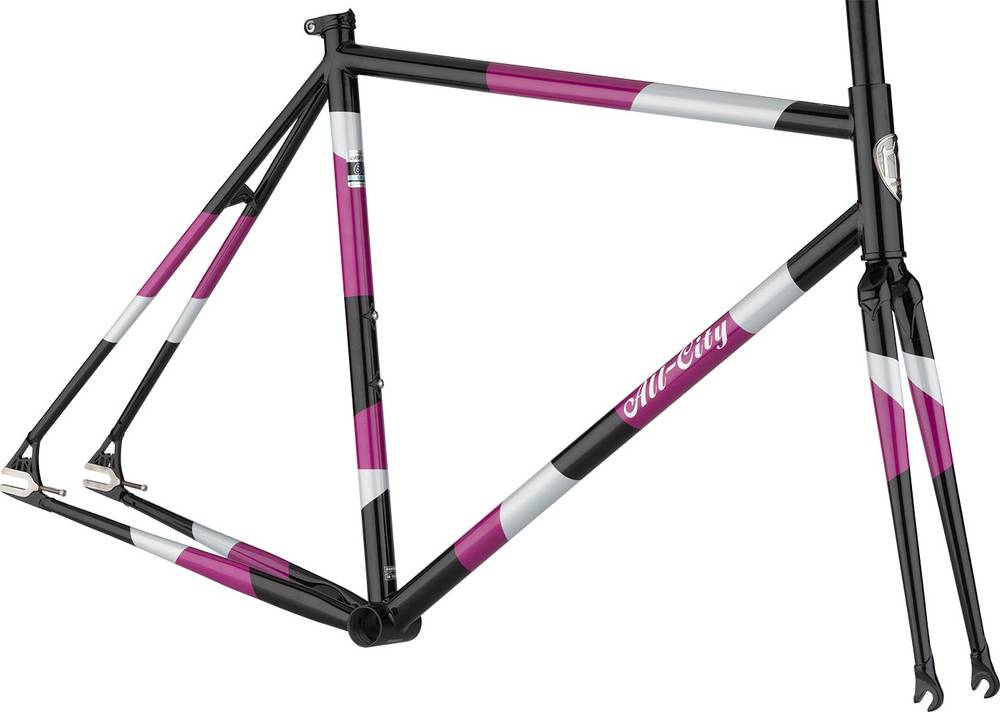

All City Big Block – Frameset 2020
2020 Urban
Estimate price |
550$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Steel -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
612 Select Chromoly Steel
Suspension Fork
612 Select Chromoly Steel
Drivetrain
Bottom Bracket
English Threaded, BSA 68 shell
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 49cm | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.33 mm | 1.34 mm | 1.39 mm | 1.43 mm | 1.41 mm | 1.43 mm |
| Front Center | 557 mm | 568 mm | 574 mm | 585 mm | 605 mm | 620 mm |
| Rake | 32 mm | 32 mm | 32 mm | 32 mm | 32 mm | 32 mm |
| Trail | 74 mm | 71 mm | 63 mm | 54 mm | 64 mm | 60 mm |
| Stack | 500.8 mm | 516.6 mm | 537.3 mm | 558 mm | 582.2 mm | 607.9 mm |
| Reach | 375.7 mm | 386.4 mm | 386.4 mm | 390.8 mm | 413.3 mm | 426.2 mm |
| Top Tube Length | 512 mm | 527 mm | 542 mm | 557 mm | 577 mm | 597 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 460 mm | 490 mm | 520 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 73 ° | 73.5 ° | 74 ° | 74.5 ° | 74.5 ° | 75 ° |
| Head Tube Length | 95 mm | 110 mm | 130 mm | 150 mm | 175 mm | 200 mm |
| Chainstay Length | 388 mm | 388 mm | 388 mm | 388 mm | 388 mm | 388 mm |
| Wheelbase | 937 mm | 948 mm | 955 mm | 965 mm | 985 mm | 1000 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Standover Height | 742 mm | 764 mm | 788 mm | 813 mm | 839 mm | 866 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
Big Block – Frameset is an Allcity Big Block model. 6 frames variations carry this model name so far. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Hipster frames average price
According to our calculations, the average cost of a Hipster frame that is reliable is 540$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hipster frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
When All City released this model in 2020, its price was 550$. Comparing this to the average Hipster frame price, we see that the price is 1.85% more expensive.
Big Block – Frameset components
Fork material
When it comes to the fork, this frame has a steel one, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
