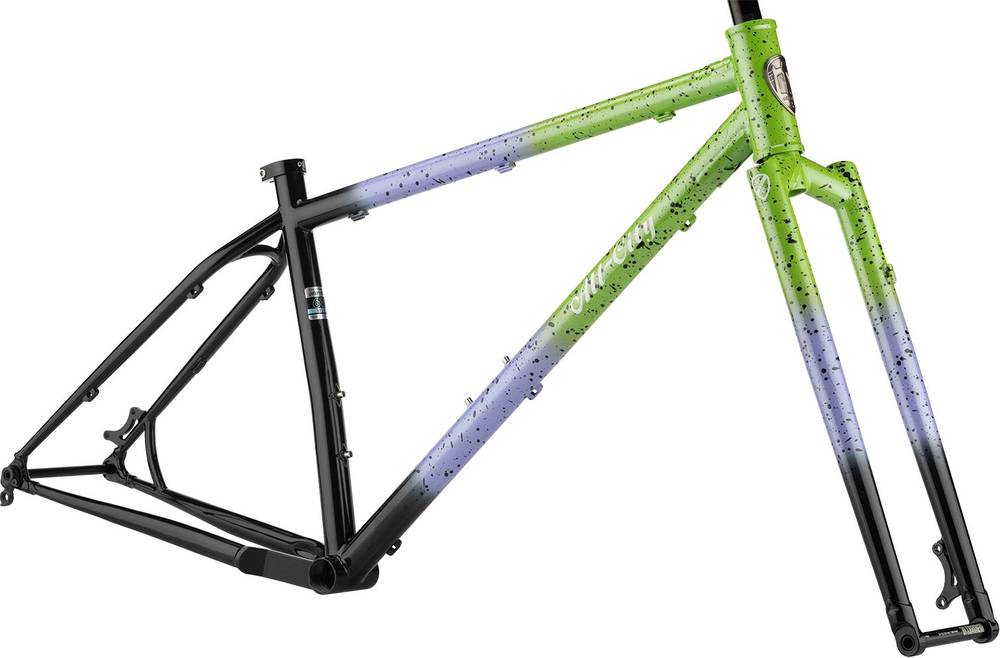

All City Electric Queen – Frameset 2019
2019 Mountain
Estimate price |
999$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Steel -
Wheels 27.5" -
Suspension Rigid
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
612 Select CroMoly steel. Double butted down, top, and seat tubes. Externally tapered, ovalized, and dimpled chain stays, tapered seat stays, replaceable derailleur hanger. Stealth dropper post routing.
Suspension Fork
Frame corrected for 120mm Max Suspension fork (51mm Offset).
Drivetrain
Bottom Bracket
73mm English
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.63 mm | 1.5 mm | 1.43 mm | 1.37 mm | 1.34 mm |
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm | 316 mm | 316 mm |
| Front Center | 648 mm | 688 mm | 719 mm | 750 mm | 770 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 91 mm | 91 mm | 91 mm | 91 mm | 91 mm |
| Stack | 601.1 mm | 610.7 mm | 620.2 mm | 629.7 mm | 639.1 mm |
| Reach | 369.9 mm | 407.1 mm | 434.2 mm | 461.3 mm | 478.3 mm |
| Top Tube Length | 569.5 mm | 609.5 mm | 639.6 mm | 669.6 mm | 689.7 mm |
| Seat Tube Angle | 71.4 ° | 71.5 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Seat Tube Length | 356 mm | 400 mm | 445 mm | 483 mm | 525 mm |
| Head Tube Angle | 67.6 ° | 67.7 ° | 67.7 ° | 67.7 ° | 67.7 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1076 mm | 1117 mm | 1147 mm | 1178 mm | 1199 mm |
| Bottom Bracket Drop | 39 mm | 39 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 708 mm | 745 mm | 779 mm | 812 mm | 843 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
Electric Queen – Frameset belongs to the Allcity Queen model. All City released 4 frames variations of this model so far. You can easily view all of the Allcity Queen frames models from 2019, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail frames average price
According to our calculations, the average cost of a Trail frame that is reliable is 1736$. However, this doesn’t mean that if you spend less money on a Trail frame, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
When All City released this model in 2019, its price was 999$. Doing a quick comparison, we notice that Electric Queen – Frameset price is 73.77% smaller than the average cost of a Trail frame.
Internal Cable Routing
It’s also important to mention the internal cable routing that this frame has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Electric Queen – Frameset components
Sizes
This frame is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
