Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Steel -
Wheels 27.5" -
Suspension Rigid
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
All-City A.C.E. Air-Hardened, Custom, Extruded steel frame, internally gusseted downtube, 44mm headtube, custom CNC seat collar
Suspension Fork
4130 CroMoly, 5 piece segmented crown and custom butted/tapered fork legs
Drivetrain
Bottom Bracket
73mm English
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.448 mm | 1.36 mm | 1.314 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm |
| Front Center | 618 mm | 654 mm | 679 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 81 mm | 81 mm | 81 mm |
| Stack | 562 mm | 571 mm | 581 mm |
| Reach | 388 mm | 420 mm | 442 mm |
| Top Tube Length | 565 mm | 600 mm | 625 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 400 mm | 445 mm | 491 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm |
| Wheelbase | 1030 mm | 1066 mm | 1091 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm |
| Standover Height | 733 mm | 764 mm | 796 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

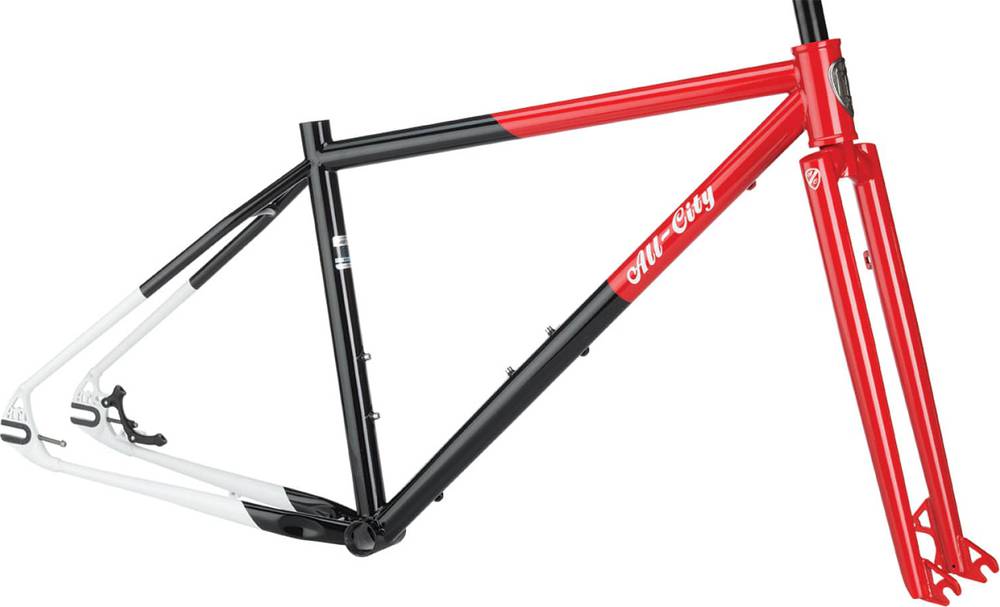

Log Lady – Frameset is part of the Allcity Log model. All City released 2 frames variations of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry frames
If you want to purchase a solid Crosscountry frame, it is important to know that the average cost is 1689$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Log Lady – Frameset components
Fork material
When it comes to the fork, this frame has a steel one, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Sizes
This frame is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
