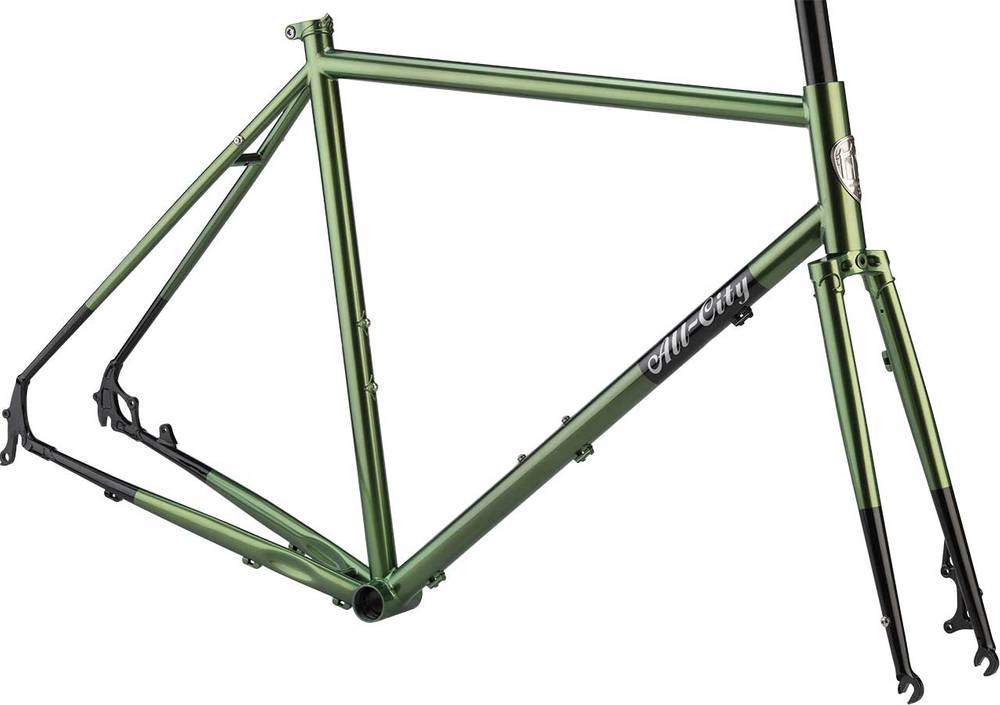

All City Macho Man Flat Bar – Frameset 2019
2019 Urban
Estimate price |
650$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Steel -
Wheels 650b -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
612 Select double-butted CroMoly tubeset, double bottle cage mount, 135 mm rear spacing, 1-1/8" headset, English BB
Suspension Fork
612 Select double-butted CroMoly, tapered fork blades, lugged crown & matching dropouts w/IS disc tabs
Drivetrain
Bottom Bracket
68 mm English
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 43cm | 46cm | 49cm | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.43 mm | 1.47 mm | 1.5 mm | 1.52 mm | 1.56 mm | 1.57 mm |
| Front Center | 567 mm | 578 mm | 591 mm | 594 mm | 605 mm | 614 mm | 634 mm |
| Rake | 47 mm | 47 mm | 47 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 65 mm | 62 mm | 62 mm | 64 mm | 60 mm | 57 mm | 57 mm |
| Stack | 488.4 mm | 513.8 mm | 537.5 mm | 556 mm | 576.9 mm | 602.6 mm | 626.4 mm |
| Reach | 352.8 mm | 359.7 mm | 365.3 mm | 370.9 mm | 379.5 mm | 385.8 mm | 398.3 mm |
| Top Tube Length | 488 mm | 513 mm | 528 mm | 543 mm | 558 mm | 578 mm | 598 mm |
| Seat Tube Angle | 75 ° | 73.75 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 410 mm | 450 mm | 490 mm | 545.4 mm | 565 mm | 605.3 mm | 635.3 mm |
| Head Tube Angle | 70.75 ° | 71.25 ° | 71.25 ° | 71.5 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 100 mm | 125 mm | 150 mm | 130 mm | 150 mm | 175 mm | 200 mm |
| Chainstay Length | 398 mm | 398 mm | 398 mm | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 959 mm | 970 mm | 983 mm | 1012 mm | 1023 mm | 1032 mm | 1052 mm |
| Bottom Bracket Drop | 52 mm | 52 mm | 52 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 696 mm | 730 mm | 764 mm | 795 mm | 820 mm | 846 mm | 873 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 | 650 | 650 |
About this model
Macho Man Flat Bar – Frameset is an Allcity Macho model. 6 frames variations carry this model name so far. You can easily view all of the Allcity Macho frames models from 2019, here.
Model range prices
The most economical model, the All City Macho Man Flat Bar – Frameset 2019 has a starting price of 650$. All City Macho King A.C.E. – Frameset 2019 on the other hand is the most expensive at 1299$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Commuter frames average price
According to our math, the average price for a trustworthy Commuter frame is 742$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter frame. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
This frame was released in 2019 and its price was 650$. In conclusion, this frame price is 14.15% smaller than the price of the average Commuter frame.
Overview of components
Fork material
Macho Man Flat Bar – Frameset has a steel fork, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the frame.
