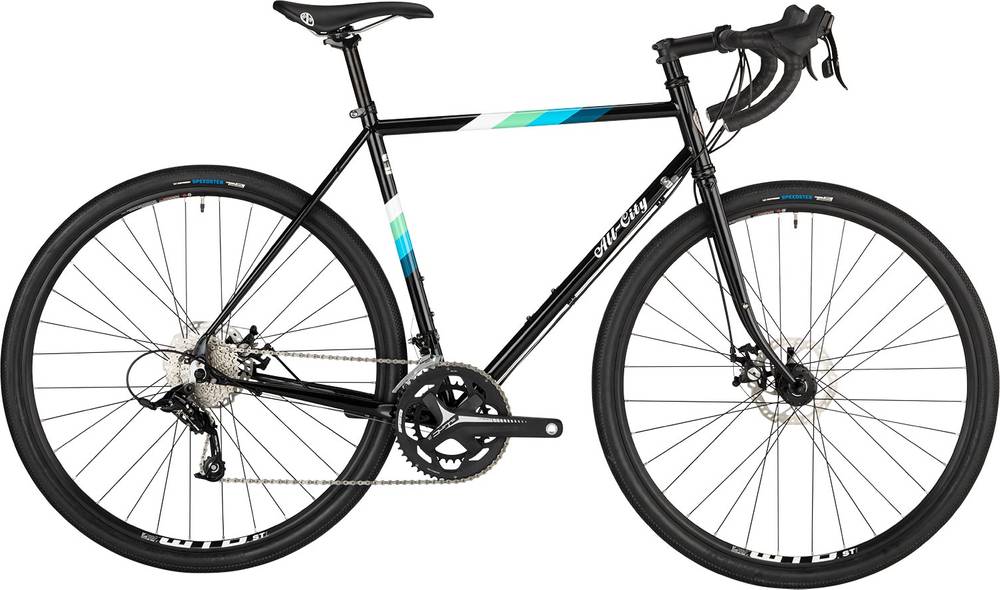

All City Space Horse – Frameset 2020
2020 Road
Estimate price |
650$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Steel -
Wheels 650b / 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
612 Select CroMoly steel. Double-butted down, top, & seat tubes. Externally tapered, ovalized, & dimpled chain stays, tapered seat stays, replaceable derailleur hanger.
Suspension Fork
4130 CroMoly tapered fork blades, lugged crown & matching dropout, straight steertube, IS disc brake tabs.
Drivetrain
Bottom Bracket
68mm English
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 43cm | 46cm | 49cm | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.35 mm | 1.45 mm | 1.48 mm | 1.55 mm | 1.58 mm | 1.57 mm |
| Front Center | 573 mm | 585 mm | 595 mm | 604 mm | 600 mm | 615 mm | 639 mm |
| Rake | 49 mm | 49 mm | 52 mm | 52 mm | 47 mm | 47 mm | 47 mm |
| Trail | 68 mm | 65 mm | 65 mm | 65 mm | 64 mm | 64 mm | 64 mm |
| Stack | 496 mm | 507 mm | 548 mm | 562 mm | 592 mm | 615 mm | 639 mm |
| Reach | 362 mm | 375 mm | 377 mm | 381 mm | 382 mm | 390 mm | 406 mm |
| Top Tube Length | 498 mm | 518 mm | 533 mm | 548 mm | 563 mm | 583 mm | 613 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74.2 ° | 73.5 ° | 73 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 420 mm | 450 mm | 480 mm | 510 mm | 540 mm | 570 mm | 600 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 95 mm | 105 mm | 110 mm | 125 mm | 150 mm | 175 mm | 200 mm |
| Chainstay Length | 423 mm | 423 mm | 438 mm | 443 mm | 443 mm | 448 mm | 448 mm |
| Wheelbase | 988 mm | 1001 mm | 1021 mm | 1035 mm | 1032 mm | 1052 mm | 1076 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 712 mm | 735 mm | 760 mm | 783 mm | 812 mm | 838 mm | 864 mm |
| Wheels | 650 | 650 | 700 | 700 | 700 | 700 | 700 |
About this model
Space Horse – Frameset belongs to the Allcity Space model. All City launched 14 frames of this model so far. Take a sneak peek at all Allcity Space frames models from 2020, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel frames average price
If you want an acceptable Gravel frame you should know that the average price is 1505$. However, even though the average price of a Gravel frame is lower, you might still be able to get a top-quality frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
At the moment of the release date, All City Space Horse – Frameset price was 650$. In conclusion, this frame price is 131.54% lower than the price of the average Gravel frame.
Space Horse – Frameset components
Fork material
Space Horse – Frameset has a steel fork, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
