All City All-City Zig Zag 105 2022
2022 Road
Estimate price |
2,899$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

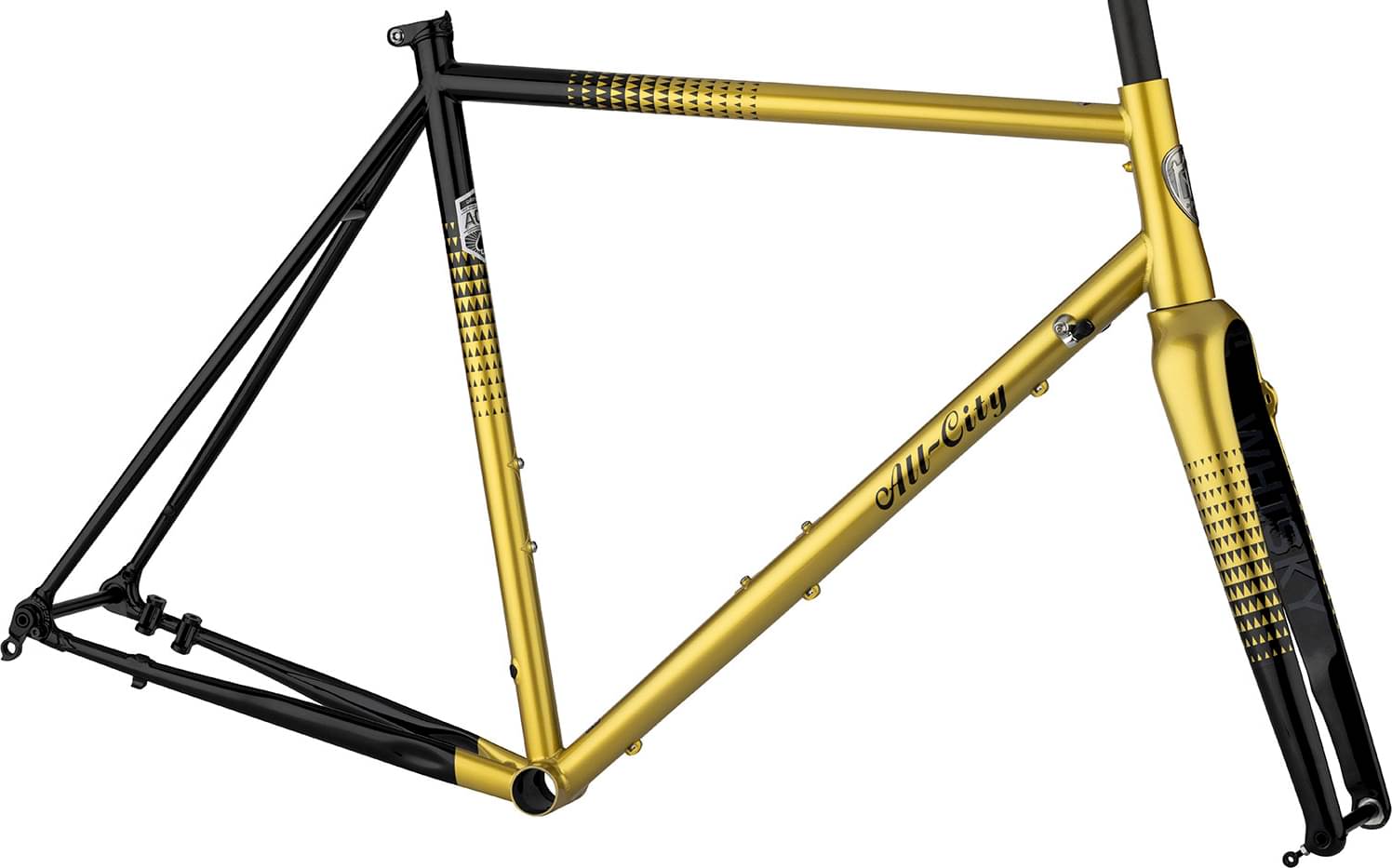

Frame
Frame
All-City A.C.E. Air-Hardened, Custom, Extruded steel
Suspension Fork
Whisky No.9 RD+ Thru-Axle Tapered
Drivetrain
Rear Derailleur
Shimano 105 R7000
Front Derailleur
Shimano 105 R7000
Shift Levers
Shimano 105 R7000
Cassette
Shimano R7000 11-32
Crank
Shimano 105 R7000 52-36
Bottom Bracket
Shimano RS500
Chain
Shimano HG601
Wheels
Front Hub
All-City Go-Devil 28h
Rear Hub
All-City Go-Devil 28h
Rims
WTB ST Light i19 700c 28h
Tires
Teravail Rampart 700x28 60tpi Light and Supple
Brakes
Brakes
Shimano 105 R7000 Hydro
Brake Levers
Shimano 105 R7000 Hydro
Cockpit
Stem
Whisky No.7 Black Alloy Stem; ±6° Rise
Handlebar
Whisky No.7 Black 6° Flair Drop Bar
Headset
Cane Creek 40 Series
Seat
Saddle
Black with Chromo Rails
Seatpost
Whisky No.7 Black Alloy Seat Post
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 49cm | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.44 mm | 1.47 mm | 1.51 mm | 1.53 mm | 1.53 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 598 mm | 602 mm | 606 mm | 614 mm | 633 mm | 655 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 69 mm | 58 mm | 51 mm | 55 mm | 47 mm | 47 mm |
| Stack | 516 mm | 532 mm | 554 mm | 575 mm | 599 mm | 623 mm |
| Reach | 367 mm | 369 mm | 376 mm | 381 mm | 392 mm | 407 mm |
| Top Tube Length | 512 mm | 522 mm | 537 mm | 552 mm | 572 mm | 597 mm |
| Seat Tube Angle | 75.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 490 mm | 520 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 70 ° | 71 ° | 72 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 106 mm | 121 mm | 140 mm | 160.5 mm | 185.5 mm | 210.5 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 412 mm | 412 mm |
| Wheelbase | 995 mm | 998 mm | 1003 mm | 1011 mm | 1035 mm | 1057 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 728 mm | 753 mm | 779 mm | 805 mm | 832 mm | 858 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
Zig Zag 105 is part of the Allcity Zig model. 11 bikes variations carry this model name so far. You can easily view all of the Allcity Zig bikes models from 2022, here.
Model range prices
The most economical model, the All-City Zig Zag 105 2022 has a starting price of 2899$. All-City Zig Zag Ultegra 2022 on the other hand is the most expensive at 3999$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Endurance bikes
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2022 and its price was 2899$. In conclusion, this bike price is 23.57% higher than the price of the average Endurance bike.
Zig Zag 105 components
Wheels size
As for the wheels, All-City Zig Zag 105 2022, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. All-City Zig Zag 105 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
