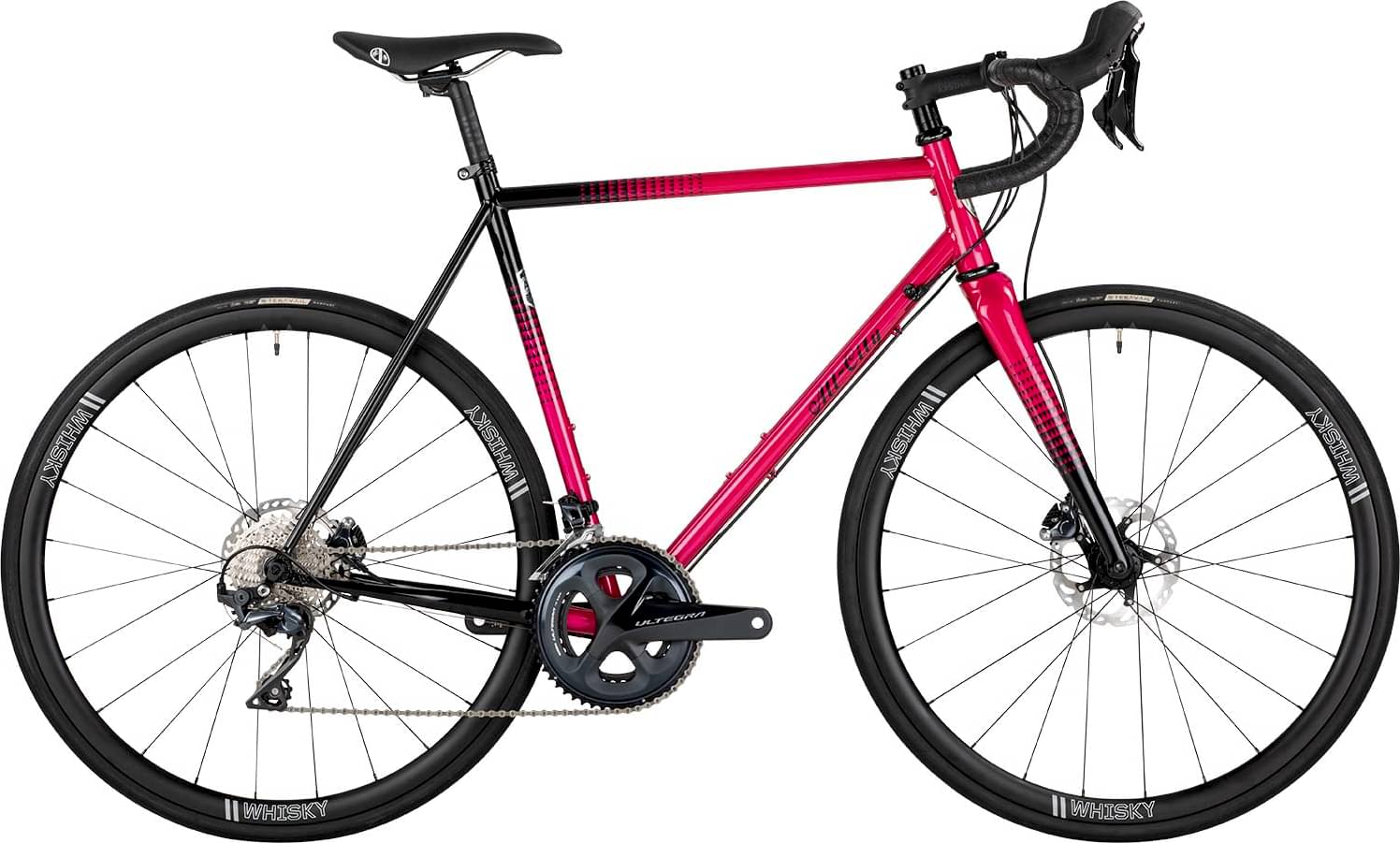

All City All-City Zig Zag Ultegra 2023
2023 Road
Estimate price |
3,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
All-City A.C.E. Air-Hardened, Custom, Extruded steel
Suspension Fork
Whisky No.9 RD+ Thru-Axle Tapered
Drivetrain
Rear Derailleur
Shimano Ultegra R8000
Front Derailleur
Shimano Ultegra R8000
Shift Levers
Shimano Ultegra R8000
Cassette
Shimano R7000 11-32
Crank
Shimano Ultegra R8000 52-36
Bottom Bracket
Shimano RS500
Chain
Shimano HG601
Wheels
Front Hub
All-City Go-Devil 24h
Rear Hub
All-City Go-Devil 24h
Rims
Whisky No.9 30mm Carbon 24h
Tires
Teravail Rampart 700x28 60tpi Light and Supple
Brakes
Brakes
Shimano Ultegra R8000 Hydro
Brake Levers
Shimano Ultegra R8000 Hydro
Cockpit
Stem
Whisky No.7 Black Alloy Stem; ±6° Rise
Handlebar
Whisky No.7 Black 6° Flair Drop Bar
Headset
Cane Creek 40 Series
Seat
Saddle
Black with Chromo Rails
Seatpost
Whisky No.7 Black Alloy Seat Post
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 49cm | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.44 mm | 1.47 mm | 1.51 mm | 1.53 mm | 1.53 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 598 mm | 602 mm | 606 mm | 614 mm | 633 mm | 655 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 69 mm | 58 mm | 51 mm | 55 mm | 47 mm | 47 mm |
| Stack | 516 mm | 532 mm | 554 mm | 575 mm | 599 mm | 623 mm |
| Reach | 367 mm | 369 mm | 376 mm | 381 mm | 392 mm | 407 mm |
| Top Tube Length | 512 mm | 522 mm | 537 mm | 552 mm | 572 mm | 597 mm |
| Seat Tube Angle | 75.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 490 mm | 520 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 70 ° | 71 ° | 72 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 106 mm | 121 mm | 140 mm | 160.5 mm | 185.5 mm | 210.5 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 412 mm | 412 mm |
| Wheelbase | 995 mm | 998 mm | 1003 mm | 1011 mm | 1035 mm | 1057 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 728 mm | 753 mm | 779 mm | 805 mm | 832 mm | 858 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
Zig Zag Ultegra completes the Allcity Zig model. All-City launched 11 bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
All-City Zig Zag 105 2023 is the most economical model, with a starting price of 2899$. All-City Zig Zag Ultegra 2023 on the other hand costs 3999$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Endurance bikes
If you want to purchase a solid Endurance bike, it is important to know that the average cost is 2346$. However, you could also get a good Endurance bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When All-City released this model in 2023, its price was 3999$. Doing a quick comparison, we notice that Zig Zag Ultegra price is 70.46% more expensive than the average cost of an Endurance bike.
Overview of components
Wheels size
The wheels on Zig Zag Ultegra are the 700c carbon type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
