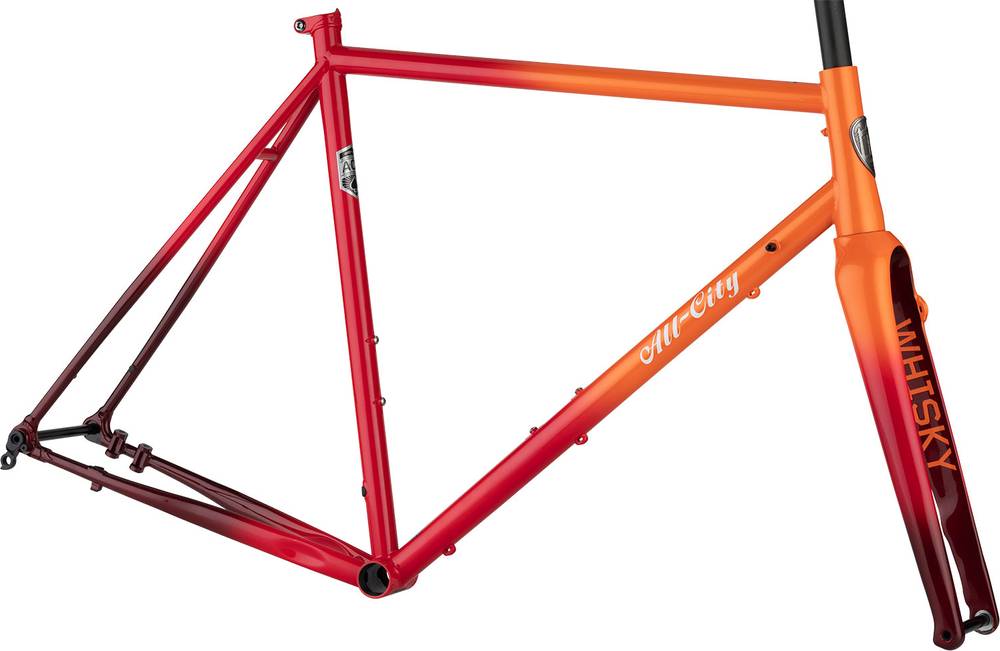

All City Zig Zag Ultegra – Frameset 2019
2019 Road
Estimate price |
1,299$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Steel -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
All-City A.C.E. Air-Hardened, Custom, Extruded steel frame, Custom tapered headtube with external headset
Suspension Fork
Whisky No.9 thru-axle, carbon blades, tapered carbon steerer tube, Post Mount Disc Brake mount
Drivetrain
Bottom Bracket
68mm English
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 49cm | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.44 mm | 1.47 mm | 1.51 mm | 1.53 mm | 1.53 mm |
| Bottom Bracket Height | 269 mm | 269 mm | 270 mm | 270 mm | 271 mm | 271 mm |
| Front Center | 598 mm | 601 mm | 605 mm | 613 mm | 632 mm | 654 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 71 mm | 60 mm | 53 mm | 58 mm | 49 mm | 49 mm |
| Stack | 516 mm | 532 mm | 554 mm | 575 mm | 599 mm | 623 mm |
| Reach | 367 mm | 369 mm | 376 mm | 381 mm | 392 mm | 407 mm |
| Top Tube Length | 512 mm | 522 mm | 537 mm | 552 mm | 572 mm | 597 mm |
| Seat Tube Angle | 75.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 490 mm | 520 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 70 ° | 71 ° | 72 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 110 mm | 120 mm | 135 mm | 155 mm | 180 mm | 200 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 412 mm | 412 mm |
| Wheelbase | 995 mm | 998 mm | 1003 mm | 1011 mm | 1035 mm | 1057 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 66 mm | 66 mm | 65 mm | 65 mm |
| Standover Height | 728 mm | 753 mm | 779 mm | 805 mm | 832 mm | 858 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
Zig Zag Ultegra – Frameset is part of the Allcity Zig model. All City released 11 frames variations of this model so far. You can easily view all of the Allcity Zig frames models from 2019, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Endurance frames average price
If you want to purchase a solid Endurance frame, it is important to know that the average cost is 1905$. However, you could also get a good Endurance frame even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2019 for 1299$. In conclusion, this frame price is 46.65% smaller than the price of the average Endurance frame.
Overview of components
Fork material
The fork on this frame is made out of carbon, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
