Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ekar -
Suspension Rigid -
Drivetrain 1 × 13 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Rear Derailleur
Campagnolo Ekar
Front Derailleur
N/A
Shift Levers
Campagnolo Ekar Ergopower
Cassette
Campagnolo Ekar 13SPD 10-44T
Crank
Campagnolo Ekar 38T
Bottom Bracket
Campagnolo Pro-Tech Threaded
Chain
Campagnolo Ekar E13
Wheels
Rims
Industry Nine UL250 CX Alloy - Campy
Tires
WTB Resolute SG2 700x42 Black
Brakes
Brakes
Campagnolo Ekar Flat Mount Calipers
Cockpit
Stem
FSA Energy
Handlebar
FSA K-Force Compact
Seat
Saddle
Ergon SR10 Comp Men's Saddle
Seatpost
FSA SL-K Carbon Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.46 mm | 1.48 mm | 1.51 mm | 1.52 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 599 mm | 609 mm | 619 mm | 630 mm | 645 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 77 mm | 65 mm | 66 mm | 72 mm | 72 mm |
| Stack | 535 mm | 561 mm | 577 mm | 599 mm | 617 mm |
| Reach | 378 mm | 384 mm | 389 mm | 398 mm | 407 mm |
| Top Tube Length | 533 mm | 546 mm | 555 mm | 578 mm | 593 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 73.25 ° | 73.25 ° |
| Seat Tube Length | 470 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 120 mm | 143 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1011 mm | 1021 mm | 1031 mm | 1042 mm | 1057 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 752 mm | 782 mm | 802 mm | 822 mm | 842 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

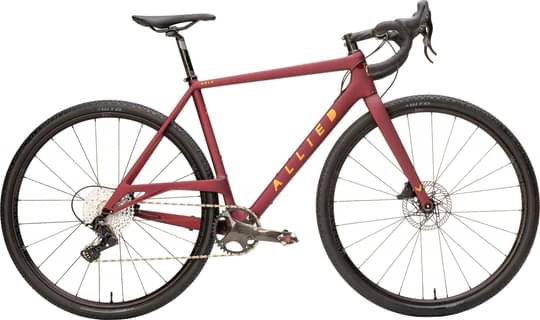

ABLE Ekar is part of the Allied Able model. 28 bikes variations carry this model name so far. Take a sneak peek at all Allied Able bikes models from 2021, by clicking here.
Model range prices
Allied ABLE GRX 810 2021 is the most economical model, with a starting price of 6320$. Allied ABLE Red AXS 2021 on the other hand costs 10155$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel bikes average price
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Allied released this model in 2021, its price was 7610$. Doing a quick comparison, we notice that ABLE Ekar price is 209.1% higher than the average cost of a Gravel bike.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When it comes to wheels, the ABLE Ekar bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Allied ABLE Ekar is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Allied ABLE Ekar bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
