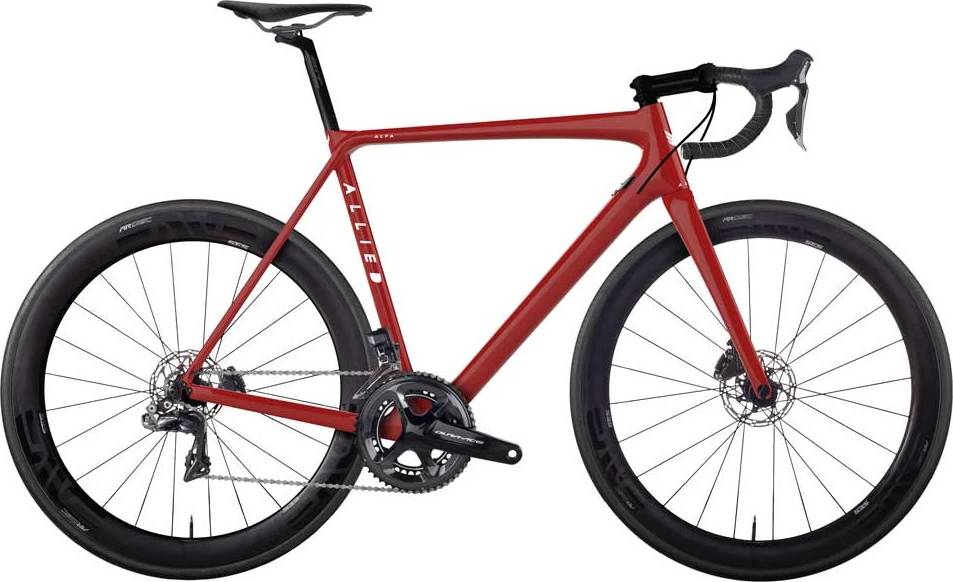

Allied ALFA DISC Shimano Dura Ace Di2 2020
2020 Road
Estimate price |
8,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
49cm
155cm - 163cm
49cm
155cm - 163cm
52cm
161cm - 169cm
52cm
161cm - 169cm
54cm
166cm - 175cm
54cm
166cm - 175cm
56cm
172cm - 181cm
56cm
172cm - 181cm
58cm
178cm - 186cm
58cm
178cm - 186cm
61cm
183cm - 191cm
61cm
183cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
carbon
Drivetrain
Rear Derailleur
DURA-ACE 9070
Front Derailleur
DURA-ACE 9070
Shift Levers
DURA-ACE 9070
Cassette
11-28
Crank
DURA-ACE 9100 53x39
Chain
DURA-ACE 9070
Wheels
Rims
MAVIC COSMIC UST
Cockpit
Stem
ZIPP SERVICE COURSE
Handlebar
ZIPP SERVICE COURSE
Seat
Saddle
Fabric Scoop
Seatpost
ZIPP SERVICE COURSE
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 49cm | 52cm | 52cm | 54cm | 54cm | 56cm | 56cm | 58cm | 58cm | 61cm | 61cm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.31 mm | 1.39 mm | 1.36 mm | 1.43 mm | 1.39 mm | 1.47 mm | 1.42 mm | 1.49 mm | 1.46 mm | 1.53 mm | 1.49 mm | 1.56 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 264 mm | 267 mm | 267 mm | 267 mm | 267 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 570 mm | 570 mm | 575 mm | 575 mm | 581 mm | 581 mm | 592 mm | 592 mm | 607 mm | 607 mm | 614 mm | 614 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 62 mm | 62 mm | 58 mm | 59 mm | 60 mm | 59 mm | 55 mm | 55 mm | 55 mm | 55 mm | 51 mm | 51 mm |
| Stack | 498 mm | 517 mm | 520 mm | 539 mm | 536 mm | 556 mm | 557 mm | 577 mm | 585 mm | 604 mm | 605 mm | 625 mm |
| Reach | 379 mm | 373 mm | 383 mm | 378 mm | 386 mm | 379 mm | 393 mm | 388 mm | 401 mm | 395 mm | 407 mm | 401 mm |
| Top Tube Length | 510 mm | 510 mm | 534 mm | 534 mm | 545 mm | 545 mm | 562 mm | 562 mm | 580 mm | 580 mm | 598 mm | 598 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73.25 ° | 73.25 ° | 73 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 482 mm | 482 mm | 512 mm | 512 mm | 532 mm | 532 mm | 552 mm | 552 mm | 572 mm | 572 mm | 602 mm | 602 mm |
| Head Tube Angle | 72.25 ° | 72.25 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 74 ° | 74 ° |
| Head Tube Length | 97 mm | 117 mm | 117 mm | 137 mm | 137 mm | 157 mm | 157 mm | 177 mm | 187 mm | 207 mm | 207 mm | 227 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 966 mm | 966 mm | 971 mm | 971 mm | 978 mm | 978 mm | 989 mm | 989 mm | 1005 mm | 1005 mm | 1012 mm | 1012 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 71 mm | 71 mm | 69 mm | 69 mm | 69 mm | 69 mm | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 747 mm | 747 mm | 772 mm | 772 mm | 788 mm | 788 mm | 812 mm | 812 mm | 836 mm | 836 mm | mm | mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 155 cm | 161 cm | 161 cm | 166 cm | 166 cm | 172 cm | 172 cm | 178 cm | 178 cm | 183 cm | 183 cm |
| Rider Max Height | 163 cm | 163 cm | 169 cm | 169 cm | 175 cm | 175 cm | 181 cm | 181 cm | 186 cm | 186 cm | 191 cm | 191 cm |
Model Overview
ALFA DISC Shimano Dura Ace Di2 completes the Allied Alfa model. Allied launched 38 bikes of this model so far. Take a sneak peek at all Allied Alfa bikes models from 2020, by clicking here.
Model range prices
Allied ALFA SHIMANO ULTEGRA 2020 is the most affordable bike of this model and has a price of 4999$. On the other hand, Allied ALFA DISC SRAM RED AXS 2020, is the most expensive and costs 8999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Endurance bikes average price
According to our calculations, the average cost of an Endurance bike that is reliable is 2346$. However, you could also get a good Endurance bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Allied ALFA DISC Shimano Dura Ace Di2 price was 8999$. Doing a quick comparison, we notice that ALFA DISC Shimano Dura Ace Di2 price is 283.59% higher than the average cost of an Endurance bike.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The ALFA DISC Shimano Dura Ace Di2 2020 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The ALFA DISC Shimano Dura Ace Di2 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 12 sizes. They vary from 155 cm – 191 cm (5.09 ft – 6.27 ft). In conclusion, finding one for you shouldn’t be a problem.
