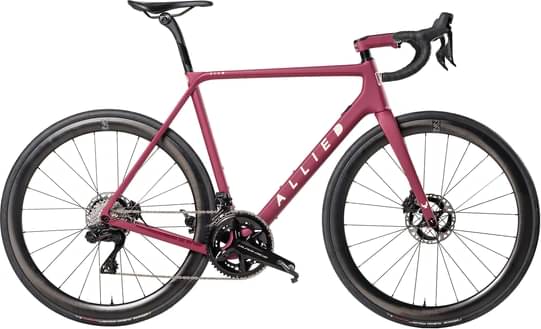

Allied Allroad Dura-Ace R9200 Di2 2022
2022 Road
Estimate price |
11,470$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Rear Derailleur
Shimano Dura-Ace RD-R9250 Di2
Front Derailleur
Shimano Dura-Ace FD-R9250 Di2
Shift Levers
Shimano Dura-Ace ST-R9270 Di2
Cassette
Shimano Dura-Ace CS-R9200 11-34 12spd
Crank
Shimano Dura-Ace FC-R9200 50/34
Bottom Bracket
Shimano Dura-Ace BB-R9100 68mm Threaded
Chain
Shimano XTR CN-M9100
Wheels
Rims
Industry Nine I9.35 Carbon
Tires
Vittoria Corsa Control TLR 700x30
Brakes
Brakes
Shimano Dura-Ace BR-9270 Flatmount Disc
Cockpit
Stem
ALLIED ECHO
Handlebar
Black Inc. Carbon Fiber Road
Seat
Saddle
Ergon SR Pro S/M Men's
Seatpost
Black Inc. Carbon Fiber Road
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.4 mm | 1.43 mm | 1.46 mm | 1.49 mm | 1.53 mm |
| Bottom Bracket Height | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm |
| Front Center | 562 mm | 576 mm | 580 mm | 593 mm | 609 mm | 624 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 64 mm | 64 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Stack | 507 mm | 522 mm | 542 mm | 562 mm | 587 mm | 612 mm |
| Reach | 364 mm | 373 mm | 379 mm | 386 mm | 394 mm | 401 mm |
| Top Tube Length | 486.5 mm | 509 mm | 529.5 mm | 542.5 mm | 556 mm | 572 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 460 mm | 510 mm | 530 mm | 550 mm | 570 mm | 600 mm |
| Head Tube Angle | 72 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 107 mm | 123 mm | 140 mm | 161 mm | 188 mm | 214 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 963 mm | 977 mm | 980 mm | 993 mm | 1009 mm | 1024 mm |
| Bottom Bracket Drop | 77 mm | 77 mm | 77 mm | 77 mm | 77 mm | 77 mm |
| Standover Height | 714 mm | 728 mm | 761 mm | 796 mm | 817 mm | 838 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
Allroad Dura-Ace R9200 Di2 completes the Allied Allroad model. There are 34 bikes that carry this model name. You can easily view all of the Allied Allroad bikes models from 2022, here.
Model range prices
Allied Allroad EX Rival AXS 2022 is the most affordable bike of this model and has a price of 5750$. On the other hand, Allied Allroad Dura-Ace R9200 Di2 2022, is the most expensive and costs 11470$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel bikes
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Allied released this model in 2022, its price was 11470$. If we compare this with the average Gravel bike cost we notice that the price is 365.88% higher.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When leaving the production line, the Allroad Dura-Ace R9200 Di2 model has 700c carbon wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Allied Allroad Dura-Ace R9200 Di2 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
