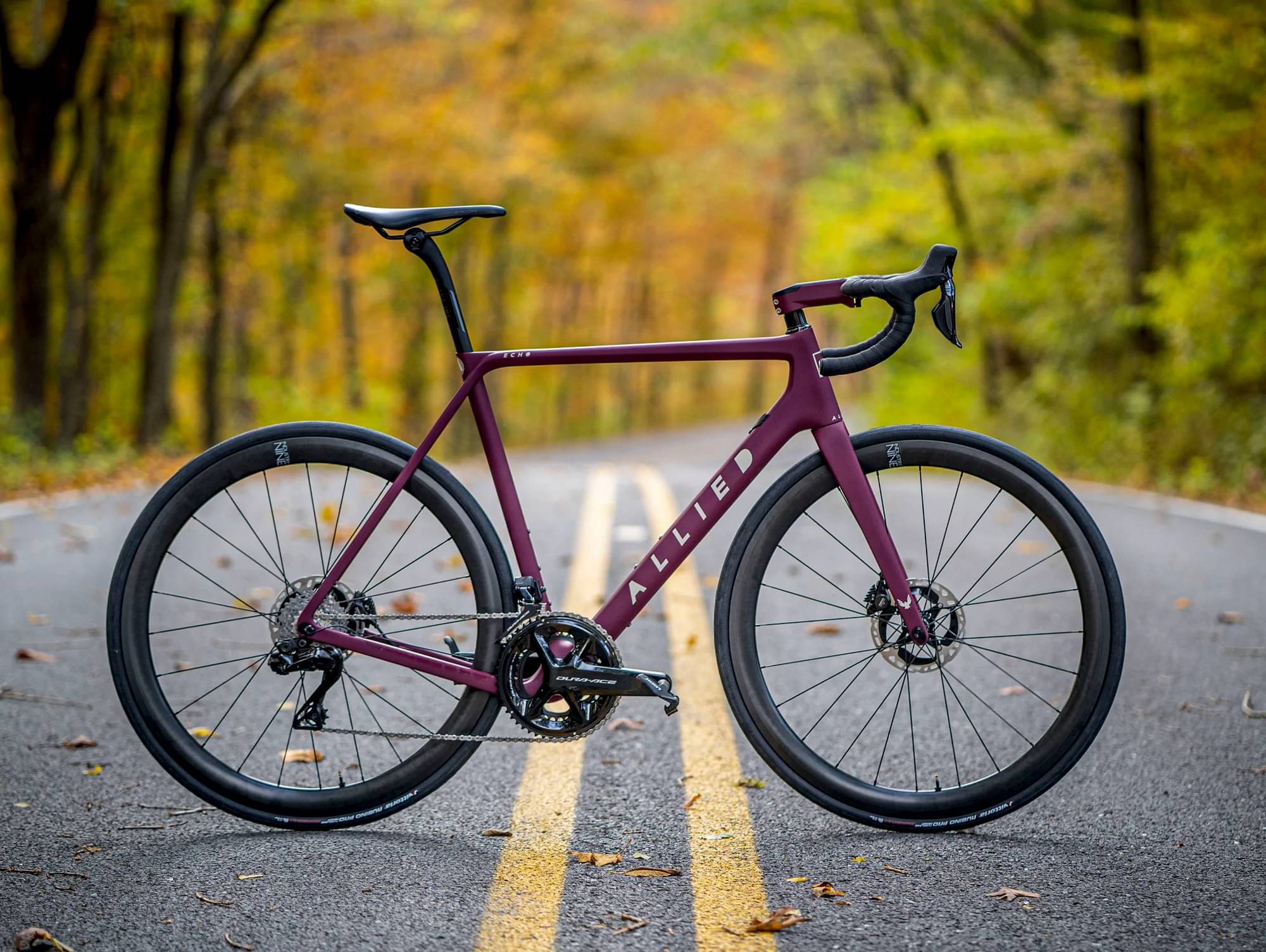

Allied Allroad Dura-Ace R9200 Di2 2023
2023 Road
Estimate price |
11,780$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

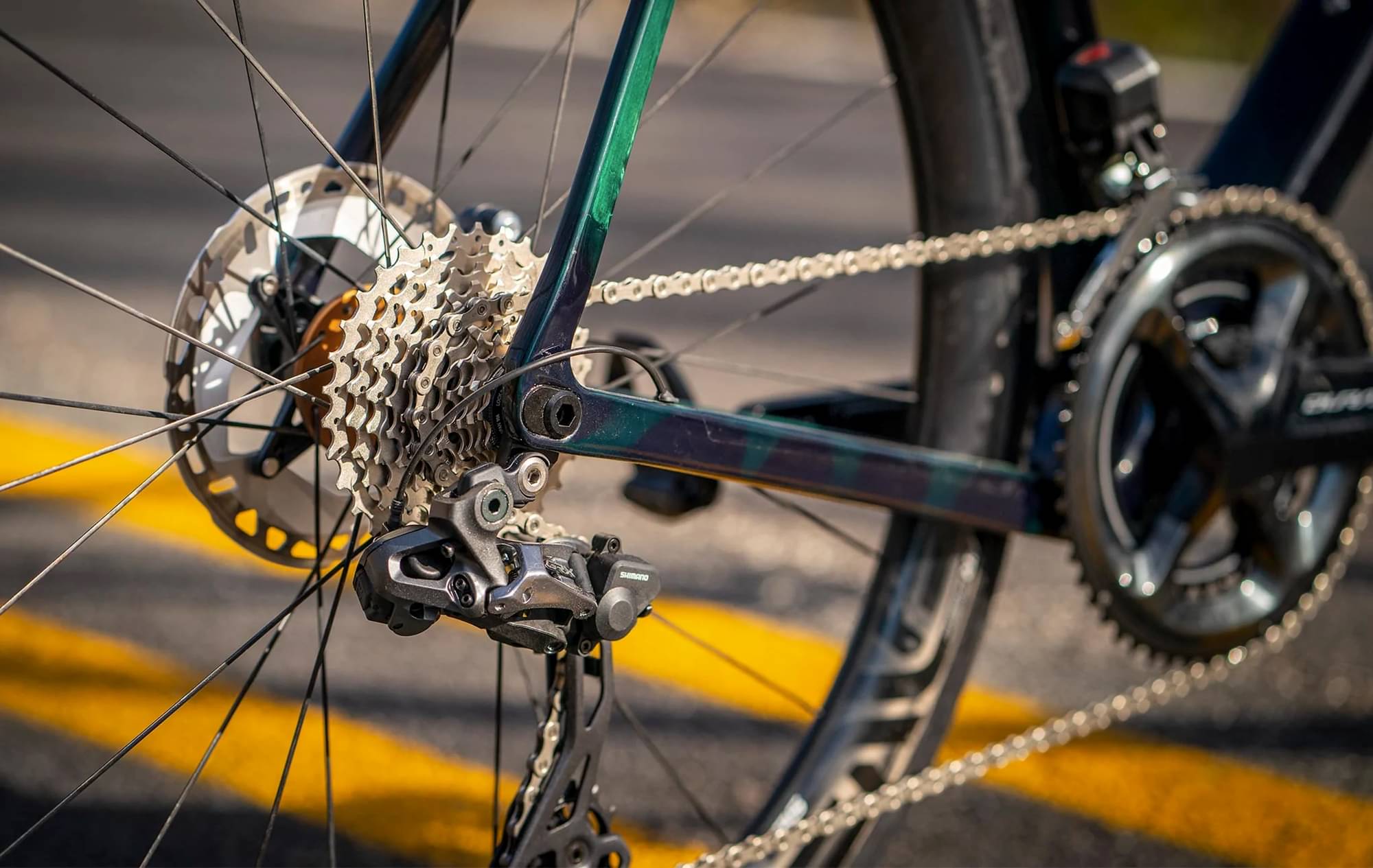

Drivetrain
Rear Derailleur
Shimano Dura-Ace RD-R9250 Di2
Front Derailleur
Shimano Dura-Ace FD-R9250 Di2
Shift Levers
Shimano Dura-Ace ST-R9270 Di2
Cassette
Shimano Dura-Ace CS-R9200 11-34 12spd
Crank
Shimano Dura-Ace FC-R9200 50/34
Bottom Bracket
Shimano Dura-Ace BB-R9100 68mm Threaded
Chain
Shimano XTR CN-M9100
Wheels
Rims
Zipp 303 Firecrest Tubeless Disc-Brake
Tires
Vittoria Corsa Control TLR 700x30
Brakes
Brakes
Shimano Dura-Ace BR-9270 Flatmount Disc
Cockpit
Stem
ALLIED ECHO
Handlebar
Black Inc. Carbon Fiber Road
Seat
Saddle
Selle Italia Novus Boost EVO Superflow
Seatpost
Black Inc. Carbon Fiber Road
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.4 mm | 1.43 mm | 1.46 mm | 1.49 mm | 1.53 mm |
| Bottom Bracket Height | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm |
| Front Center | 562 mm | 576 mm | 580 mm | 593 mm | 609 mm | 624 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 64 mm | 64 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Stack | 507 mm | 522 mm | 542 mm | 562 mm | 587 mm | 612 mm |
| Reach | 364 mm | 373 mm | 379 mm | 386 mm | 394 mm | 401 mm |
| Top Tube Length | 507 mm | 520 mm | 542 mm | 556 mm | 571 mm | 586 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 460 mm | 510 mm | 530 mm | 550 mm | 570 mm | 600 mm |
| Head Tube Angle | 72 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 107 mm | 123 mm | 140 mm | 161 mm | 188 mm | 214 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 963 mm | 977 mm | 980 mm | 993 mm | 1009 mm | 1024 mm |
| Bottom Bracket Drop | 77 mm | 77 mm | 77 mm | 77 mm | 77 mm | 77 mm |
| Standover Height | 714 mm | 728 mm | 761 mm | 796 mm | 817 mm | 838 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
Allroad Dura-Ace R9200 Di2 completes the Allied Allroad model. Allied launched 34 bikes of this model so far. Take a sneak peek at all Allied Allroad bikes models from 2023, by clicking here.
Model range prices
Allied Allroad Rival AXS 2023 is the most economical model, with a starting price of 6990$. Allied Allroad Dark Nebula Limited Edition 2023 on the other hand costs 14000$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel bikes
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 11780$. In conclusion, this bike price is 378.47% higher than the price of the average Gravel bike.
Allroad Dura-Ace R9200 Di2 components
Fork material
Allroad Dura-Ace R9200 Di2 has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When leaving the production line, the Allroad Dura-Ace R9200 Di2 model has 700c carbon wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Allroad Dura-Ace R9200 Di2 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
