Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force eTap -
Suspension Rigid -
Drivetrain Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Rear Derailleur
SRAM Force AXS
Front Derailleur
SRAM Force AXS
Shift Levers
SRAM Force AXS
Cassette
SRAM Force XG-1270-D1 10-33
Crank
SRAM Force AXS D1
Bottom Bracket
SRAM Dub Threaded 68mm
Chain
SRAM Force Flattop
Wheels
Rims
Industry Nine UL250 CX
Tires
WTB Vulpine SG2 700x40 Black
Brakes
Brakes
SRAM Force AXS Hydro
Cockpit
Stem
ALLIED ECHO
Handlebar
FSA K-Force Compact Carbon
Seat
Saddle
Ergon SR10 Tinox
Seatpost
FSA SL-K Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.4 mm | 1.43 mm | 1.46 mm | 1.49 mm | 1.53 mm |
| Bottom Bracket Height | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm |
| Front Center | 562 mm | 576 mm | 580 mm | 593 mm | 609 mm | 624 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 64 mm | 64 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Stack | 507 mm | 522 mm | 542 mm | 562 mm | 587 mm | 612 mm |
| Reach | 364 mm | 373 mm | 379 mm | 386 mm | 394 mm | 401 mm |
| Top Tube Length | 486.5 mm | 509 mm | 529.5 mm | 542.5 mm | 556 mm | 572 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 460 mm | 510 mm | 530 mm | 550 mm | 570 mm | 600 mm |
| Head Tube Angle | 72 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 107 mm | 123 mm | 140 mm | 161 mm | 188 mm | 214 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 963 mm | 977 mm | 980 mm | 993 mm | 1009 mm | 1024 mm |
| Bottom Bracket Drop | 77 mm | 77 mm | 77 mm | 77 mm | 77 mm | 77 mm |
| Standover Height | 714 mm | 728 mm | 761 mm | 796 mm | 817 mm | 838 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |

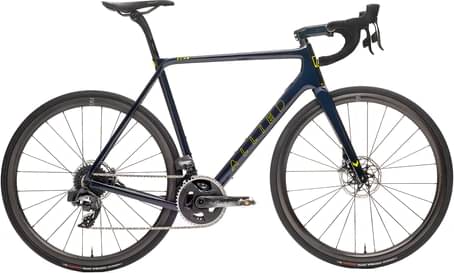

About this model
Allroad Force AXS is an Allied Allroad model. Allied launched 34 bikes of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Allied Allroad Rival AXS 2021 is the most affordable bike of this model and has a price of 6735$. On the other hand, Allied Allroad Dura-Ace R9200 Di2 2021, is the most expensive and costs 11470$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Gravel bikes average price
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2021 for 8230$. In conclusion, this bike price is 234.28% higher than the price of the average Gravel bike.
Allroad Force AXS components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When it comes to wheels, the Allroad Force AXS bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
