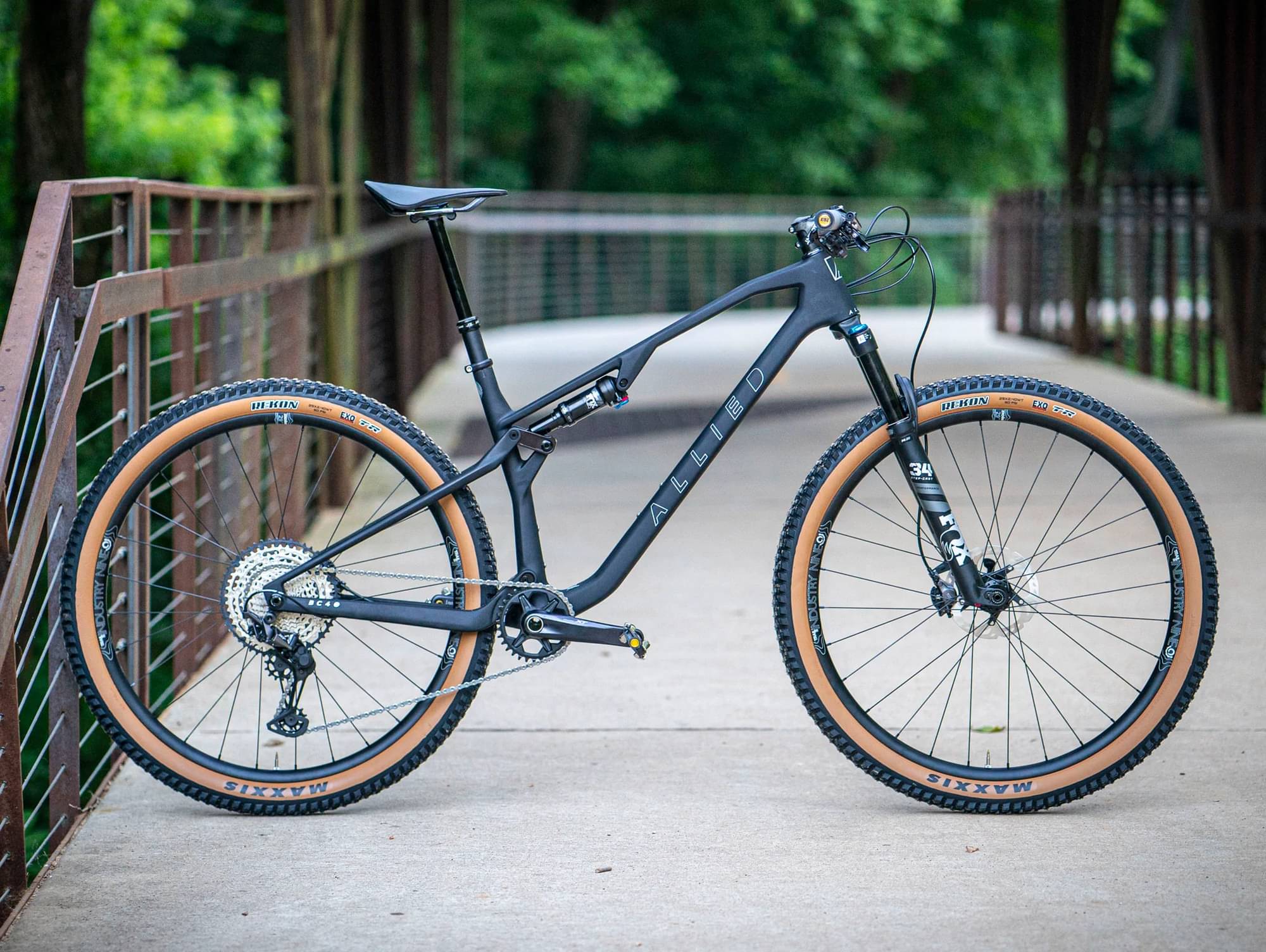

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Rear Derailleur
Shimano XT RD-M8100 12spd SGS
Front Derailleur
N/A
Shift Levers
Shimano XT SL-M8100-1-R 12spd
Cassette
Shimano XT CS-M8100 12spd 10-51
Crank
Shimano XT FC-M8100-1
Bottom Bracket
Shimano XT BB-MT8000 BSA
Chain
Shimano XT CN-M8100 12spd
Wheels
Rims
Industry Nine 1/1 Trail S Wheelset
Tires
MAXXIS Rekon 29x2.40 WT EXO/TR Tan Wall
Brakes
Brakes
Shimano XT BR-M8100 180mm/160mm
Cockpit
Stem
FSA Gradient
Handlebar
FSA SL-K MTB Carbon
Seat
Saddle
Selle Italia Novus Boost
Seatpost
Fox Transfer Performance 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.37 mm | 1.31 mm | 1.27 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 710 mm | 739 mm | 775 mm | 806 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 114 mm | 115 mm | 114 mm | 114 mm |
| Stack | 593 mm | 604 mm | 617 mm | 628 mm |
| Reach | 415 mm | 440 mm | 470 mm | 496 mm |
| Top Tube Length | 564 mm | 591 mm | 625 mm | 654 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 395 mm | 420 mm | 450 mm | 500 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 95 mm | 105 mm | 120 mm | 135 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1140 mm | 1169 mm | 1205 mm | 1236 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
BC40 XT M8100 belongs to the Allied Bc40 model. Allied launched 28 bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Allied BC40 XT M8100 2022 is the most affordable bike of this model and has a price of 7225$. On the other hand, Allied BC40 Payson’s Limited Edition BC40 2022, is the most expensive and costs 14000$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Allied released this model in 2022, its price was 7225$. Comparing the average cost of a Trail bike to this one, you will see that BC40 XT M8100 price is 161.59% more expensive.
Overview of components

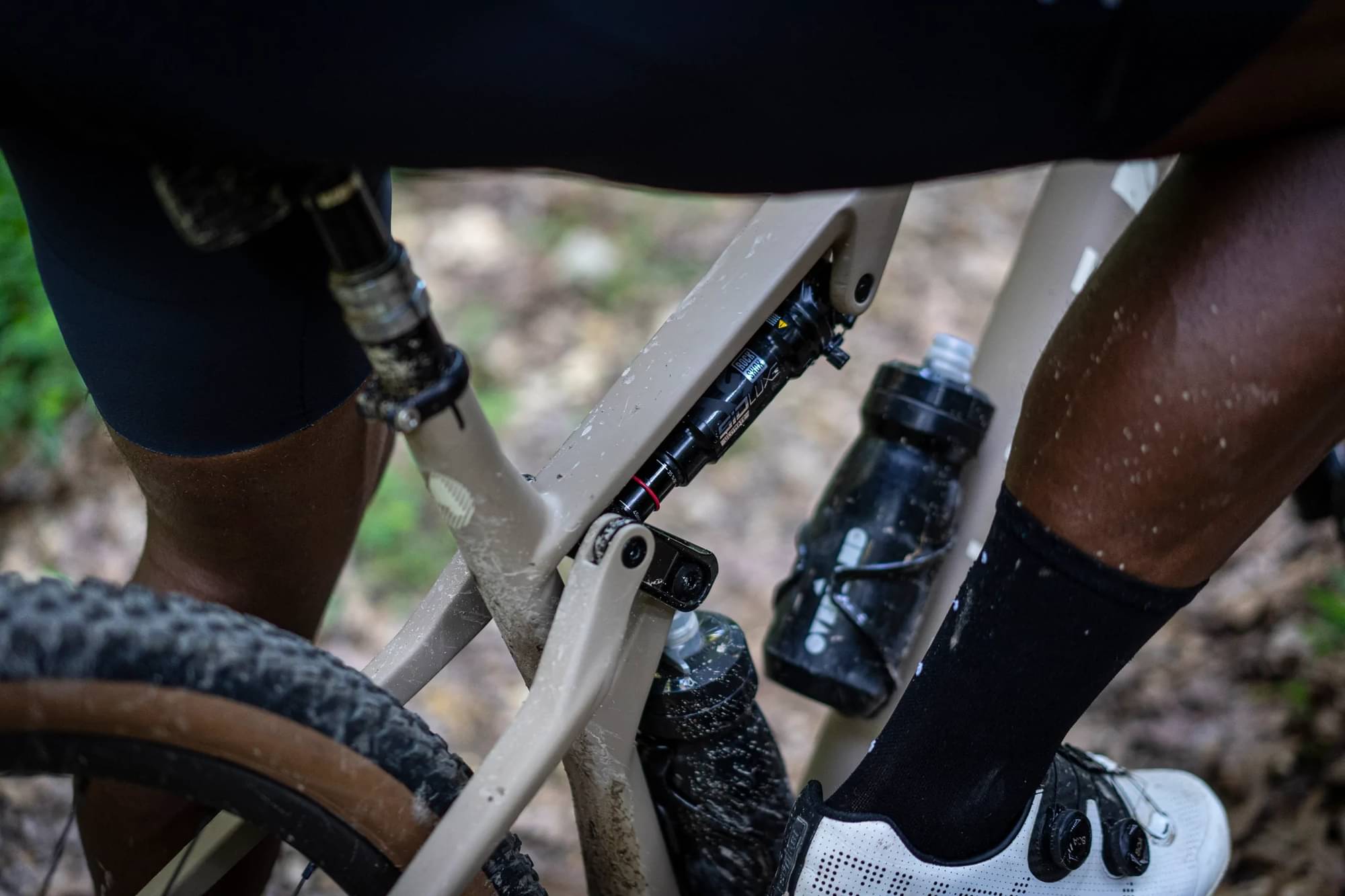

Rear Shock
Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
As for the wheels, Allied BC40 XT M8100 2022, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Allied BC40 XT M8100 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
BC40 XT M8100 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Allied BC40 XT M8100 includes a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
