Allied BC40 XX SL Eagle AXS Transmission 2023
2023 Mountain
Estimate price |
12,685$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork RockShox SID Ultimate
-
Groupset XX SL Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Rock Shox SID Ultimate RL
Drivetrain
Rear Derailleur
SRAM XX SL Eagle Transmission
Front Derailleur
N/A
Shift Levers
SRAM AXS Pod Ultimate
Cassette
SRAM 1299 XX SL Eagle 10-52
Crank
SRAM XX SL Eagle Transmission
Bottom Bracket
SRAM Dub 73 BSA
Chain
SRAM XX T-TYPE Flat Top
Wheels
Rims
Industry Nine UL 280 CARBON
Tires
MAXXIS Rekon 29x2.40 WT EXO/TR Tan Wall
Brakes
Brakes
SRAM Level Ultimate Stealth 4 Piston 180 Front / 160 Rear
Cockpit
Stem
Industry Nine A318
Handlebar
FSA KFX Carbon
Seat
Saddle
Selle Italia Novus Boost Superflow
Seatpost
Rock Shox Reverb AXS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.37 mm | 1.31 mm | 1.27 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 710 mm | 739 mm | 775 mm | 806 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 114 mm | 115 mm | 114 mm | 114 mm |
| Stack | 593 mm | 604 mm | 617 mm | 628 mm |
| Reach | 415 mm | 440 mm | 470 mm | 496 mm |
| Top Tube Length | 564 mm | 591 mm | 625 mm | 654 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 395 mm | 420 mm | 450 mm | 500 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 95 mm | 105 mm | 120 mm | 135 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1140 mm | 1169 mm | 1205 mm | 1236 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
BC40 XX SL Eagle AXS Transmission is part of the Allied Bc40 model. There are 28 bikes that carry this model name. Take a sneak peek at all Allied Bc40 bikes models from 2023, by clicking here.
Model range prices
Allied BC40 Shimano XT M8100 2023 is the cheapest bike model and costs 7580$. Allied BC40 XX SL Eagle AXS Transmission 2023 is the most expensive one and costs 12685$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Allied BC40 XX SL Eagle AXS Transmission price was 12685$. If we compare this with the average Trail bike cost we notice that the price is 359.27% more expensive.
Overview of components
Fork
This bike has the RockShox SID Ultimate fork installed. The fork’s travel is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.

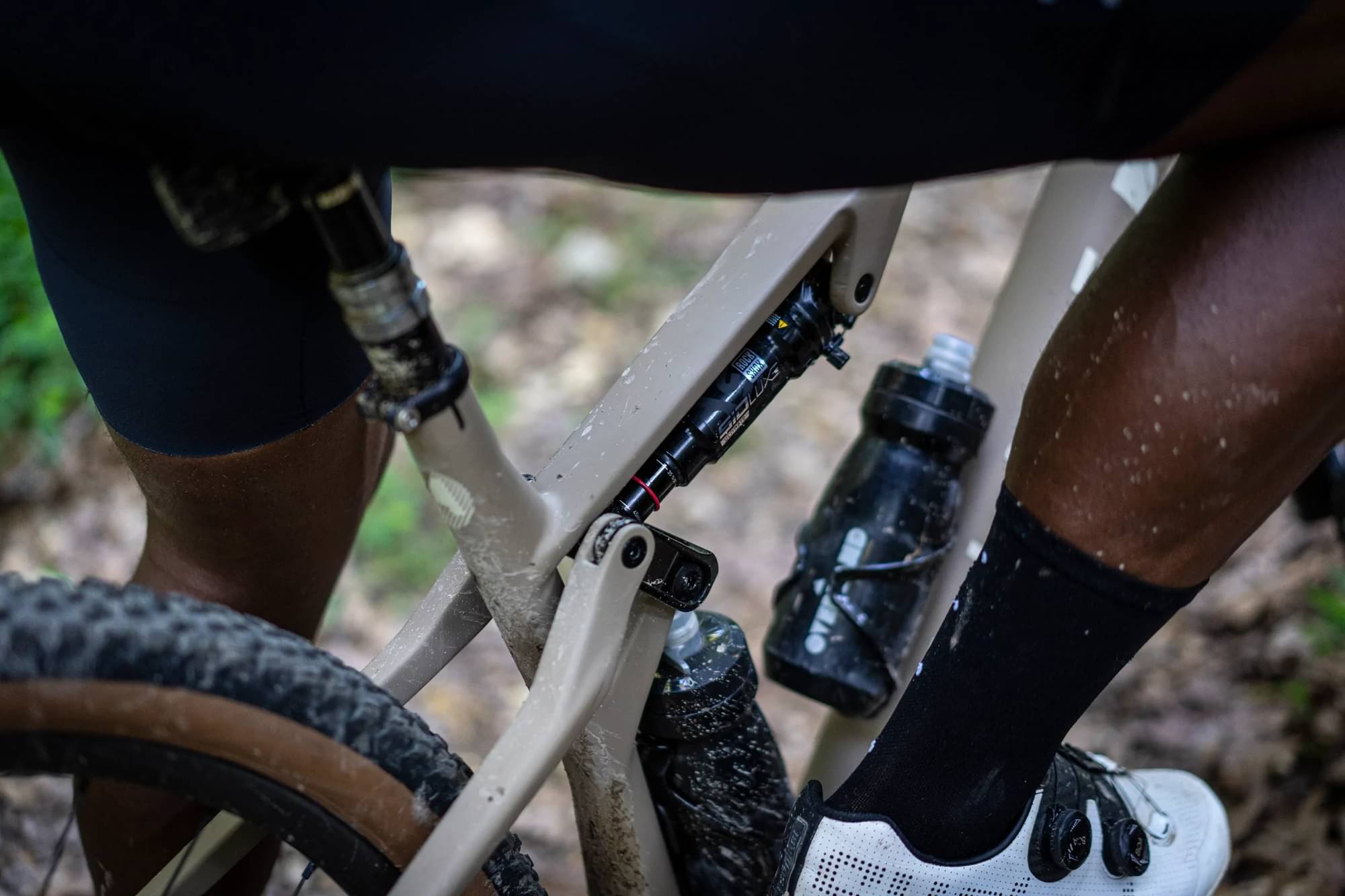

Rear Shock
Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When it comes to wheels, the BC40 XX SL Eagle AXS Transmission bike is equipped with the 29″ carbon model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The BC40 XX SL Eagle AXS Transmission comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Allied BC40 XX SL Eagle AXS Transmission includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
