Bike details
Overview
Key information split into simple groups.

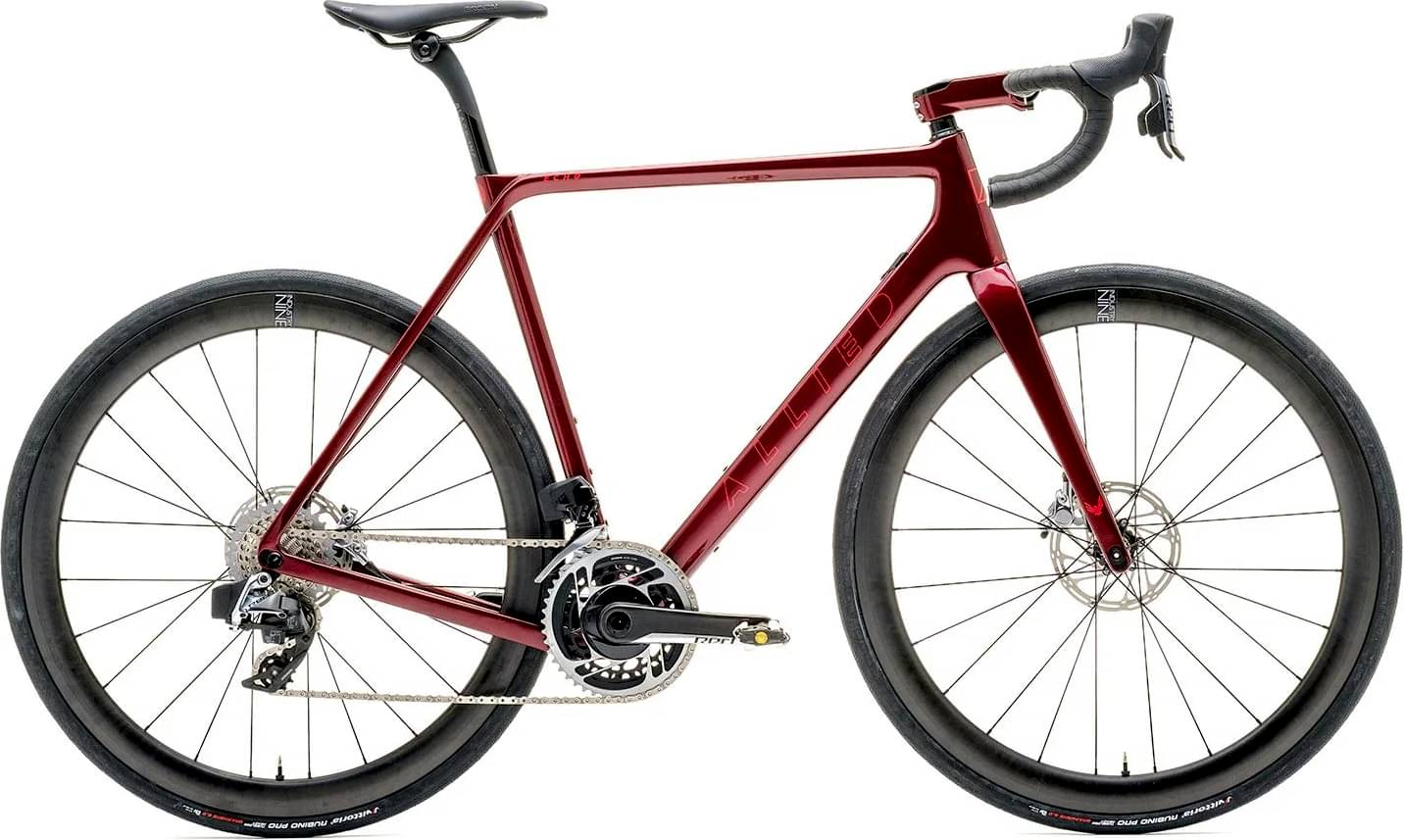

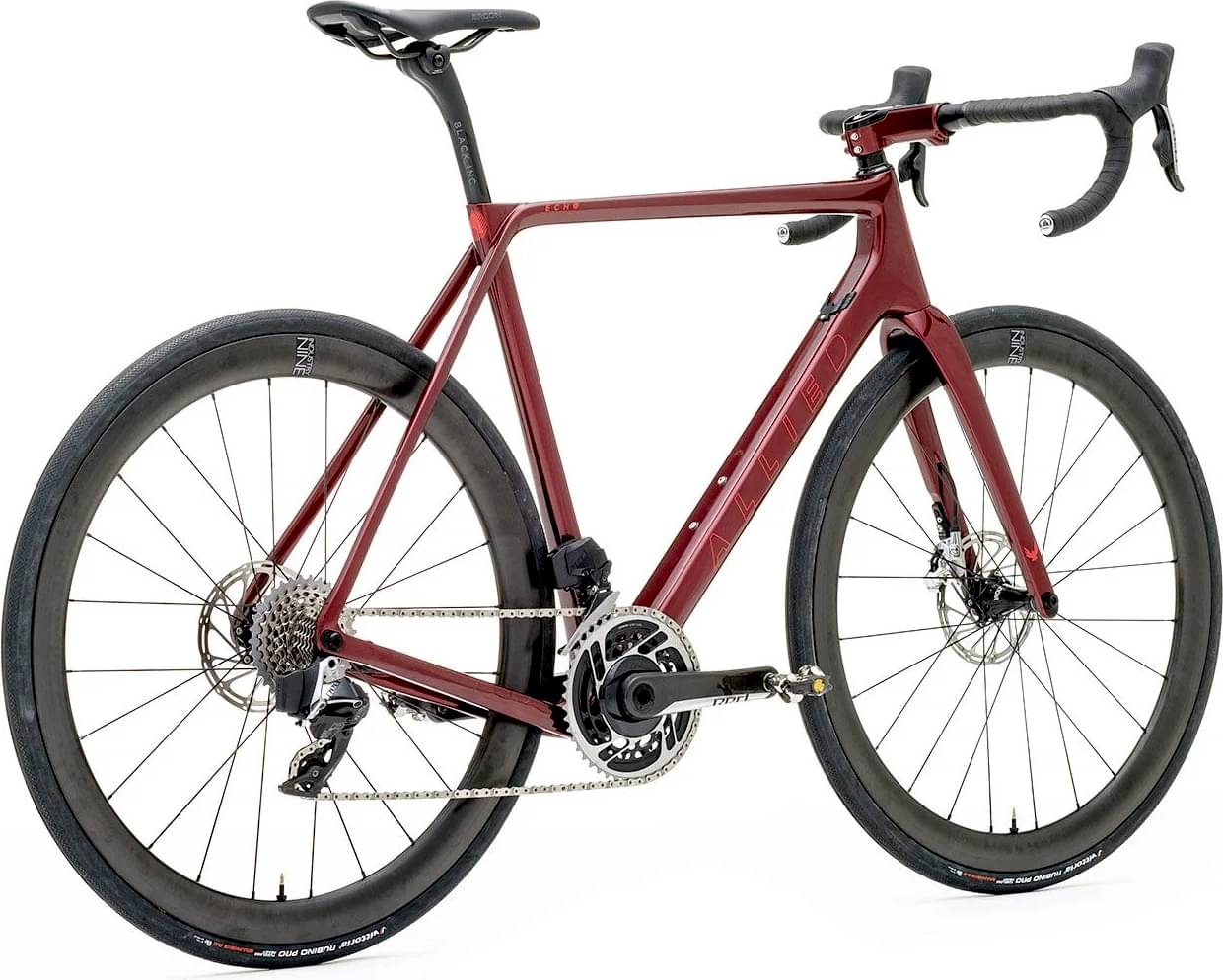

Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

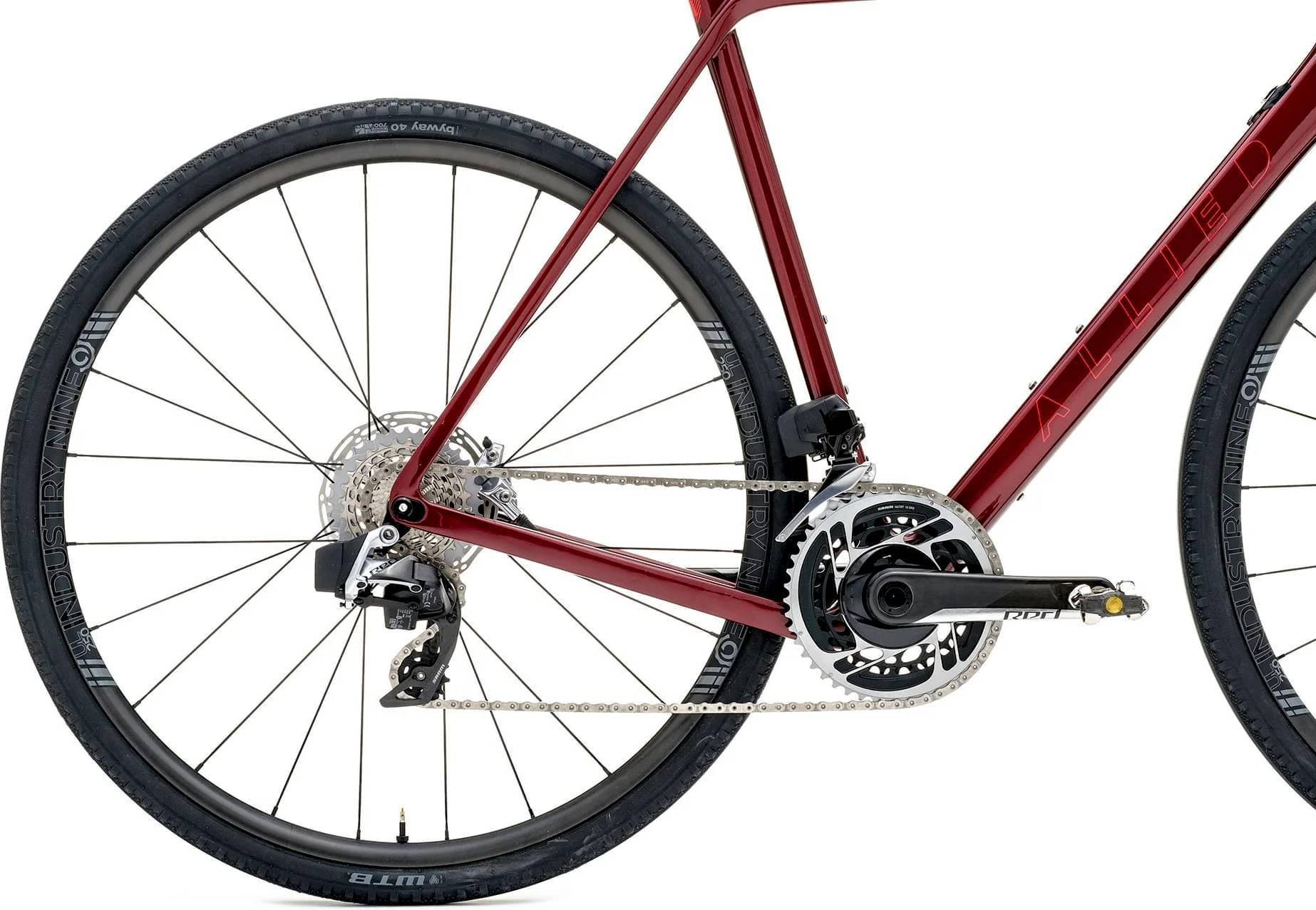

Drivetrain

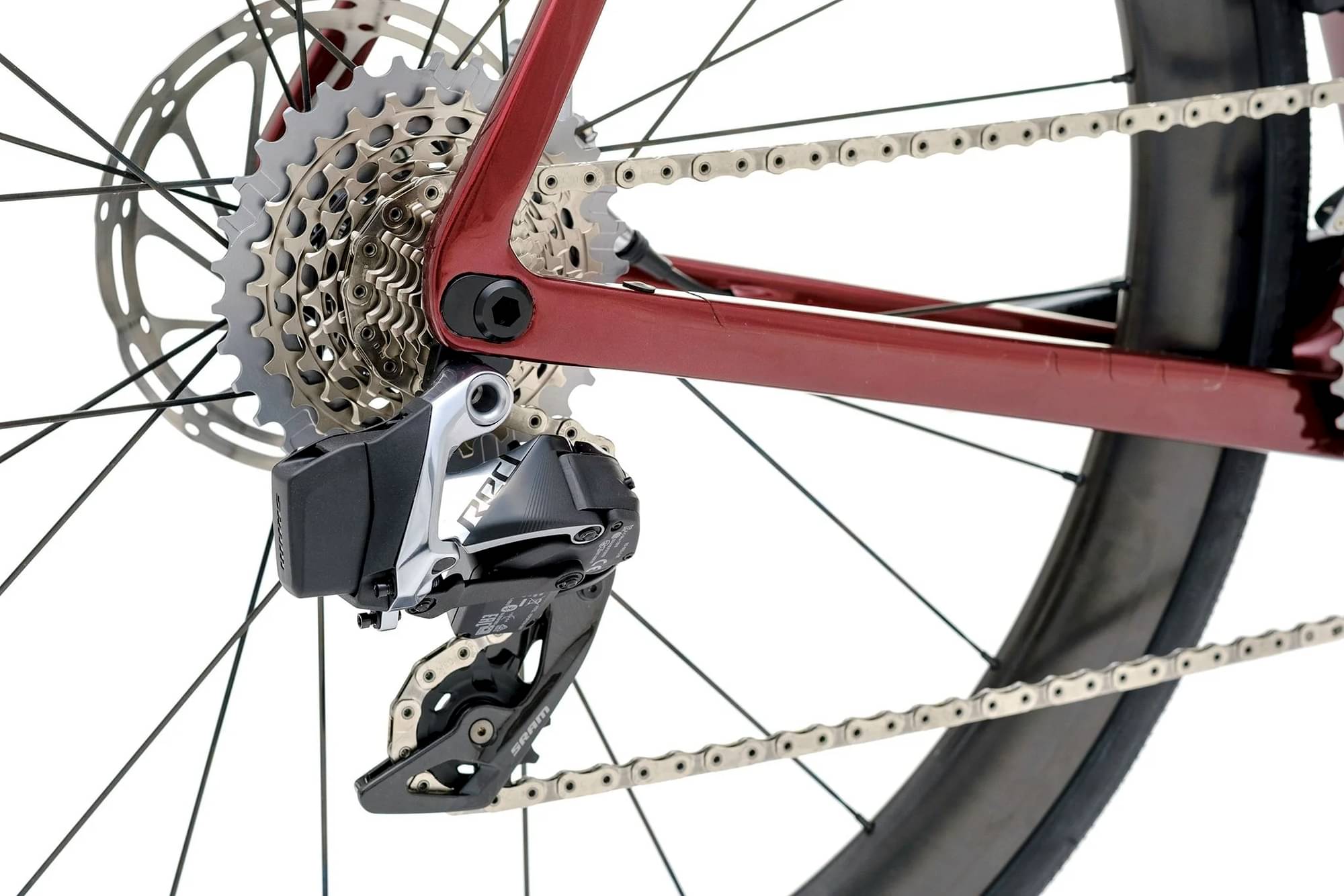

Rear Derailleur
SRAM Red AXS
Front Derailleur
SRAM Red AXS
Shift Levers
SRAM Red AXS
Cassette
SRAM Red XG-1290-D1 10-33
Crank
SRAM Red D1
Bottom Bracket
SRAM Dub Threaded 68mm
Chain
SRAM Red Flattop
Wheels
Rims
Zipp 303 Firecrest Tubeless Disc-Brake
Tires
Vittoria Corsa Control TLR 700x30
Brakes

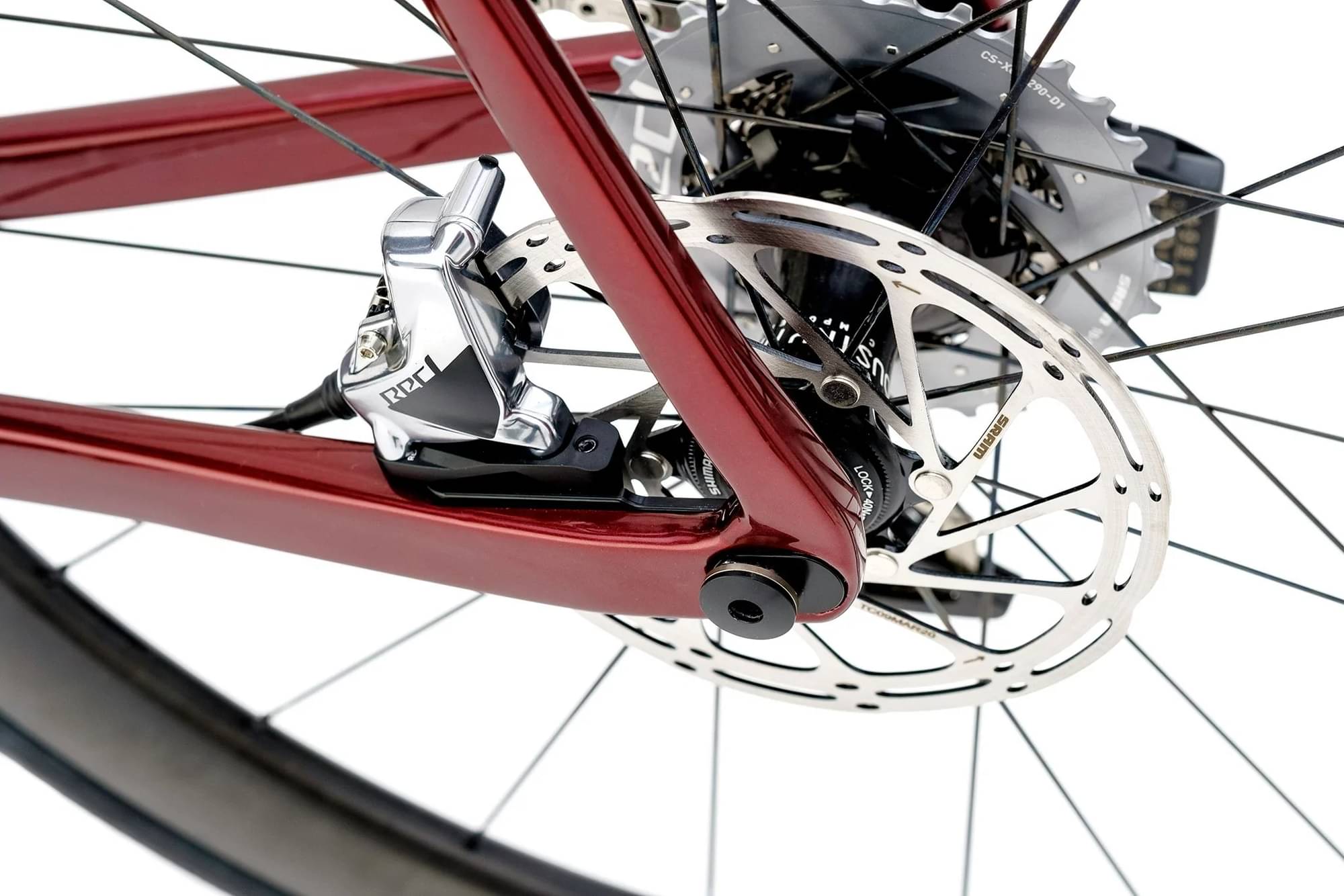

Brakes
SRAM Red AXS Hydro

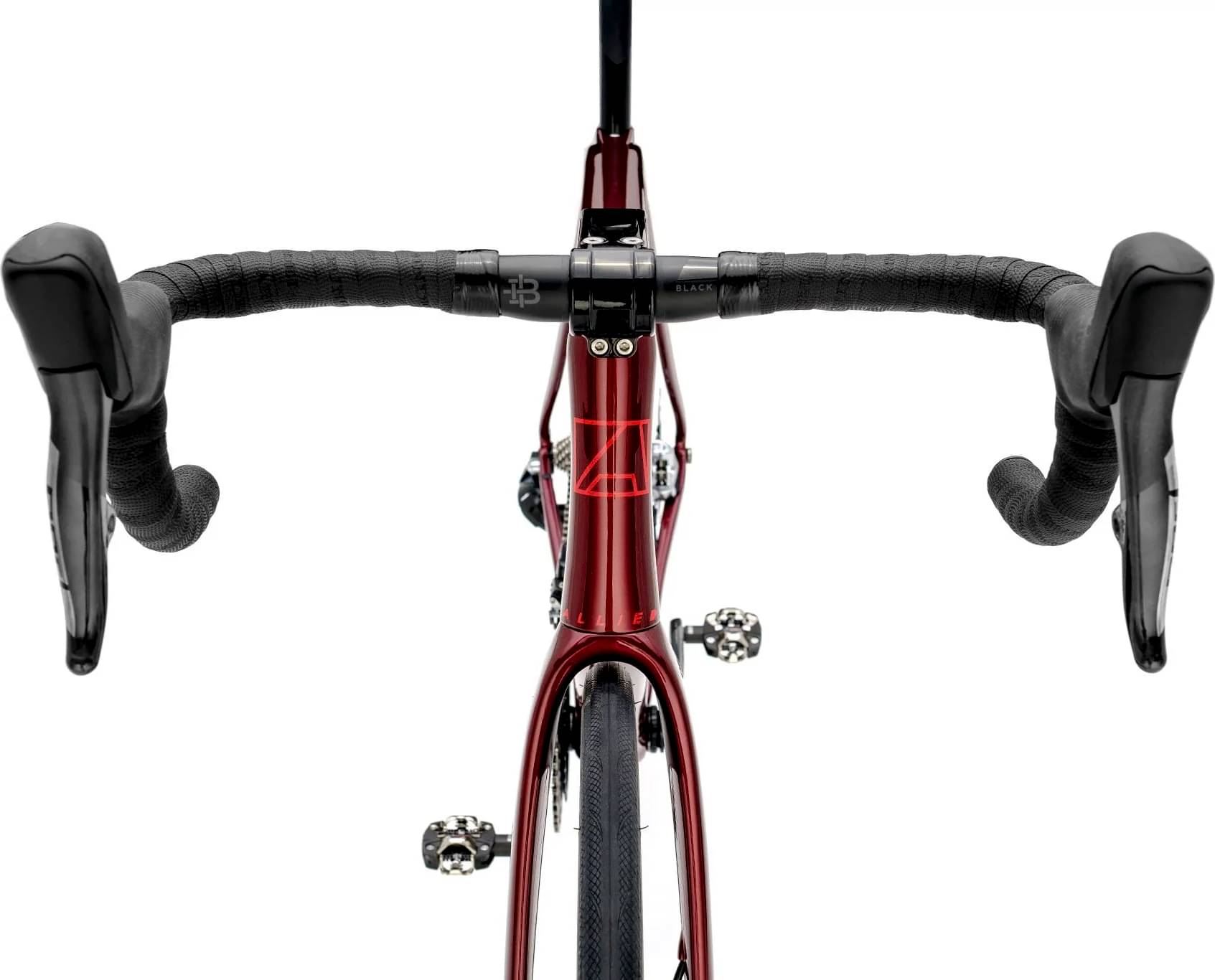

Cockpit
Stem
ALLIED ECHO
Handlebar
Black Inc Carbon Road
Seat
Saddle
Selle Italia Novus Boost EVO Superflow
Seatpost
Black Inc Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.4 mm | 1.43 mm | 1.46 mm | 1.49 mm | 1.53 mm |
| Bottom Bracket Height | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm |
| Front Center | 562 mm | 576 mm | 580 mm | 593 mm | 609 mm | 624 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 64 mm | 64 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Stack | 507 mm | 522 mm | 542 mm | 562 mm | 587 mm | 612 mm |
| Reach | 364 mm | 373 mm | 379 mm | 386 mm | 394 mm | 401 mm |
| Top Tube Length | 507 mm | 520 mm | 542 mm | 556 mm | 571 mm | 586 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 460 mm | 510 mm | 530 mm | 550 mm | 570 mm | 600 mm |
| Head Tube Angle | 72 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 107 mm | 123 mm | 140 mm | 161 mm | 188 mm | 214 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 963 mm | 977 mm | 980 mm | 993 mm | 1009 mm | 1024 mm |
| Bottom Bracket Drop | 77 mm | 77 mm | 77 mm | 77 mm | 77 mm | 77 mm |
| Standover Height | 714 mm | 728 mm | 761 mm | 796 mm | 817 mm | 838 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
ECHO SRAM RED AXS belongs to the Allied Echo model. Allied launched 8 bikes of this model so far. You can easily view all of the Allied Echo bikes models from 2023, here.
Model range prices
Allied ECHO SRAM Rival AXS 2023 is the most economical model, with a starting price of 6690$. Allied ECHO Dark Nebula Limited Edition 2023 on the other hand costs 14000$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Gravel bikes
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2023 and its price was 11230$. If we compare this with the average Gravel bike cost we notice that the price is 356.13% more expensive.
Overview of components
Fork material
ECHO SRAM RED AXS has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the ECHO SRAM RED AXS model has 700c carbon wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The ECHO SRAM RED AXS has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
