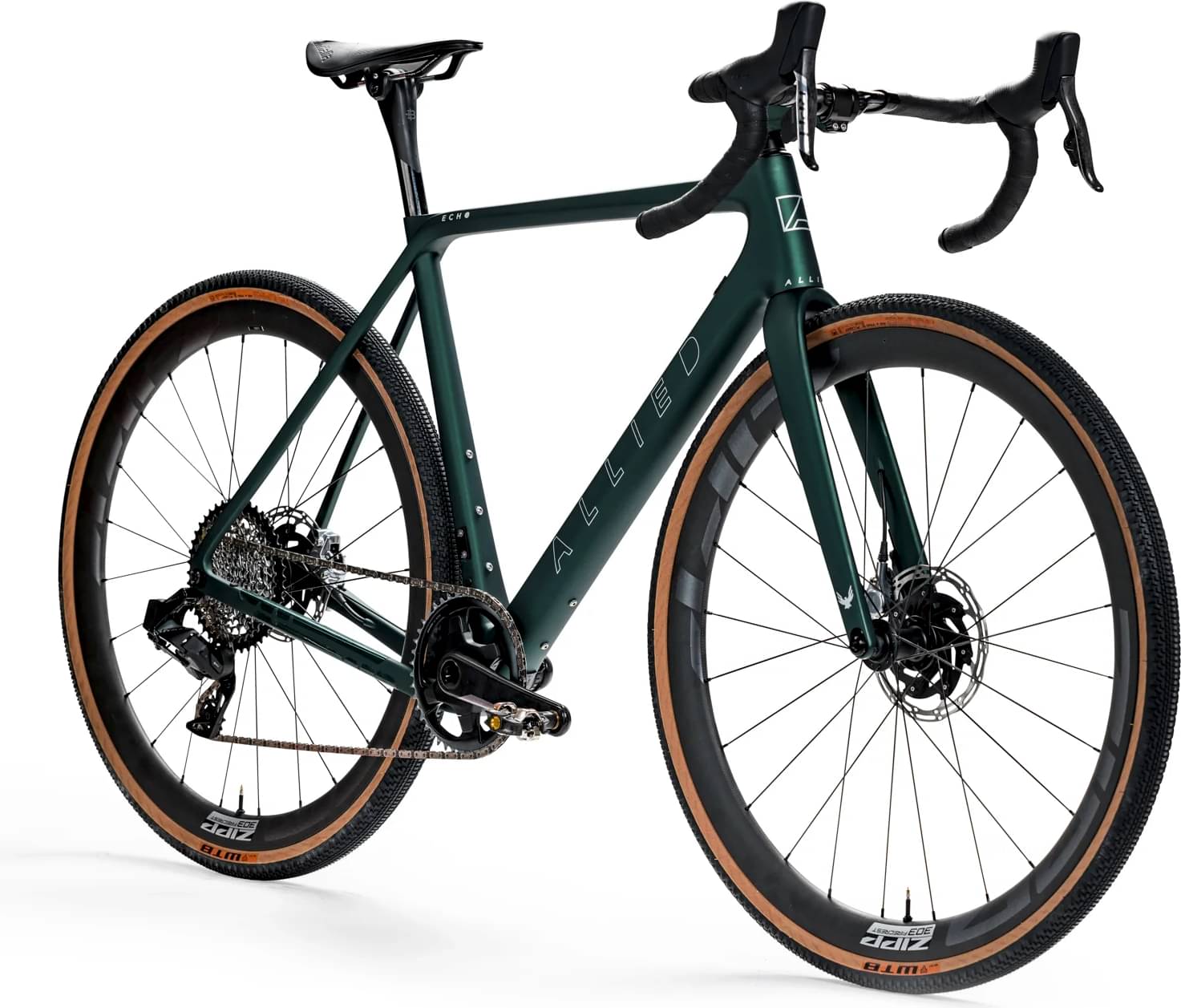

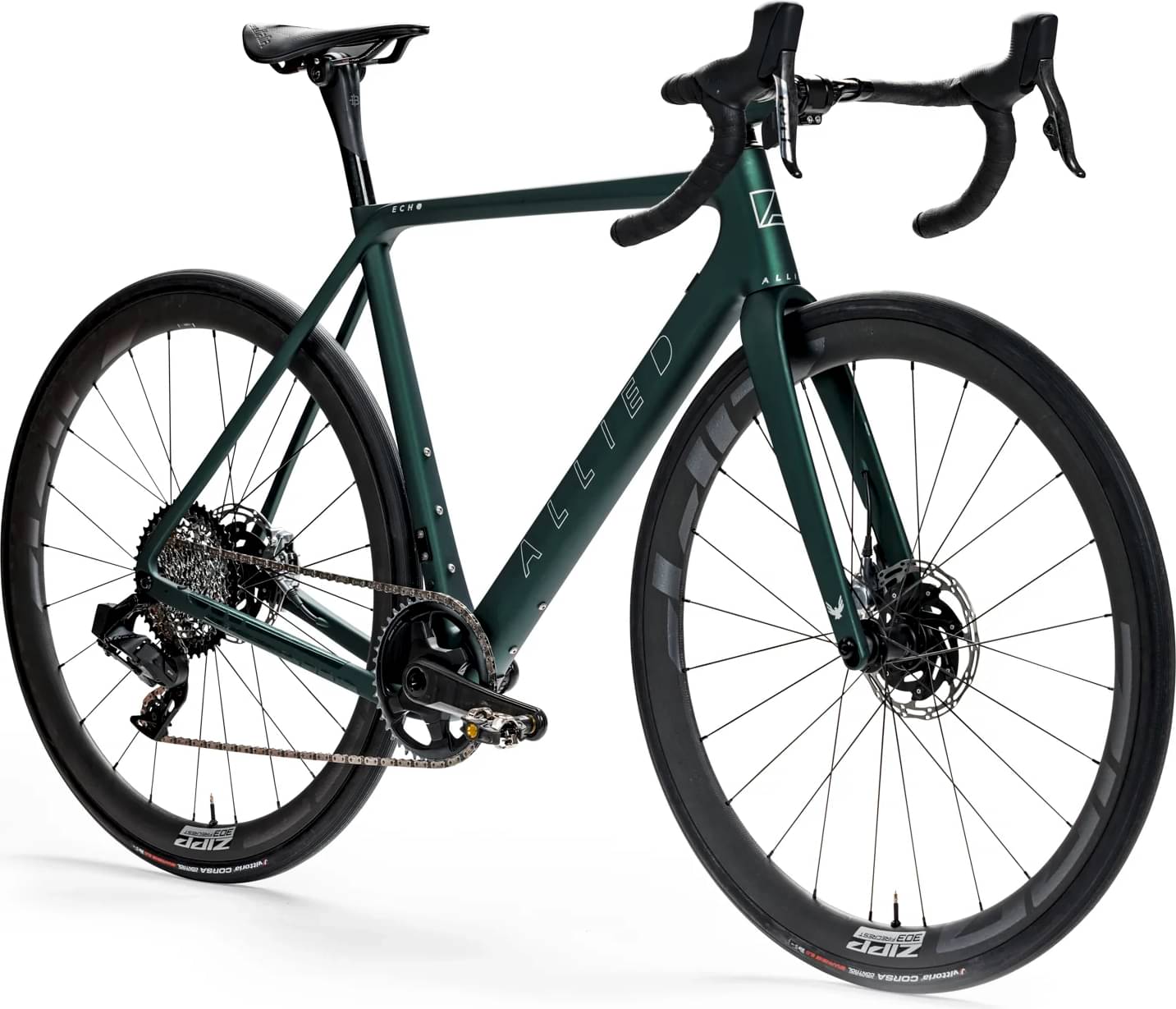

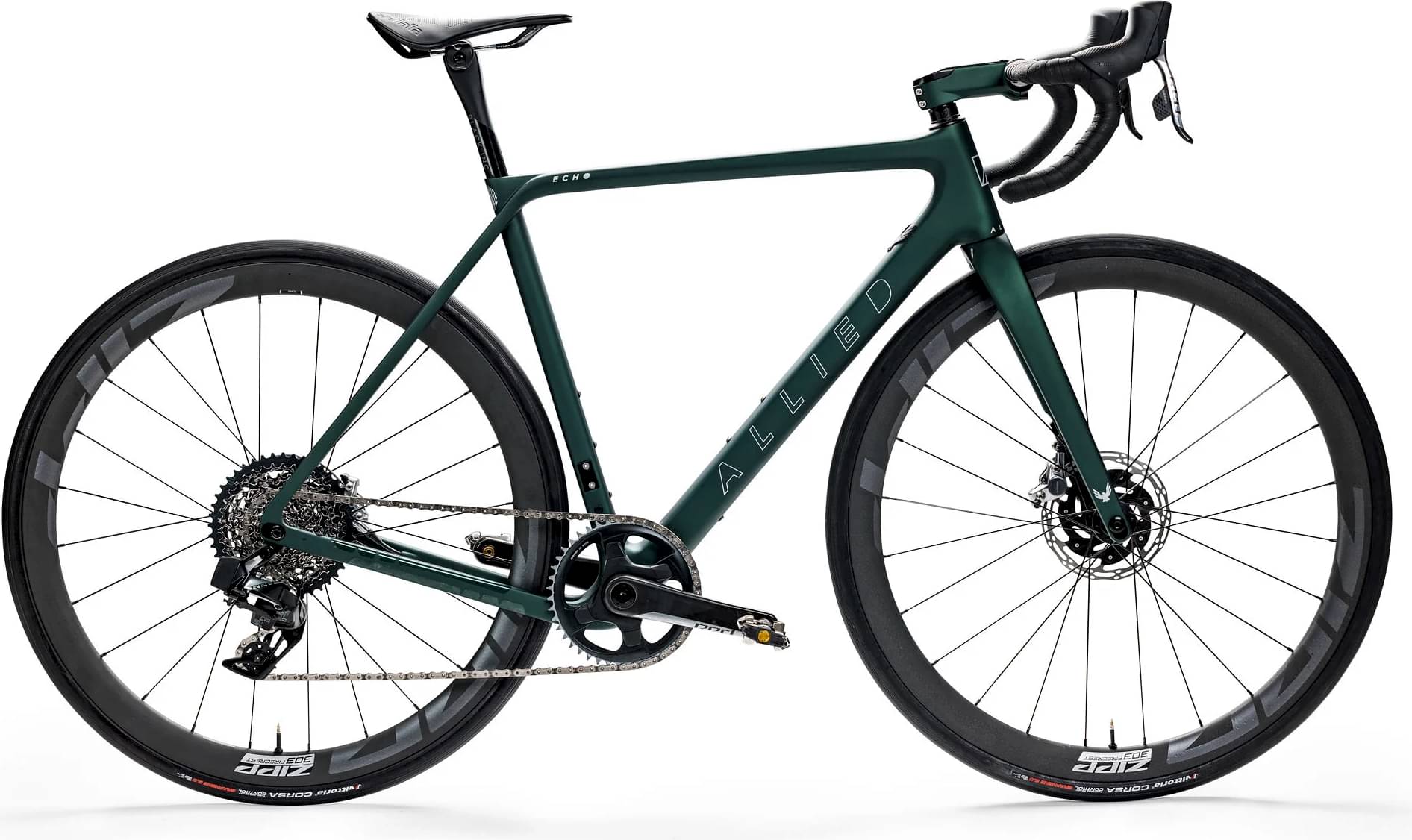

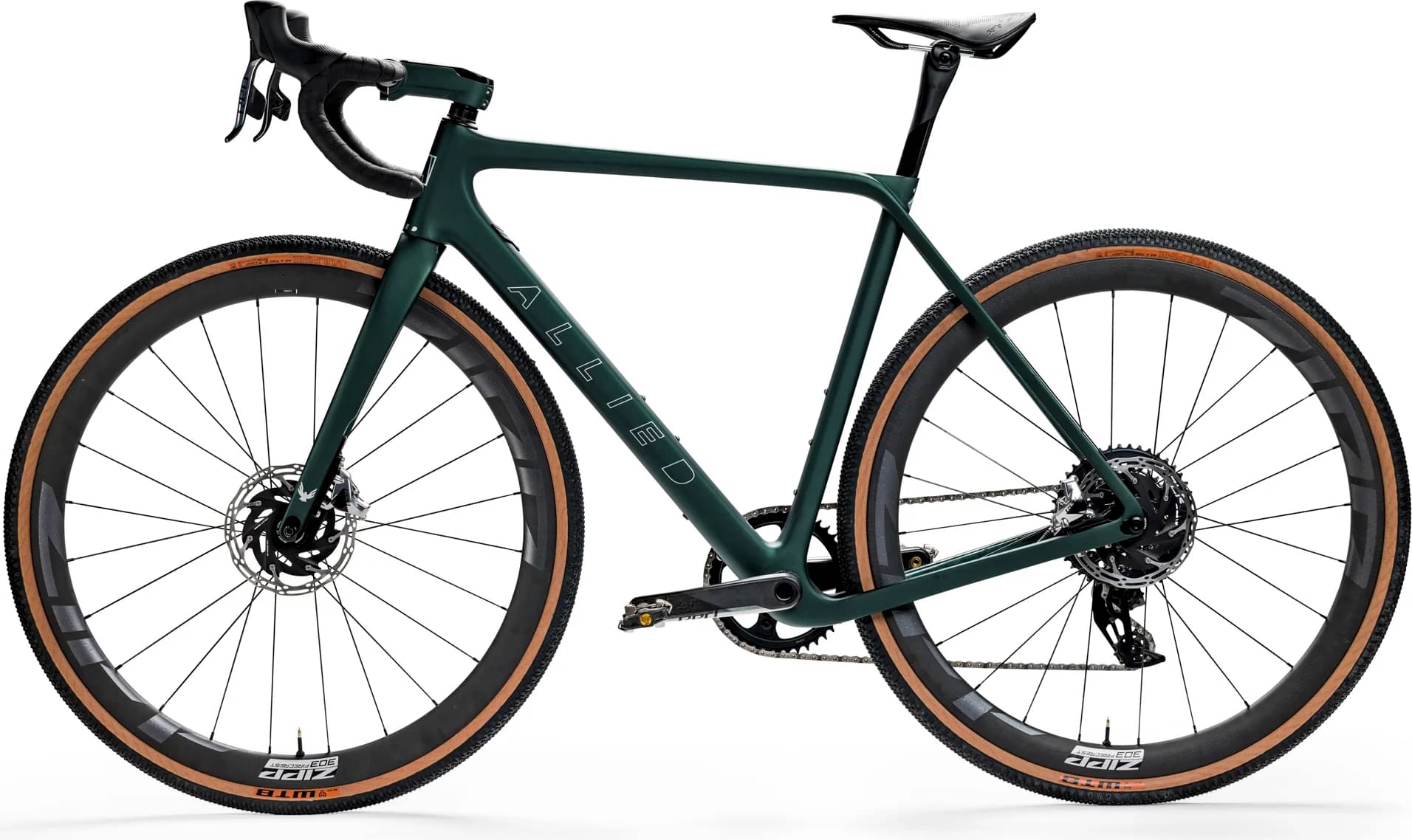

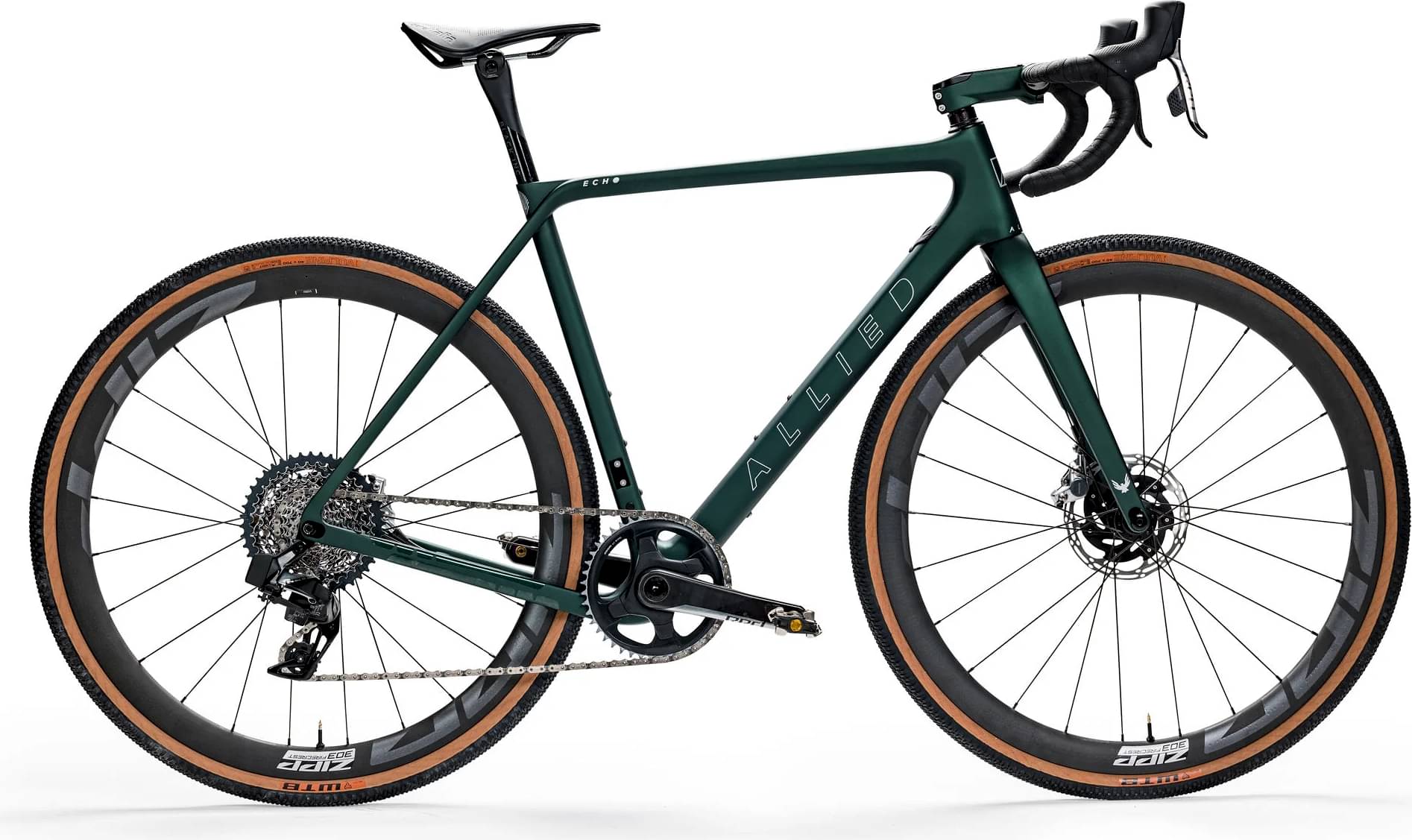

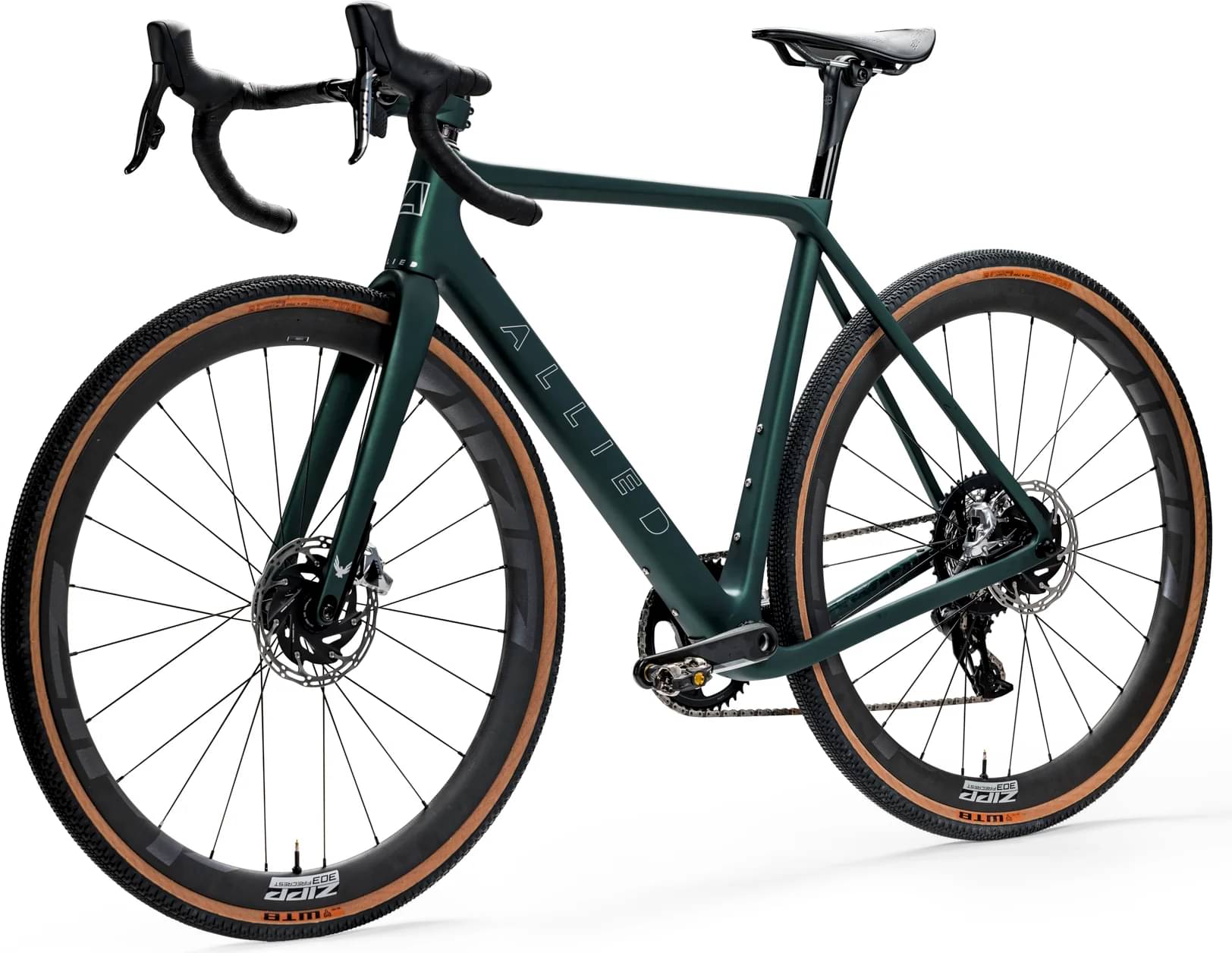

Allied ECHO SRAM RED XPLR AXS 1x 2023
2023 Road
Estimate price |
10,605$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED XPLR eTap, RED AXS -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Rear Derailleur
SRAM Red XPLR AXS D1
Shift Levers
SRAM Red AXS
Cassette
SRAM Force XPLR XG-1271 D1 10-44
Crank
SRAM Red D1 DUB
Bottom Bracket
SRAM Dub Threaded 68mm
Chain
SRAM Red D1 12SPD 114L
Wheels
Rims
Zipp 303 Firecrest Tubeless Disc-Brake
Tires
Vittoria Corsa Control TLR 700x30
Brakes
Brakes
SRAM Red AXS Hydro
Cockpit
Stem
ALLIED ECHO
Handlebar
Black Inc Carbon
Seat
Saddle
Selle Italia Novus Boost EVO Superflow
Seatpost
Black Inc Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.4 mm | 1.43 mm | 1.46 mm | 1.49 mm | 1.53 mm |
| Bottom Bracket Height | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm |
| Front Center | 562 mm | 576 mm | 580 mm | 593 mm | 609 mm | 624 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 64 mm | 64 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Stack | 507 mm | 522 mm | 542 mm | 562 mm | 587 mm | 612 mm |
| Reach | 364 mm | 373 mm | 379 mm | 386 mm | 394 mm | 401 mm |
| Top Tube Length | 507 mm | 520 mm | 542 mm | 556 mm | 571 mm | 586 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 460 mm | 510 mm | 530 mm | 550 mm | 570 mm | 600 mm |
| Head Tube Angle | 72 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 107 mm | 123 mm | 140 mm | 161 mm | 188 mm | 214 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 963 mm | 977 mm | 980 mm | 993 mm | 1009 mm | 1024 mm |
| Bottom Bracket Drop | 77 mm | 77 mm | 77 mm | 77 mm | 77 mm | 77 mm |
| Standover Height | 714 mm | 728 mm | 761 mm | 796 mm | 817 mm | 838 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
ECHO SRAM RED XPLR AXS 1x is an Allied Echo model. Allied released 8 bikes variations of this model so far. You can easily view all of the Allied Echo bikes models from 2023, here.
Model range prices
Allied ECHO SRAM Rival AXS 2023 is the cheapest bike model and costs 6690$. Allied ECHO Dark Nebula Limited Edition 2023 is the most expensive one and costs 14000$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Gravel bikes
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2023 and its price was 10605$. Comparing this to the average Gravel bike price, we see that the price is 330.75% more expensive.
ECHO SRAM RED XPLR AXS 1x components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The ECHO SRAM RED XPLR AXS 1x 2023 bike is equipped with 700c carbon wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Allied ECHO SRAM RED XPLR AXS 1x is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
