Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Fork Formula Selva S
-
Groupset NX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Formula Selva S, 51mm offset
Rear Shock
None
Drivetrain
Rear Derailleur
SRAM NX Eagle, 12-speed
Front Derailleur
None
Shift Levers
SRAM NX Eagle, 12-speed, MMX bracket
Cassette
SRAM NX Eagle PG-1230, 12-speed, 11-50 tooth
Crank
SRAM NX Eagle DUB, 175mm length
Bottom Bracket
SRAM DUB, 73mm English threaded
Chain
SRAM NX Eagle, 12-speed
Chain Guide
None
Pedals
None
Wheels
Front Hub
SUNringlé Duroc SD37 Comp wheelset, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Rear Hub
SUNringlé Duroc SD37 Comp wheelset, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Rims
SUNringlé Duroc SD37 Comp wheelset
Spokes
SUNringlé Duroc SD37 Comp wheelset, brass nipples
Tires
Schwalbe Hans Dampf, Soft (front), Speedgrip (rear), 29" x 2.35"
Brakes
Brakes
Formula Cura, 2-piston, 203mm front rotor, 180mm rear rotor
Brake Levers
Formula Cura
Cockpit
Stem
TwinWorks, forged alloy, 55mm length
Grips
TwinWorks, single clamp lock-on
Headset
AZX-203 R3 ZS44/56
Seat
Saddle
TwinWorks
Seatpost
TwinWorks
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.42 mm | 1.37 mm |
| Bottom Bracket Height | 319 mm | 319 mm | 319 mm |
| Front Center | 759 mm | 784 mm | 812 mm |
| Rake | 55 mm | 55 mm | 54 mm |
| Trail | 114 mm | 114 mm | 115 mm |
| Stack | 630 mm | 630 mm | 639 mm |
| Reach | 418 mm | 443 mm | 468 mm |
| Top Tube Length | 597 mm | 613 mm | 634 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 410 mm | 450 mm | 490 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1171 mm | 1196 mm | 1225 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model

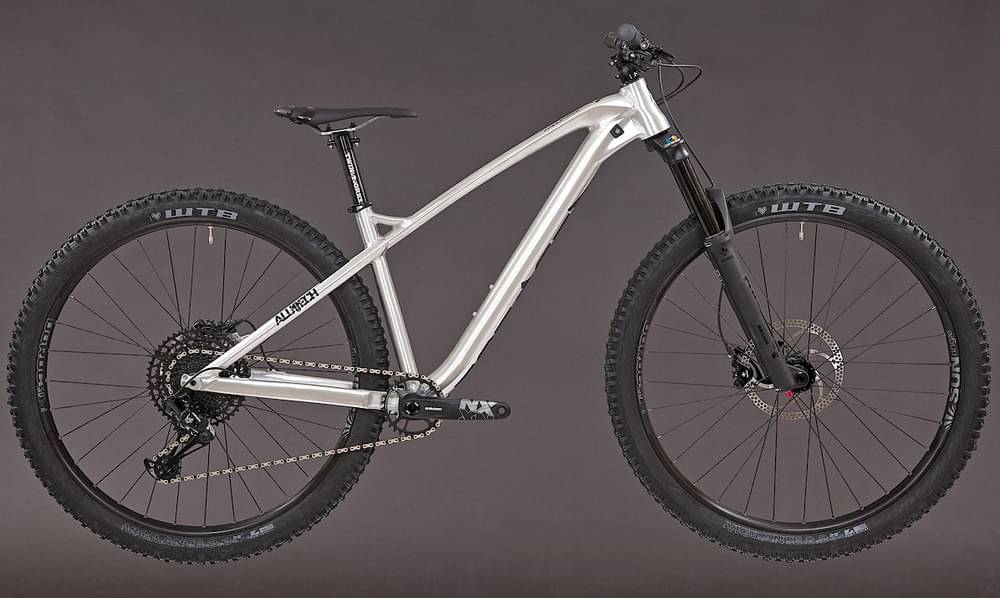

CheapTrick 29 is an Alutech Cheaptrick model. 2 bikes variations carry this model name so far. You can easily view all of the Alutech Cheaptrick bikes models from 2021, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Trail bikes
Trail bikes weigh an average of 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 12.9 kg (28.44 lbs), the CheapTrick 29 model is slightly lighter than average. In conclusion, the average Trail bike weighs 0.62% more than CheapTrick 29.
CheapTrick 29 components
Fork
The fork installed on this bike is the Formula Selva S model. The travel on this model is 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the CheapTrick 29 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Alutech CheapTrick 29 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
CheapTrick 29 comes in 3 sizes, that range from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
