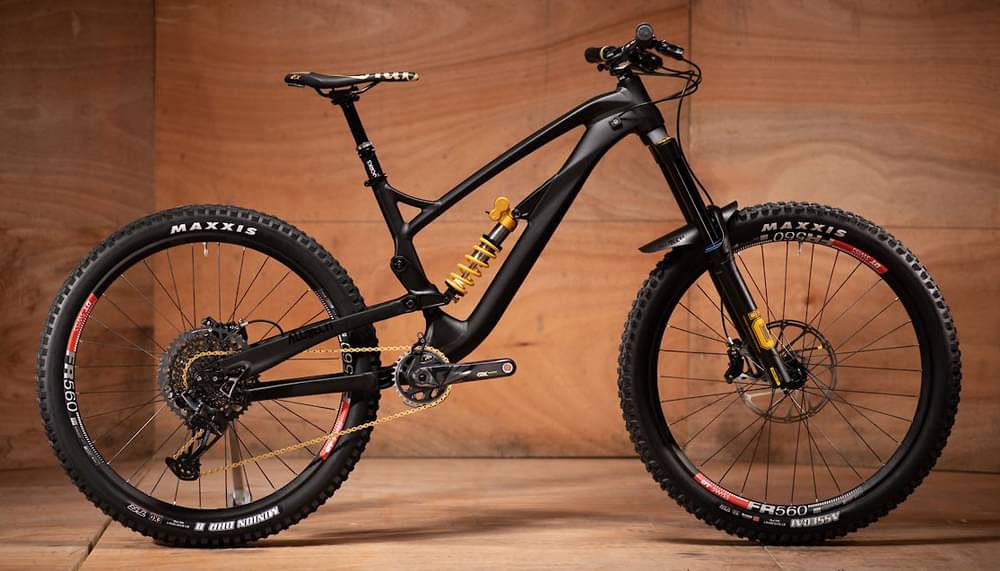

Alutech Fanes 6.0 Limited Edition 10 Year Öhlins 2021
2021 Mountain
Weight | 14.75 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 170mm -
Fork Öhlins
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Öhlins RXF36 M.2 TTX18, 42mm offset
Rear Shock
Öhlins TTX22M, 230mm x 65mm
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Front Derailleur
None
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM GX Eagle XG-1275, 12-speed, 10-52 tooth
Crank
SRAM GX Eagle Carbon DUB, 175mm length
Bottom Bracket
SRAM DUB, 73mm English threaded
Chain
SRAM XX1 Eagle, 12-speed, gold finish
Chain Guide
77Designz Oval upper slider with bashguard
Pedals
None
Wheels
Front Hub
DT Swiss 350, 110x15mm Boost front, 148x12mm Boost rear with XD driver
Rear Hub
DT Swiss 350, 110x15mm Boost front, 148x12mm Boost rear with XD driver
Rims
DT Swiss EX511
Spokes
DT Swiss wheelset
Tires
Front: Maxxis Assegai, 27.5" x 2.5", Rear: Maxxis Minion DHR II, 27.5" x 2.4"
Brakes
Brakes
SRAM Code RSC, 4-piston, 200mm front rotor, 180mm rear rotor
Brake Levers
SRAM Code RSC
Cockpit
Stem
TwinWorks, CNC alloy, 35mm
Handlebar
SQlab 30X Carbon high Fabio Wibmer Edition, 12° backsweep
Grips
SQlab 70X medium Fabio Wibmer Edtion
Headset
AZX-203 R3 ZS44/56
Seat
Saddle
SQlab 611 Ergowave 14cm Fabio Wibmer Edition
Seatpost
TwinWorks dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.37 mm | 1.3 mm | 1.27 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm | 349 mm |
| Stack | 600 mm | 600 mm | 609 mm | 627 mm |
| Reach | 407 mm | 437 mm | 467 mm | 492 mm |
| Top Tube Length | 569 mm | 598 mm | 619 mm | 650 |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 380 mm | 420 mm | 460 mm | 490 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 140 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1159 mm | 1189 mm | 1223 mm | 1256 mm |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm | 6 mm |
| Standover Height | 689 mm | 707 mm | 719 mm | 740 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Fanes 6.0 Limited Edition 10 Year Öhlins is an Alutech Fanes model. 6 bikes variations carry this model name so far. Check out the entire range from 2021 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Enduro bikes average price
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Enduro bikes average weight
Enduro bikes have an average weight of 14.27 kg (31.46 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Fanes 6.0 Limited Edition 10 Year Öhlins weighs 14.75 kg (32.52 lbs) and is slightly heavier than the average. To sum up, it’s 3.36% heavier than the average weight of Enduro bikes.
Fanes 6.0 Limited Edition 10 Year Öhlins components
Fork
The Öhlins is included from the factory. It has a travel distance of 170mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this bike is Öhlins TTX22M, with a travel distance of 170mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The wheels on Fanes 6.0 Limited Edition 10 Year Öhlins are the 27.5″ aluminum type. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Fanes 6.0 Limited Edition 10 Year Öhlins comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the Fanes 6.0 Limited Edition 10 Year Öhlins. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
