Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Rival 1 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aquila CX-G
Drivetrain
Rear Derailleur
RD RIVAL1 LONG CAGE
Shift Levers
DB Rival Hydraulic Disc CX1
Cassette
CS XG 1175 10-42
Crank
FC RIVAL1 24MM 1725 XSYNC 40
Bottom Bracket
BB DUB PF ROAD86.5
Chain
CN PC1130 118LI W/ PWR.LCK 11S
Wheels
Rims
Mavic Allroad UST Disc
Tires
Hutchinson Overide
Brakes
Disk Rotors
DB ROTOR 6BOLT CENTERLINE, 160mm / 140mm
Cockpit
Stem
3T ARX
Handlebar
PRO Discover
Headset
Aquila
Seat
Saddle
Aquila Ergo+
Seatpost
3T Zero25 / 27.2 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.49 mm | 1.5 mm | 1.55 mm | 1.32 mm |
| Bottom Bracket Height | 282 mm | 282 mm | 282 mm | 282 mm | 282 mm |
| Front Center | 173 mm | 178 mm | 183 mm | 188 mm | 197 mm |
| Rake | -356 mm | -354 mm | -354 mm | -354 mm | -325 mm |
| Trail | 501 mm | 495 mm | 490 mm | 486 mm | 455 mm |
| Stack | 541 mm | 562 mm | 573 mm | 594 mm | 514 mm |
| Reach | 376 mm | 376 mm | 381 mm | 384 mm | 388 mm |
| Top Tube Length | 525 mm | 540 mm | 555 mm | 570 mm | 585 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 594 mm | 600 mm | 605 mm | 611 mm | 620 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview

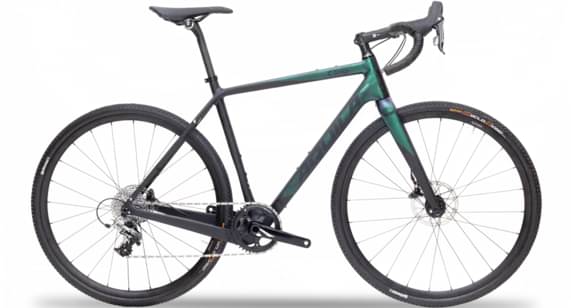

CX-G Rival 1 is an Aquila Cx G model. There are 15 bikes that carry this model name. Take a sneak peek at all Aquila Cx G bikes models from 2021, by clicking here.
Model range prices
Aquila CX-G Al 2021 is the cheapest bike model and costs 1590$. Aquila CX-G GRX Di2 2021 is the most expensive one and costs 5965$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Gravel bikes
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2021 for 2754$. Doing a quick comparison, we notice that CX-G Rival 1 price is 11.86% more expensive than the average cost of a Gravel bike.
CX-G Rival 1 components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The wheels on CX-G Rival 1 are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The CX-G Rival 1 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
