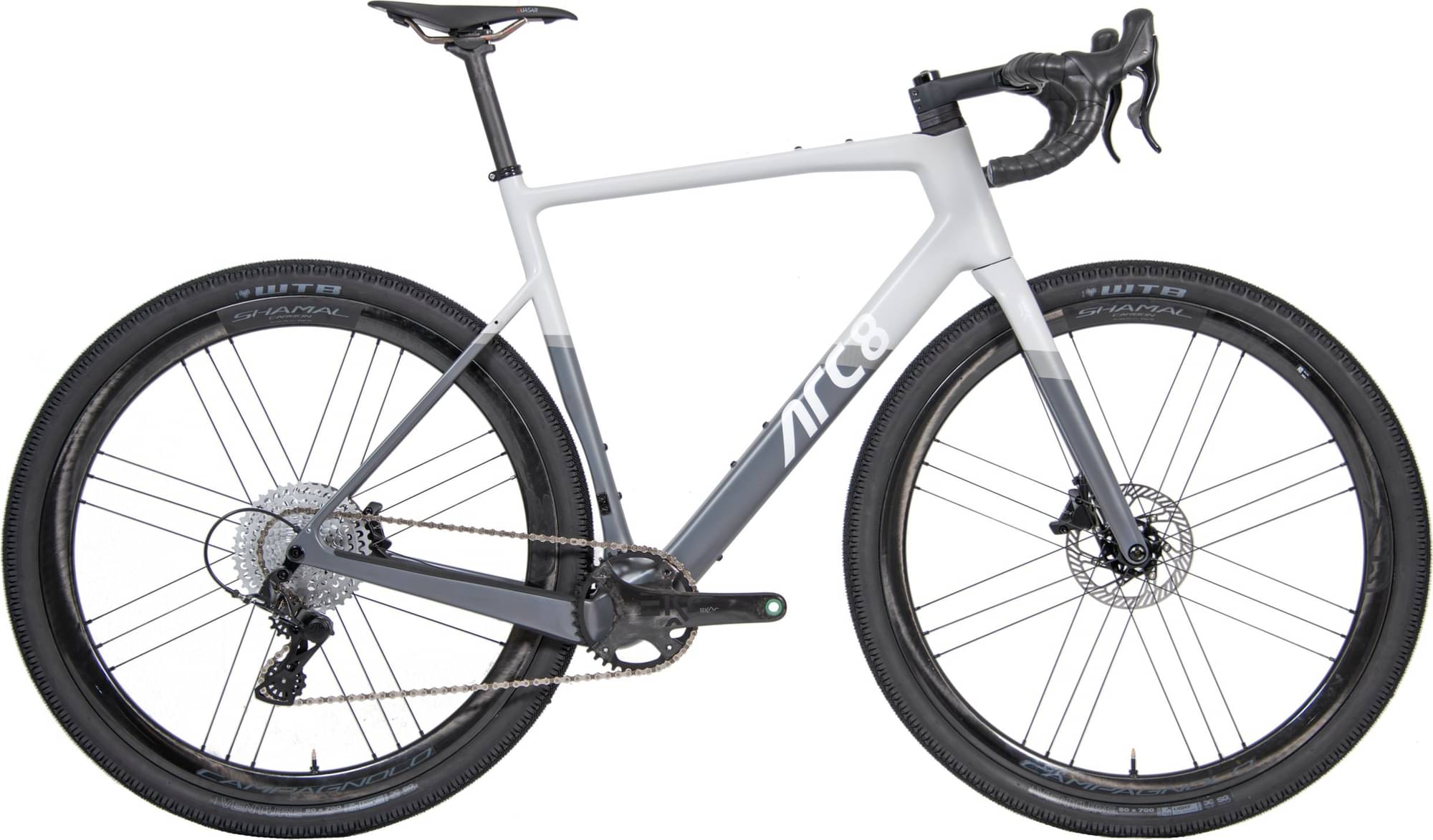

arc8 Eero FORCE WIDE AXS ETAP 1X 2022
2022 Road
Estimate price |
6,307$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force XPLR eTap, Force eTap -
Suspension Rigid -
Battery SRAM Powerpack / inkl. Ladegeräte -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
170cm - 177cm
MD
174cm - 182cm
LG
179cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ARC8 Eero, S-M-L-XL size, Carbon
Suspension Fork
ARC8 Eero, Carbon Gabel
Drivetrain
Rear Derailleur
SRAM FORCE XPLR eTap AXS / 12-spd
Front Derailleur
-
Shift Levers
SRAM FORCE eTap AXS
Cassette
SRAM XG1271 / 12-spd / 10-44T
Crank
SRAM Force 40T / 12-spd
Bottom Bracket
SRAM DUB / BSA
Chain
SRAM GX Eagle / 12-spd
Wheels
Rims
Front: DT Swiss GR1600 Spline, Rear: DT Swiss GR1600 Spline
Tires
Front: Pirelli Cinturato™ GRAVEL H 45-622, Rear: Pirelli Cinturato™ GRAVEL H 45-622
Brakes
Brakes
SRAM FORCE eTap AXS
Cockpit
Stem
ICH Stem
Handlebar
ARC8 Gravel
Headset
ARC8
Seat
Saddle
Selle San Marco Monza
Seatpost
Faserwerk Wuthocker
Motor & Battery
Battery
SRAM Powerpack / inkl. Ladegeräte
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.52 mm | 1.54 mm | 1.56 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 594 mm | 603 mm | 623 mm | 644 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 74 mm | 67 mm | 67 mm | 67 mm |
| Stack | 536 mm | 559 mm | 584 mm | 609 mm |
| Reach | 355 mm | 367 mm | 379 mm | 391 mm |
| Top Tube Length | 516 mm | 536 mm | 555 mm | 574 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 510 mm | 550 mm | 570 mm | 600 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 137 mm | 157 mm | 170 mm | 197 mm |
| Chainstay Length | 411 mm | 411 mm | 411 mm | 411 mm |
| Wheelbase | 993 mm | 1003 mm | 1023 mm | 1044 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 765 mm | 800 mm | 821 mm | 849 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 170 cm | 174 cm | 179 cm | 186 cm |
| Rider Max Height | 177 cm | 182 cm | 188 cm | cm |
Model Overview
Eero FORCE WIDE AXS ETAP 1X is part of the Arc8 Eero model. ARC8 launched 12 bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
ARC8 Eero FORCE WIDE AXS ETAP 1X 2022 is the cheapest bike model and costs 5839$. ARC8 Eero GRX DI2 2X 2022 is the most expensive one and costs 6136$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel bikes average price
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5839$. Doing a quick comparison, we notice that Eero FORCE WIDE AXS ETAP 1X price is 137.16% higher than the average cost of a Gravel bike.
Eero FORCE WIDE AXS ETAP 1X components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When leaving the production line, the Eero FORCE WIDE AXS ETAP 1X model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. ARC8 Eero FORCE WIDE AXS ETAP 1X is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
