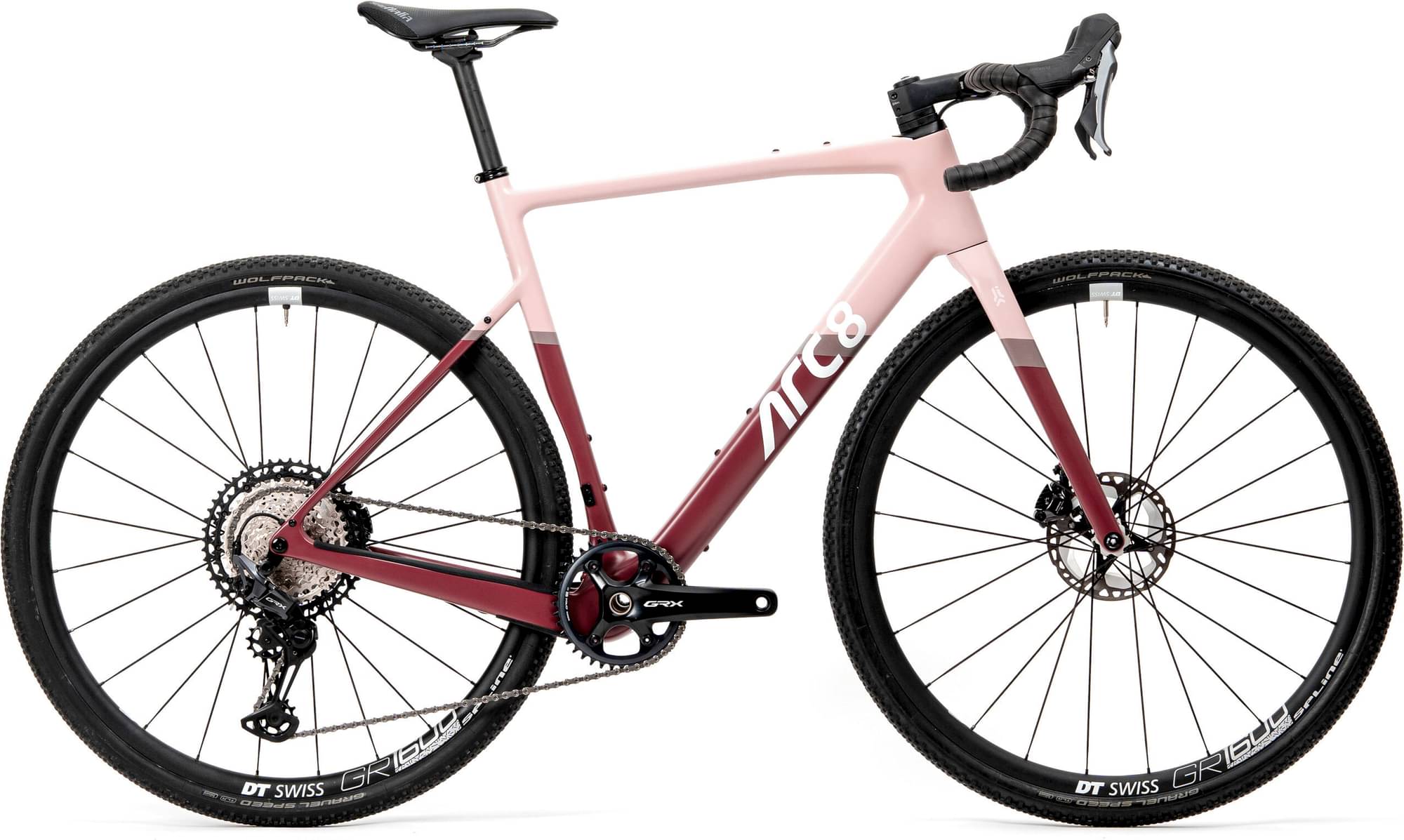

arc8 Eero FORCE WIDE AXS ETAP 1×12 2023
2023 Road
Estimate price |
7,053$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force eTap -
Suspension Rigid -
Battery SRAM Powerpack / incl. Charger -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
170cm - 177cm
MD
174cm - 182cm
LG
179cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ARC8 Eero Carbon
Suspension Fork
ARC8 Eero Carbon
Drivetrain
Rear Derailleur
SRAM Force Xplor AXS; 12 Speed
Front Derailleur
-
Shift Levers
SRAM Force eTap AXS D2; 12 Speed
Cassette
SRAM XG 1271 10-44T
Crank
SRAM Force 1x Wide 40T
Bottom Bracket
SRAM DUB BSA 68 Road Wide
Chain
SRAM Force Chain
Wheels
Rims
Front: DT SWISS GRC 1400 Spline DB 42, Rear: DT SWISS GRC 1400 Spline DB 42
Tires
Front: Pirelli Cinturato Gravel H 40-622, Rear: Pirelli Cinturato Gravel H 40-622
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
ICH Stem
Handlebar
Alloy handlebar with flair
Headset
ARC8
Seat
Saddle
Selle Italia Novus Boost
Seatpost
Faserwerk Wuthocker 0mm Offset, 400mm
Motor & Battery
Battery
SRAM Powerpack / incl. Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.52 mm | 1.54 mm | 1.56 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 594 mm | 603 mm | 623 mm | 644 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 74 mm | 67 mm | 67 mm | 67 mm |
| Stack | 536 mm | 559 mm | 584 mm | 609 mm |
| Reach | 355 mm | 367 mm | 379 mm | 391 mm |
| Top Tube Length | 516 mm | 536 mm | 555 mm | 574 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 510 mm | 550 mm | 570 mm | 600 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 137 mm | 157 mm | 170 mm | 197 mm |
| Chainstay Length | 411 mm | 411 mm | 411 mm | 411 mm |
| Wheelbase | 993 mm | 1003 mm | 1023 mm | 1044 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 765 mm | 800 mm | 821 mm | 849 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 170 cm | 174 cm | 179 cm | 186 cm |
| Rider Max Height | 177 cm | 182 cm | 188 cm | cm |
About this model
Eero FORCE WIDE AXS ETAP 1×12 is an Arc8 Eero model. ARC8 launched 12 bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
ARC8 Eero GRX 1×12 2023 is the cheapest bike model and costs 4458$. ARC8 Eero FORCE WIDE AXS ETAP 1×12 2023 is the most expensive one and costs 6529$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Gravel bikes
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When ARC8 released this model in 2023, its price was 6529$. Comparing the average cost of a Gravel bike to this one, you will see that Eero FORCE WIDE AXS ETAP 1×12 price is 165.19% higher.
Eero FORCE WIDE AXS ETAP 1×12 components
Fork material
Eero FORCE WIDE AXS ETAP 1×12 has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The wheels on Eero FORCE WIDE AXS ETAP 1×12 are the 700c carbon type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Eero FORCE WIDE AXS ETAP 1×12 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
