Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Battery Shimano BTDN300 -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
51cm
170cm - 176cm
54cm
175cm - 181cm
57cm
180cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ARC8, Escapee DB carbon
Suspension Fork
ARC8, Escapee DB carbon
Drivetrain
Rear Derailleur
Shimano Ultegra Di2 R8150 12 Speed
Front Derailleur
Shimano Ultegra Di2 R8150 12 Speed
Shift Levers
Shimano Ultegra Disc R8170 12 Speed
Cassette
Shimano Ultegra R8100 11-30 / 11-34T
Crank
Shimano Ultegra R8100 50-34
Bottom Bracket
Shimano SMBBR60
Chain
Shimano Ultegra M8100
Wheels
Rims
Front: ARC8 Carbon rim (38mm / 50mm); DT Swiss 350 Classic Hub; DT Swiss Aero Comp Spokes, Rear: ARC8 Carbon rim (38mm / 50mm); DT Swiss 350 Classic Hub; DT Swiss Aero Comp Spokes
Tires
Front: Wolfpack Road Race 28mm, Rear: Wolfpack Road Race 28mm
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
ICH Stem
Handlebar
Alloy handlebar
Headset
ARC8
Seat
Saddle
Selle Italia SLR Boost Superflow
Seatpost
ARC8 SP Carbon 15mm offset, 400mm / Faserwerk Wuthocker 0mm offset, 400mm
Motor & Battery
Battery
Shimano BTDN300
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 57cm | 60cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.41 mm | 1.42 mm | 1.42 mm | 1.43 mm |
| Bottom Bracket Height | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm |
| Front Center | 568 mm | 587 mm | 591 mm | 608 mm | 626 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 66 mm | 42 mm | 56 mm | 57 mm | 58 mm |
| Stack | 510 mm | 527 mm | 546 mm | 565 mm | 585 mm |
| Reach | 362 mm | 374 mm | 385 mm | 398 mm | 410 mm |
| Top Tube Length | 511 mm | 528 mm | 545.5 mm | 563.5 mm | 581 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 422 mm | 453 mm | 477 mm | 499 mm | 521 mm |
| Head Tube Angle | 70.5 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 103 mm | 116 mm | 135 mm | 156 mm | 176 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 964 mm | 983 mm | 987 mm | 1005 mm | 1023 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 71 mm | 71 mm | 71 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model

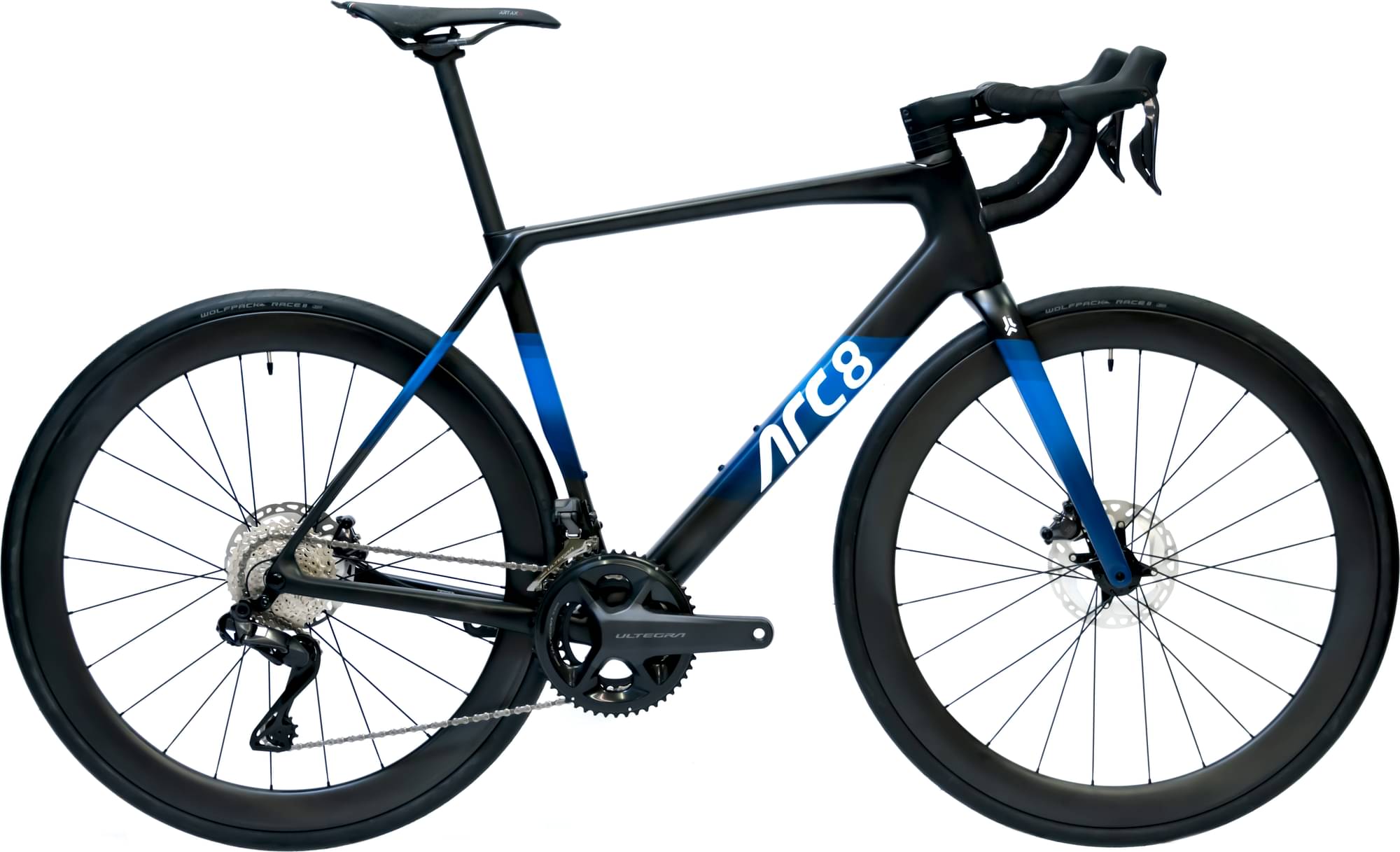

Escapee DB ULTEGRA DI2 completes the Arc8 Escapee model. There are 9 bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
ARC8 Escapee DB 105 DI2 2023 is the cheapest bike model and costs 4989$. ARC8 Escapee DB FORCE eTAP AXS 2023 is the most expensive one and costs 6370$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Race bikes
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2023 for 6370$. Comparing this to the average Race bike price, we see that the price is 90.15% higher.
Escapee DB ULTEGRA DI2 components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The wheels on Escapee DB ULTEGRA DI2 are the 700c carbon type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. ARC8 Escapee DB ULTEGRA DI2 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
