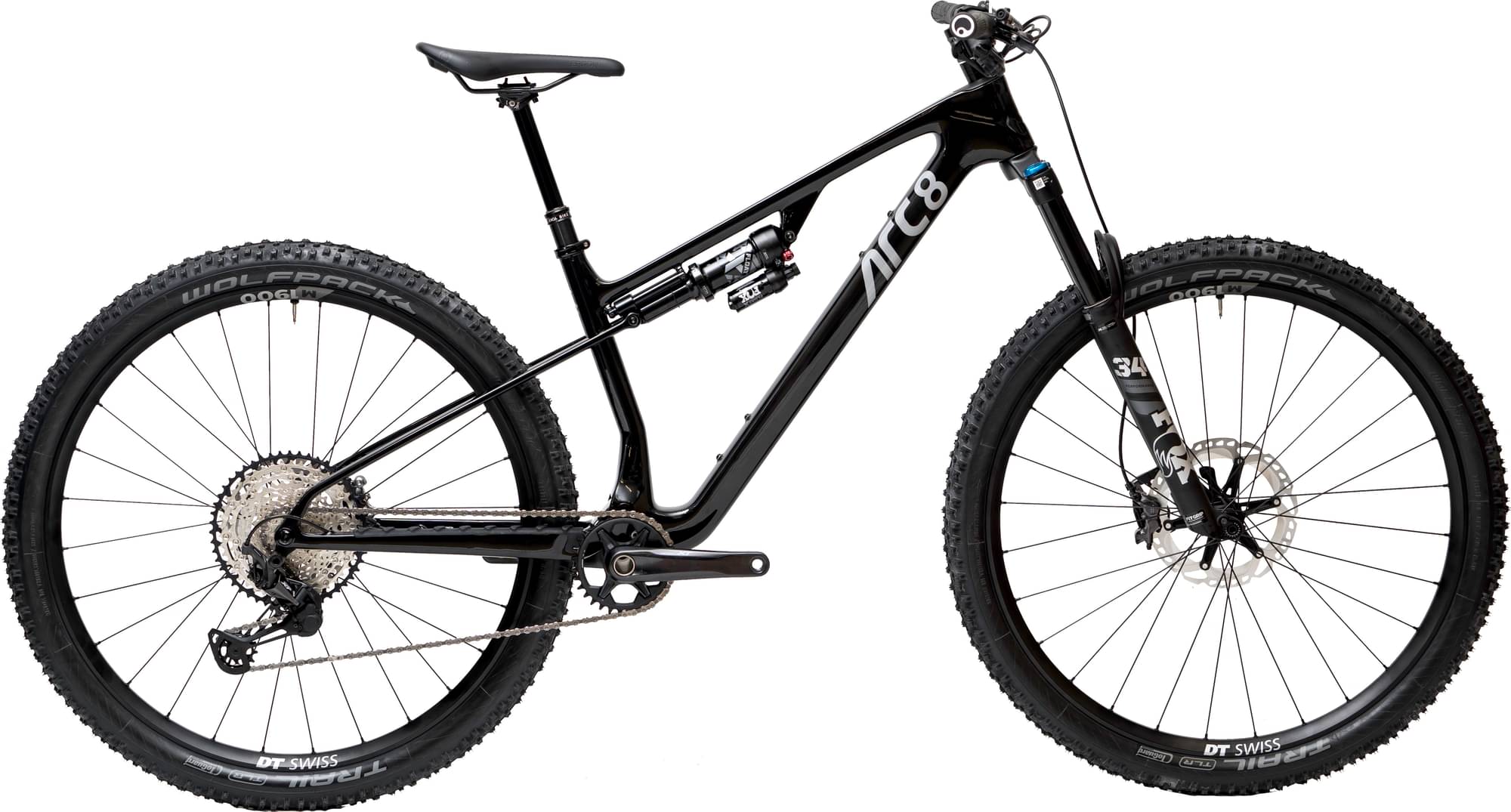

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork RockShox Lyrik Select
-
Groupset SLX -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
160cm - 179cm
LG
177cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ARC8 Essential, full carbon
Suspension Fork
Rock Shox Lyrik Select; 150mm
Rear Shock
Rock Shox Deluxe Select+ RT; 130mm
Drivetrain
Rear Derailleur
Shimano SLX M7100
Shift Levers
Shimano SLX M7100
Cassette
Shimano SLX CS-M7100; 10-51T
Crank
Shimano SLX FC-M7120; 32T
Bottom Bracket
Shimano BB-MT800 / BSA
Chain
Shimano SLX M7100
Wheels
Rims
Front: DT SWISS M 1900 Spline, Rear: DT SWISS M 1900 Spline
Tires
Front: Wolfpack Trail TLR 29x2.4, Rear: Wolfpack Trail TLR 29x2.4
Brakes
Brakes
Front: Shimano SLX M7120 4-Piston, Rear: Shimano SLX M7120 4-Piston
Cockpit
Stem
Newmen Evolution SL 40mm / 50mm
Handlebar
Faserwerk Rockstock 800mm, carbon
Grips
Ergon GA20
Headset
Acros AIF-531
Seat
Saddle
Ergon SMC10
Seatpost
RaceFace Aeffect 170mm incl. EV Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.33 mm | 1.27 mm |
| Bottom Bracket Height | 334 mm | 334 mm |
| Front Center | 795 mm | 832 mm |
| Rake | 44 mm | 44 mm |
| Trail | 134 mm | 134 mm |
| Stack | 608 mm | 621 mm |
| Reach | 458 mm | 488 mm |
| Top Tube Length | 589 mm | 645 mm |
| Seat Tube Angle | 76 ° | 76 ° |
| Seat Tube Length | 410 mm | 440 mm |
| Head Tube Angle | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 115 mm |
| Chainstay Length | 423 mm | 423 mm |
| Wheelbase | 1215 mm | 1252 mm |
| Bottom Bracket Drop | 40 mm | 40 mm |
| Standover Height | 695 mm | 697 mm |
| Wheels | 29" | 29" |
| Rider Min Height | 160 cm | 177 cm |
| Rider Max Height | 179 cm | 190 cm |
About this model
Essential SLX completes the Arc8 Essential model. ARC8 released 6 bikes variations of this model so far. Take a sneak peek at all Arc8 Essential bikes models from 2023, by clicking here.
Model range prices
The most economical model, the ARC8 Essential SLX 2023 has a starting price of 5096$. ARC8 Essential GX AXS 2023 on the other hand is the most expensive at 7113$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5096$. Comparing this to the average Trail bike price, we see that the price is 84.5% more expensive.
Overview of components
Fork
The fork installed on this bike is the RockShox Lyrik Select model. The travel on this model is 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this bike has the Rock Shox Deluxe Select+ RT; 130mm model, with a travel of 130mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The Essential SLX 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The Essential SLX has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 2 sizes available for this model. Rider height can be anywhere between 160 cm – 190 cm (5.25 ft – 6.23 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The ARC8 model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
