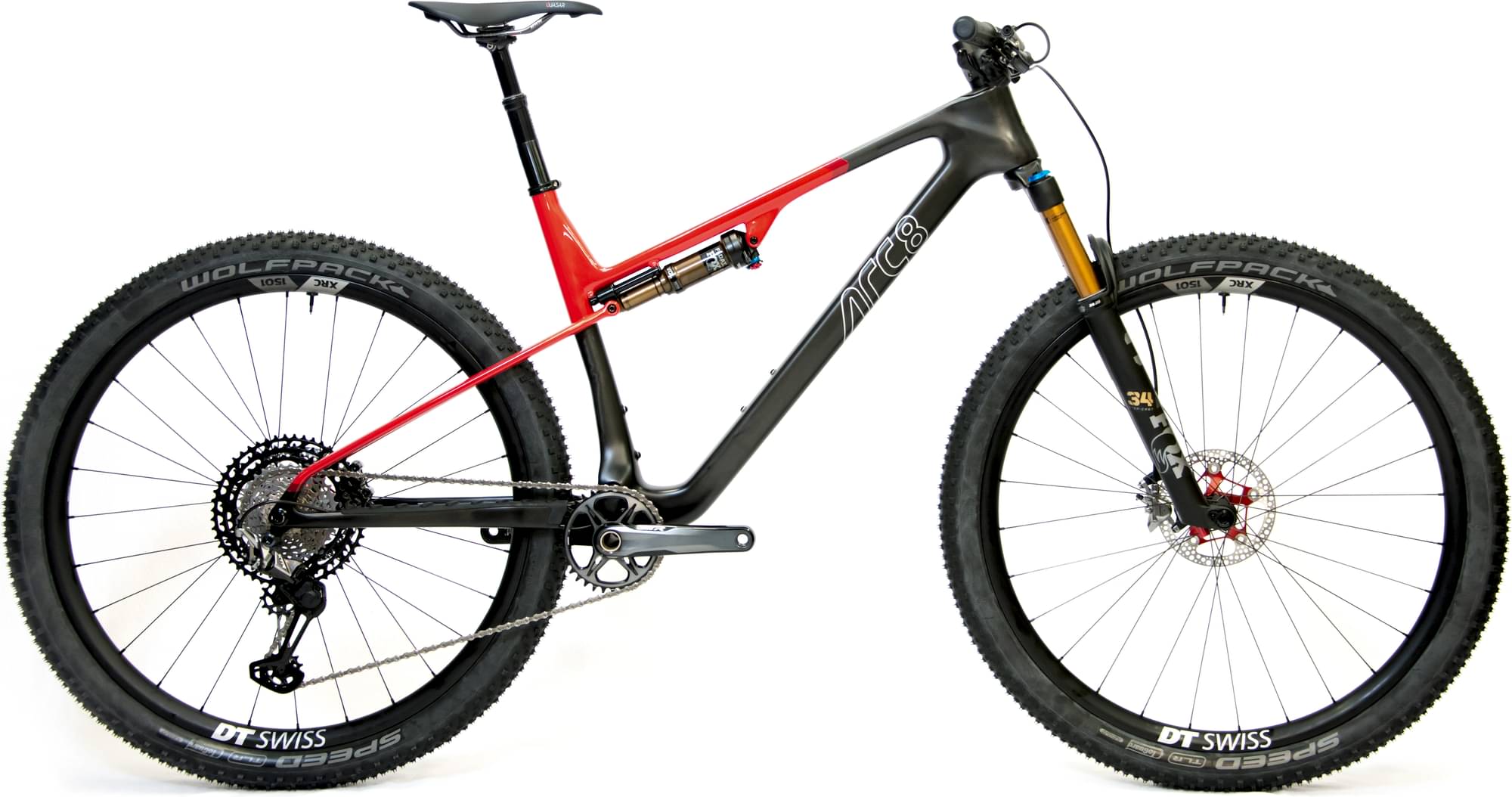

arc8 Evolve FS XT 2023
2023 Mountain
Estimate price |
7,454$
Weight | 10.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 110mm -
Travel Rear 110mm -
Fork Fox Performance Float 34
-
Groupset XT -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
160cm - 179cm
LG
177cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ARC8 Evolve FS, full carbon
Suspension Fork
Fox 34 Performance SC; 120mm
Rear Shock
Fox Float DPD Performance; 110mm
Drivetrain
Rear Derailleur
Shimano XT M8100
Shift Levers
Shimano XT M8100
Cassette
Shimano XT CSM8100; 10-51T
Crank
Shimano XT FCM8120; 32T; 170mm; 55mm
Bottom Bracket
Shimano MT800 BSA
Chain
Shimano XT M8100
Wheels
Rims
Front: DT SWISS XM 1700 SPLINE, Rear: DT SWISS XM 1700 SPLINE
Tires
Front: Wolfpack Cross 29x2,4, Rear: Wolfpack Cross 29x2,4
Brakes
Brakes
Front: Shimano XT 8100 2-Piston, Rear: Shimano XT 8100 2-Piston
Cockpit
Stem
Faserwerk Baslerstab 35mm / 50mm
Handlebar
Faserwerk Baslerstab, 800 mm, carbon
Grips
Ergon GXR
Headset
Acros AIF-531
Seat
Saddle
Repente Quasar
Seatpost
BikeYoke Divine SL 125mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.26 mm | 1.2 mm |
| Bottom Bracket Height | 339 mm | 339 mm |
| Front Center | 772 mm | 806 mm |
| Rake | 42 mm | 42 mm |
| Trail | 126 mm | 126 mm |
| Stack | 594 mm | 603 mm |
| Reach | 471 mm | 501 mm |
| Top Tube Length | 618 mm | 641 mm |
| Seat Tube Angle | 76 ° | 76 ° |
| Seat Tube Length | 440 mm | 480 mm |
| Head Tube Angle | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm |
| Chainstay Length | 436 mm | 436 mm |
| Wheelbase | 1206 mm | 1240 mm |
| Bottom Bracket Drop | 35 mm | 35 mm |
| Standover Height | 690 mm | 688 mm |
| Wheels | 29" | 29" |
| Rider Min Height | 160 cm | 177 cm |
| Rider Max Height | 179 cm | 190 cm |
Model Overview
Evolve FS XT is an Arc8 Evolve model. ARC8 released 12 bikes variations of this model so far. Take a sneak peek at all Arc8 Evolve bikes models from 2023, by clicking here.
Model range prices
ARC8 Evolve HT SLX 2023 is the cheapest bike model and costs 4246$. ARC8 Evolve FS XX1 2023 is the most expensive one and costs 11148$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2023 for 6901$. Doing a quick comparison, we notice that Evolve FS XT price is 262.26% higher than the average cost of a Crosscountry bike.
Crosscountry bikes average weight
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
much lighter than average, Evolve FS XT has a weight of 10.7 kg (23.59 lbs). In conclusion, the average Crosscountry bike weighs 15.89% more than Evolve FS XT.
Overview of components
Fork
This bike has the Fox Performance Float 34 fork installed. The fork’s travel is 110mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this bike has the Fox Float DPD Performance; 110mm model, with a travel of 110mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The Evolve FS XT 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. ARC8 Evolve FS XT has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
ARC8 Evolve FS XT bike has 2 sizes, in the range of 160 cm – 190 cm (5.25 ft – 6.23 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
