Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Wheels 700c -
Suspension Rigid -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Dark Matter
Suspension Fork
Dark Matter specific
Drivetrain
Bottom Bracket
BB86
Brakes
Brakes
Powerful braking for riding confidence in all conditions. When using fenders, 140mm rear rotor is recommended
Cockpit
Headset
FSA NO.30/Kit + 3D+ w/ TH881-1
Seat
Seatpost
Argon 18 TDS-C Carbon, 27.2mm (included with frameset)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 53cm | 56cm | 59cm | 62cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.49 mm | 1.51 mm | 1.52 mm | 1.53 mm | 1.56 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 590 mm | 593 mm | 606 mm | 612 mm | 628 mm | 641 mm |
| Rake | 54 mm | 53 mm | 54 mm | 49 mm | 49 mm | 49 mm |
| Trail | 73 mm | 64 mm | 60 mm | 62 mm | 62 mm | 59 mm |
| Stack | 533 mm | 553 mm | 573 mm | 593 mm | 613 mm | 638 mm |
| Reach | 359 mm | 370 mm | 380 mm | 390 mm | 400 mm | 410 mm |
| Top Tube Length | 495 mm | 516 mm | 537 mm | 559 mm | 582 mm | 606 mm |
| Seat Tube Angle | 75.5 ° | 74.9 ° | 74.3 ° | 73.7 ° | 73.1 ° | 72.5 ° |
| Seat Tube Length | 420 mm | 450 mm | 485 mm | 520 mm | 555 mm | 590 mm |
| Head Tube Angle | 69.5 ° | 71 ° | 71.4 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 120 mm | 135 mm | 154 mm | 171 mm | 192 mm | 216 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1011 mm | 1014 mm | 1027 mm | 1033 mm | 1049 mm | 1062 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 704 mm | 732 mm | 763 mm | 794 mm | 824 mm | 855 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

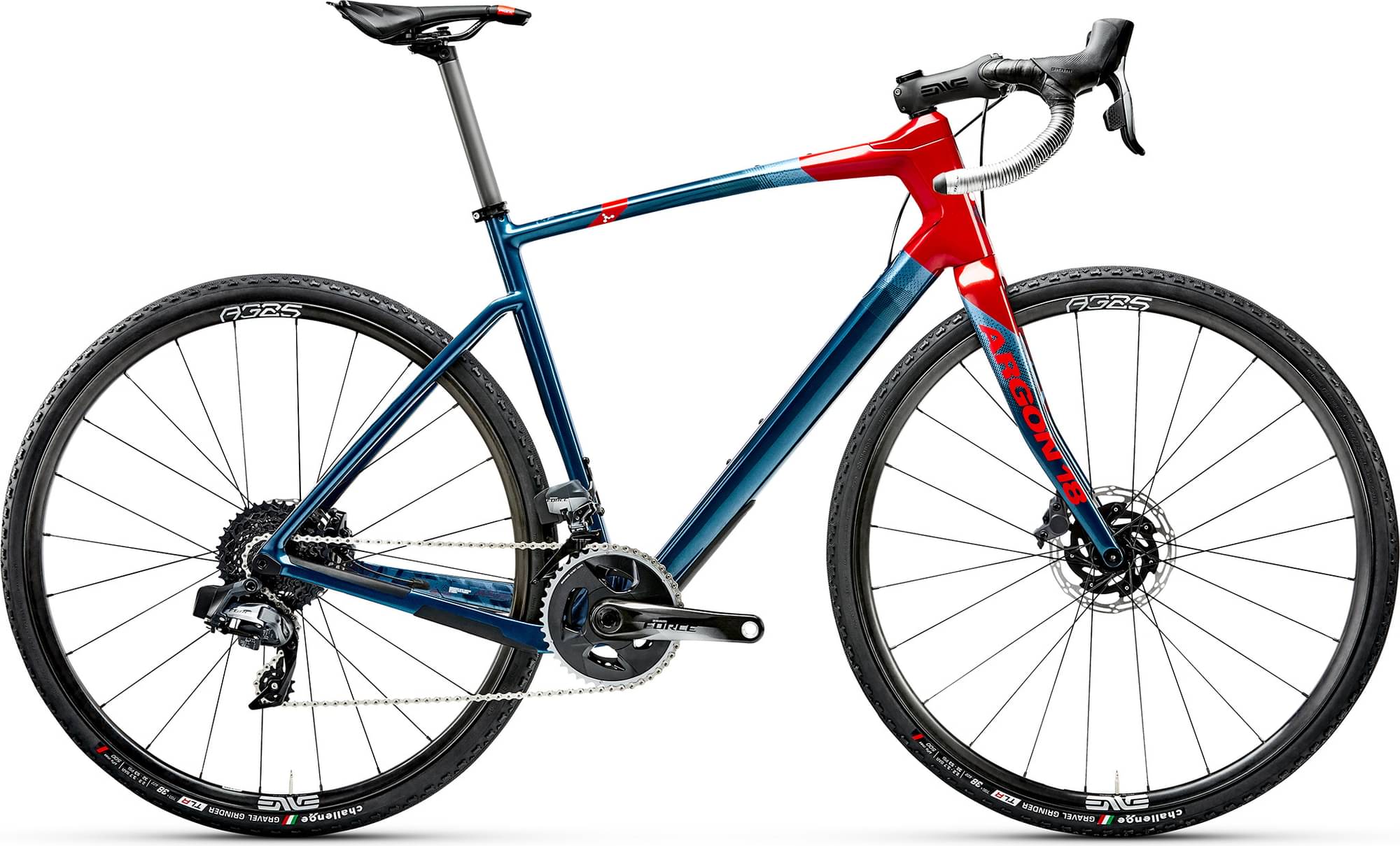

Dark Matter Frameset belongs to the Argon18 Dark model. 15 frames variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Gravel frames average price
If you want an acceptable Gravel frame you should know that the average price is 1505$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
Dark Matter Frameset components
Fork material
The fork on this frame is made out of carbon, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
Brakes
For your safety, it is important to have quality breaks on your bike. Argon 18 Dark Matter Frameset has Mechanical Disc brakes installed. They deliver good performance and cost less than hydraulic disk brakes. However, performance-wise there is room for improvement.
