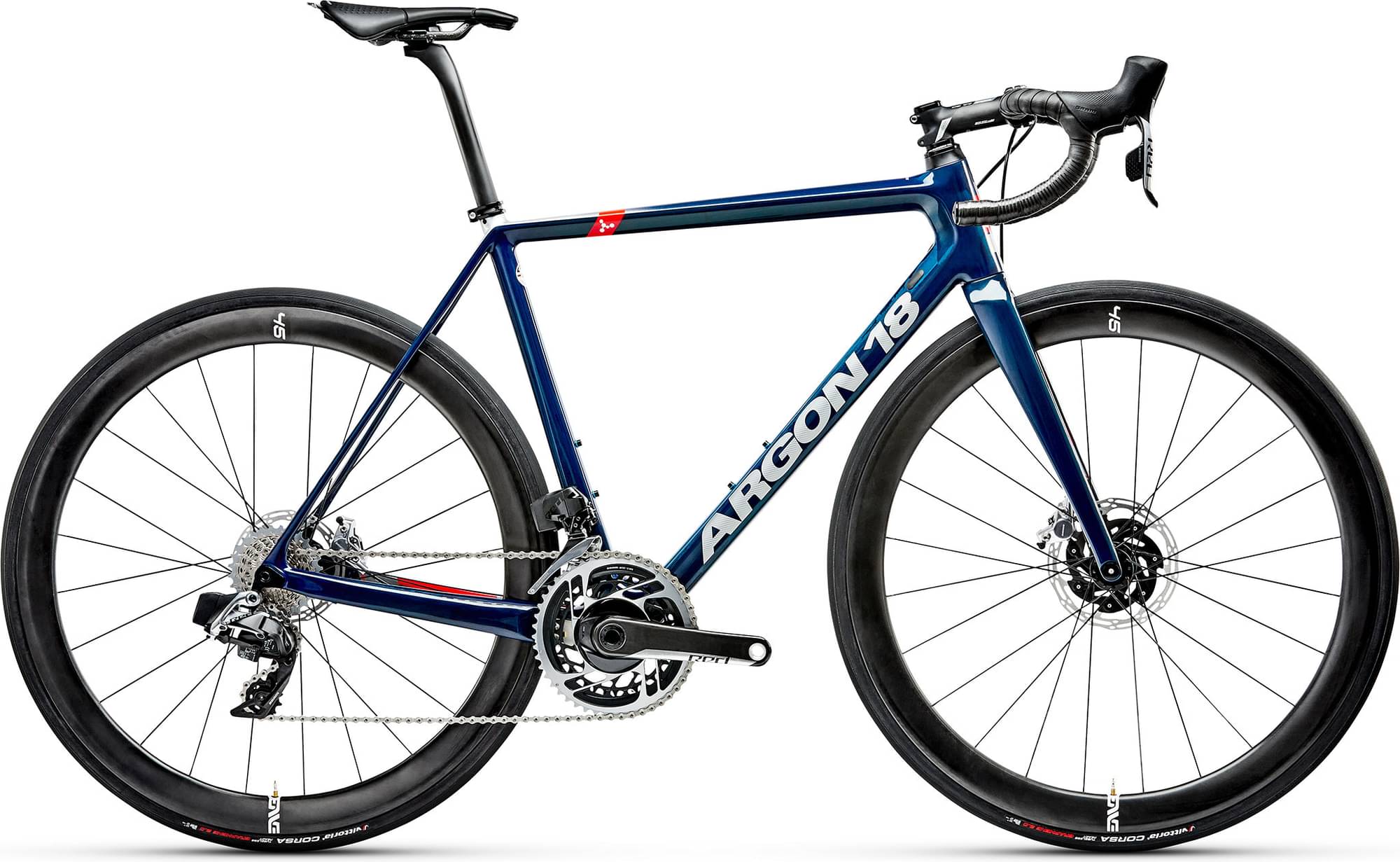

Argon 18 Gallium Pro Disc Frameset 2021
2021 Road
Estimate price |
3,500$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Gallium Pro Disc
Suspension Fork
Gallium Pro Disc specific
Drivetrain
Bottom Bracket
BB86
Cockpit
Headset
FSA 37 + 3D + w/ TH881-1
Seat
Seatpost
Argon 18 – TDS Race Carbon 27.2mm (included with frameset)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 53cm | 56cm | 59cm | 62cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.27 mm | 1.29 mm | 1.34 mm | 1.39 mm | 1.43 mm | 1.46 mm |
| Bottom Bracket Height | 271 mm | 266 mm | 261 mm | 261 mm | 261 mm | 261 mm |
| Front Center | 564 mm | 568 mm | 578 mm | 594 mm | 606 mm | 617 mm |
| Rake | 43 mm | 43 mm | 42 mm | 43 mm | 43 mm | 44 mm |
| Trail | 70 mm | 64 mm | 61 mm | 60 mm | 60 mm | 57 mm |
| Stack | 477 mm | 495 mm | 526 mm | 555 mm | 578 mm | 599 mm |
| Reach | 377 mm | 385 mm | 392 mm | 398 mm | 404 mm | 411 mm |
| Top Tube Length | 502 mm | 522 mm | 542 mm | 562 mm | 580 mm | 599 mm |
| Seat Tube Angle | 75.5 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 420 mm | 455 mm | 493 mm | 530 mm | 565 mm | 595 mm |
| Head Tube Angle | 71 ° | 72 ° | 72.7 ° | 72.7 ° | 72.7 ° | 73 ° |
| Head Tube Length | 75 mm | 85 mm | 110 mm | 140 mm | 165 mm | 185 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 973 mm | 976 mm | 984 mm | 1000 mm | 1013 mm | 1024 mm |
| Bottom Bracket Drop | 65 mm | 70 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 677 mm | 703 mm | 733 mm | 767 mm | 797 mm | 823 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
Gallium Pro Disc Frameset is part of the Argon18 Gallium model. 34 frames variations carry this model name so far. You can easily view all of the Argon18 Gallium frames models from 2021, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Race frames average price
If you want an acceptable Race frame you should know that the average price is 2445$. However, you could also get a good Race frame even if you pay a lower amount than the average price. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
This frame was released in 2021 and its price was 3500$. Comparing this to the average Race frame price, we see that the price is 43.15% more expensive.
Overview of components
Fork material
The fork on this frame is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
