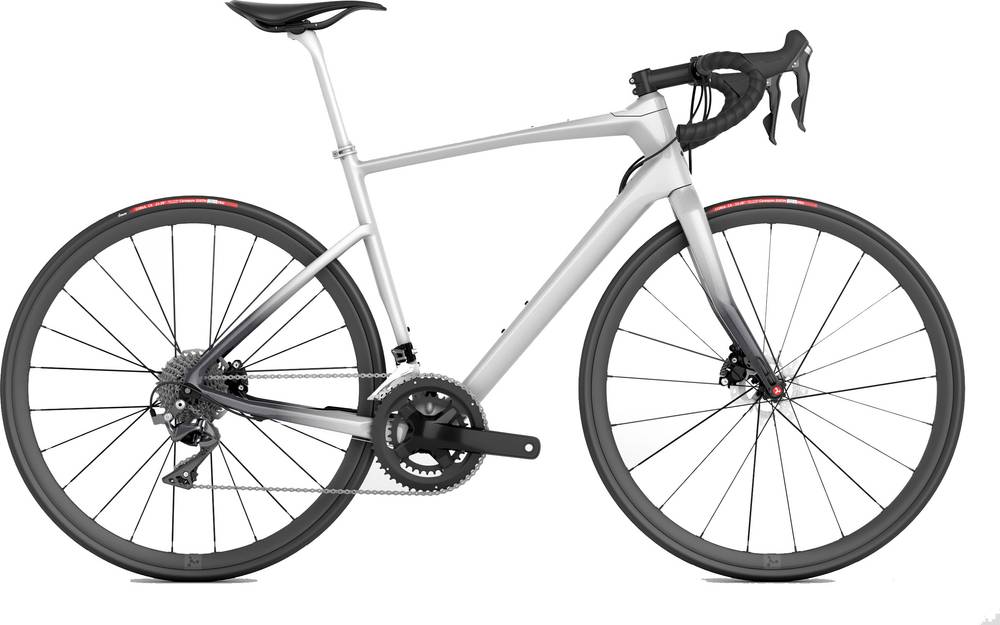

Argon 18 Mercedes-Benz Style Silver 47 Shimano Ultegra 2018
2018 Road
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon
Drivetrain
Rear Derailleur
Shimano Ultegra RX800 Direct Mount
Front Derailleur
Shimano Ultegra R8000 Braze-On
Shift Levers
Shimano 105 R7020
Cassette
Shimano Ultegra R8000 11/28
Crank
FSA SL-K 50/34
Bottom Bracket
FSA BB Press Fit EL-230
Chain
Shimano HG701-11
Wheels
Rims
Vision Trimax 30 Disc
Tires
Challenge Paris Roubaix Race 700x27
Brakes
Brakes
Shimano 105 R7070
Brake Levers
Shimano 105 R7020
Disk Rotors
Shimano RT-70 FR: 160mm RR: 140mm
Cockpit
Stem
FSA Energy
Handlebar
FSA Energy Compact
Headset
FSA 30+ 3D 1"1/2
Seat
Saddle
Fabric ALM-ALL
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.46 mm | 1.47 mm | 1.49 mm | 1.51 mm | 1.53 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 258 mm | 258 mm | 261 mm | 261 mm |
| Front Center | 577 mm | 585 mm | 589 mm | 605 mm | 621 mm | 634 mm |
| Rake | 52 mm | 52 mm | 47 mm | 47 mm | 46 mm | 47 mm |
| Trail | 66 mm | 60 mm | 61 mm | 61 mm | 62 mm | 58 mm |
| Stack | 522 mm | 542 mm | 562 mm | 583 mm | 604 mm | 627 mm |
| Reach | 362 mm | 372 mm | 382 mm | 391 mm | 400 mm | 410 mm |
| Top Tube Length | 499 mm | 519 mm | 540 mm | 561 mm | 583 mm | 607 mm |
| Seat Tube Angle | 75.5 ° | 74.9 ° | 74.3 ° | 73.7 ° | 73.1 ° | 72.5 ° |
| Seat Tube Length | 420 mm | 450 mm | 485 mm | 520 mm | 555 mm | 590 mm |
| Head Tube Angle | 70.3 ° | 71.3 ° | 72 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 91 mm | 108 mm | 127 mm | 149 mm | 174 mm | 196 mm |
| Chainstay Length | 420 mm | 420 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 984 mm | 992 mm | 1000 mm | 1016 mm | 1033 mm | 1046 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 78 mm | 78 mm | 75 mm | 75 mm |
| Standover Height | 676 mm | 703 mm | 737 mm | 767 mm | 800 mm | 830 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
Mercedes-Benz Style Silver 47 Shimano Ultegra is part of the Argon18 Mercedes Benz model. Argon 18 launched 2 bikes of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Endurance bikes average price
According to our math, the average price for a trustworthy Endurance bike is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork material
Mercedes-Benz Style Silver 47 Shimano Ultegra has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The wheels on Mercedes-Benz Style Silver 47 Shimano Ultegra are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Mercedes-Benz Style Silver 47 Shimano Ultegra has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
