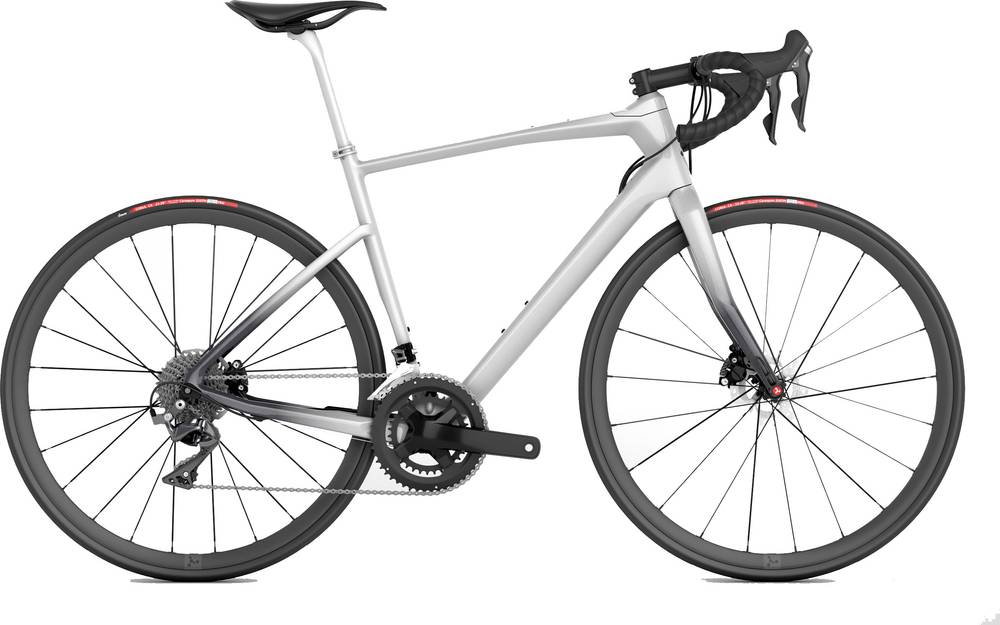

Argon 18 Mercedes-Benz Style Silver 47 Shimano Ultegra Di2 2018
2018 Road
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2, FSA -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon
Drivetrain
Rear Derailleur
Shimano Ultegra Di2 R8050 Direct Mount
Front Derailleur
Shimano Ultegra Di2 R8050 Braze-On
Shift Levers
Shimano Ultegra Di2 R8070
Cassette
Shimano Ultegra R8000 11/28
Crank
FSA SL-K 50/34
Bottom Bracket
FSA BB Press Fit EL-230
Chain
Shimano HG701-11
Wheels
Rims
Vision TriMax Carbon 40 CSI
Tires
Challenge Paris Roubaix Race 700x27
Brakes
Brakes
Shimano Ultegra R8070
Brake Levers
Shimano Ultegra Di2 R8070
Disk Rotors
Shimano Ultegra RT-800 FR: 160mm RR: 140mm
Cockpit
Stem
FSA Energy SCR
Handlebar
FSA Energy SCR
Headset
FSA 30+ 3D 1"1/2
Seat
Saddle
Fabric ALM-ALL
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.46 mm | 1.47 mm | 1.49 mm | 1.51 mm | 1.53 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 258 mm | 258 mm | 261 mm | 261 mm |
| Front Center | 577 mm | 585 mm | 589 mm | 605 mm | 621 mm | 634 mm |
| Rake | 52 mm | 52 mm | 47 mm | 47 mm | 46 mm | 47 mm |
| Trail | 66 mm | 60 mm | 61 mm | 61 mm | 62 mm | 58 mm |
| Stack | 522 mm | 542 mm | 562 mm | 583 mm | 604 mm | 627 mm |
| Reach | 362 mm | 372 mm | 382 mm | 391 mm | 400 mm | 410 mm |
| Top Tube Length | 499 mm | 519 mm | 540 mm | 561 mm | 583 mm | 607 mm |
| Seat Tube Angle | 75.5 ° | 74.9 ° | 74.3 ° | 73.7 ° | 73.1 ° | 72.5 ° |
| Seat Tube Length | 420 mm | 450 mm | 485 mm | 520 mm | 555 mm | 590 mm |
| Head Tube Angle | 70.3 ° | 71.3 ° | 72 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 91 mm | 108 mm | 127 mm | 149 mm | 174 mm | 196 mm |
| Chainstay Length | 420 mm | 420 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 984 mm | 992 mm | 1000 mm | 1016 mm | 1033 mm | 1046 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 78 mm | 78 mm | 75 mm | 75 mm |
| Standover Height | 676 mm | 703 mm | 737 mm | 767 mm | 800 mm | 830 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
Mercedes-Benz Style Silver 47 Shimano Ultegra Di2 is an Argon18 Mercedes Benz model. Argon 18 released 2 bikes variations of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Endurance bikes average price
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Mercedes-Benz Style Silver 47 Shimano Ultegra Di2 components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The wheels on Mercedes-Benz Style Silver 47 Shimano Ultegra Di2 are the 700c carbon type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Mercedes-Benz Style Silver 47 Shimano Ultegra Di2 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
