Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 200mm -
Travel Rear 200mm -
Fork Fox Factory Float 40
-
Groupset X01 -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Atherton AM200M
Suspension Fork
Fox 40 Factory, 200mm, 20x110mm
Rear Shock
Fox DHX2, Trunnion, 225x75mm
Drivetrain
Rear Derailleur
SRAM XO1 DH, 7 Speed
Shift Levers
SRAM XO1 DH, 7 Speed
Cassette
SRAM X01 DH 7 Speed XG-795, 11-25t
Crank
SRAM XO1 DH, 165mm
Bottom Bracket
SRAM DUB BS, 83mm
Chain
SRAM PC-X1
Chain Guide
MRP G4 ALLOY ISCG 05
Wheels
Rims
Stans Flow EX3 (29" Front, 27.5" Rear), 110mm Front, 157mm Rear
Tires
Continental Kryptotal, 29 x 2.4"
Brakes
Brakes
SRAM Code RSC
Cockpit
Stem
Renthal integra, 45x10mm
Handlebar
Renthal V2 Fatbar, 800mm, 30mm Rise
Grips
Renthal Lock-On Traction Ultratacky
Headset
FSA Semi-Integrated, 49/56
Seat
Saddle
ProLogo Proxim 450
Fit data

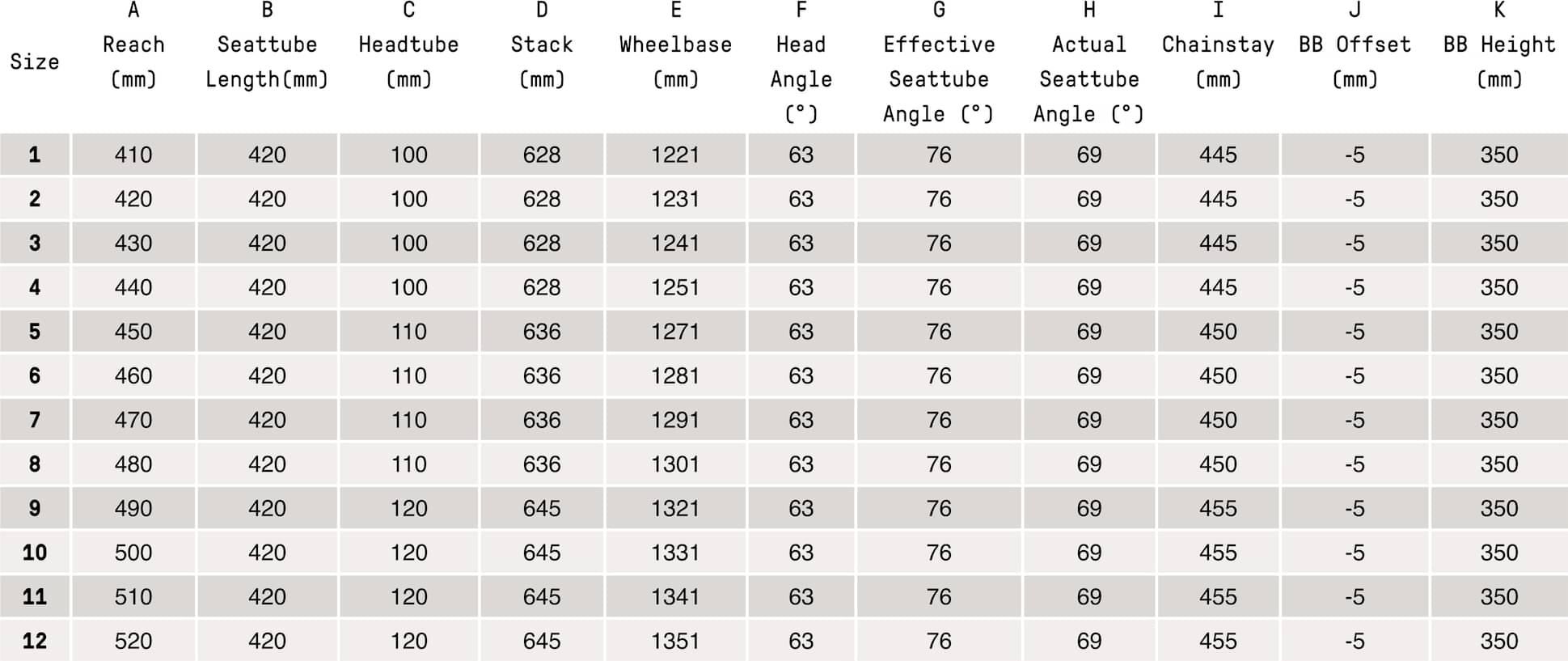

Geometry
Numbers for sizing and ride feel.
| Size | 41cm | 42cm | 43cm | 44cm | 45cm | 46cm | 47cm | 48cm | 49cm | 50cm | 51cm | 52cm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.49 mm | 1.45 mm | 1.42 mm | 1.41 mm | 1.38 mm | 1.35 mm | 1.32 mm | 1.31 mm | 1.29 mm | 1.26 mm | 1.24 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 783 mm | 793 mm | 803 mm | 813 mm | 829 mm | 839 mm | 849 mm | 859 mm | 872 mm | 882 mm | 1274 mm | 902 mm |
| Rake | 58 mm | 58 mm | 58 mm | 58 mm | 59 mm | 59 mm | 59 mm | 59 mm | 58 mm | 58 mm | 398 mm | 58 mm |
| Trail | 126 mm | 126 mm | 126 mm | 126 mm | 125 mm | 125 mm | 125 mm | 125 mm | 126 mm | 126 mm | -256 mm | 126 mm |
| Stack | 630 mm | 630 mm | 630 mm | 630 mm | 639 mm | 639 mm | 639 mm | 639 mm | 648 mm | 648 mm | 648 mm | 648 mm |
| Reach | 413 mm | 423 mm | 433 mm | 443 mm | 453 mm | 463 mm | 473 mm | 483 mm | 493 mm | 503 mm | 513 mm | 523 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° | 68 ° | 76 ° |
| Seat Tube Length | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Head Tube Angle | 63 ° | 63 ° | 63 ° | 63 ° | 63 ° | 63 ° | 63 ° | 63 ° | 63 ° | 63 ° | 63 ° | 63 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm | 110 mm | 110 mm | 110 mm | 110 mm | 120 mm | 120 mm | 120 mm | 120 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm | 453 mm | 453 mm | 453 mm | 453 mm | 458 mm | 458 mm | mm | 458 mm |
| Wheelbase | 1230 mm | 1240 mm | 1250 mm | 1260 mm | 1281 mm | 1291 mm | 1301 mm | 1311 mm | 1329 mm | 1339 mm | 1349 mm | 1359 mm |
| Bottom Bracket Drop | 23 mm | 23 mm | 23 mm | 23 mm | 23 mm | 23 mm | 23 mm | 23 mm | 23 mm | 23 mm | 23 mm | 23 mm |
| Standover Height | 705 mm | 705 mm | 705 mm | 705 mm | 705 mm | 705 mm | 705 mm | 705 mm | 705 mm | 705 mm | 705 mm | 705 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
Model Overview
AM.200M.1 is part of the Atherton Am200m model. Atherton released 4 bikes variations of this model so far. Take a sneak peek at all Atherton Am200m bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Atherton AM.200M.2 2023 has a starting price of 8332$. Atherton AM.200M.1 2023 on the other hand is the most expensive at 10218$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Downhill bikes average price
According to our math, the average price for a trustworthy Downhill bike is 3391$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Downhill bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2023 and its price was 10218$. Comparing the average cost of a Downhill bike to this one, you will see that AM.200M.1 price is 201.33% more expensive.
Overview of components
Fork
The AM.200M.1 comes factory-installed with the Fox Factory Float 40 fork. This has a travel range of 200mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the Fox DHX2 rear shock model, which has a travel of 200mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When leaving the production line, the AM.200M.1 model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The AM.200M.1 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
