Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 200mm -
Travel Rear 200mm -
Fork RockShox BoXXer
-
Groupset GX, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Atherton AM 200
Suspension Fork
RockShox Boxxer RC DebonAir, 200mm, 20x110mm
Rear Shock
RockShox Super Deluxe Coil RC World Cup, Trunnion, 225x75mm
Drivetrain
Rear Derailleur
SRAM GX DH, 7 Speed
Shift Levers
SRAM GX DH, 7 Speed
Cassette
SRAM PG-720, 11-25t
Crank
Truvativ Descendant DH, 165mm
Bottom Bracket
SRAM DUB, 83mm
Chain
SRAM PC-1110
Chain Guide
MRP G4 Alloy ISCG 05
Wheels
Rims
Stans Flow S1 29", 110mm Front, 157mm Rear
Tires
Continental Kryptotal, 29 x 2.4"
Brakes
Brakes
SRAM Code R
Cockpit
Stem
Renthal integra, 45x10mm
Handlebar
Renthal V2 Fatbar, 800mm, 30mm Rise
Grips
Renthal Lock-On Traction Ultratacky
Headset
FSA Semi-Integrated (1.5"), Zero Stack, 49/56
Seat
Saddle
WTB Volt Comp
Fit data

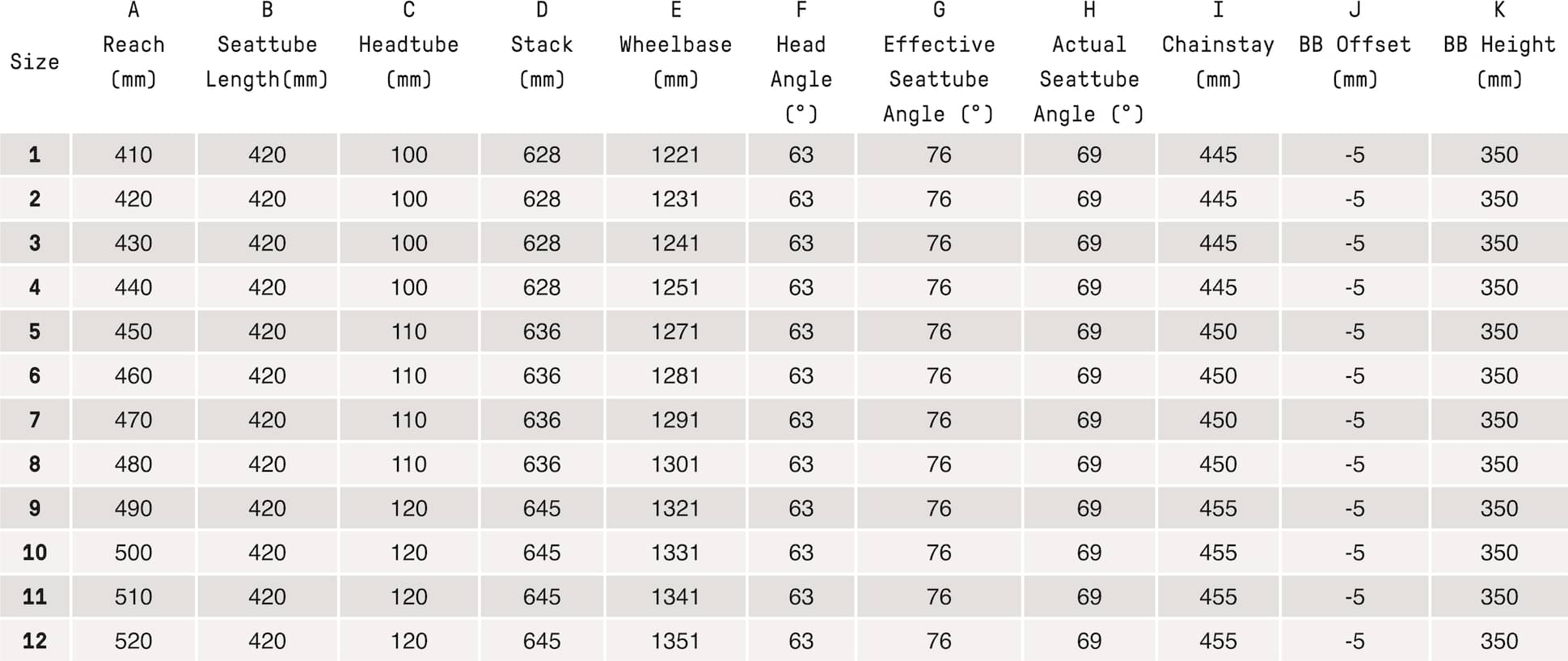

Geometry
Numbers for sizing and ride feel.
| Size | 41cm | 42cm | 43cm | 44cm | 45cm | 46cm | 47cm | 48cm | 49cm | 50cm | 51cm | 52cm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.49 mm | 1.45 mm | 1.42 mm | 1.41 mm | 1.38 mm | 1.35 mm | 0.229 mm | 1.3 mm | 1.29 mm | 1.26 mm | 1.24 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 783 mm | 793 mm | 803 mm | 813 mm | 829 mm | 839 mm | 849 mm | 859 mm | 872 mm | 882 mm | 892 mm | 902 mm |
| Rake | 58 mm | 58 mm | 58 mm | 58 mm | 59 mm | 59 mm | 59 mm | 298 mm | 62 mm | 58 mm | 58 mm | 58 mm |
| Trail | 126 mm | 126 mm | 126 mm | 126 mm | 125 mm | 125 mm | 125 mm | -144 mm | 121 mm | 126 mm | 126 mm | 126 mm |
| Stack | 630 mm | 630 mm | 630 mm | 630 mm | 639 mm | 639 mm | 639 mm | mm | 639 mm | 648 mm | 648 mm | 648 mm |
| Reach | 413 mm | 423 mm | 433 mm | 443 mm | 453 mm | 463 mm | 473 mm | 483 mm | 493 mm | 503 mm | 513 mm | 523 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Head Tube Angle | 63 ° | 63 ° | 63 ° | 63 ° | 63 ° | 63 ° | 63 ° | 63 ° | 63 ° | 63 ° | 63 ° | 63 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm | 110 mm | 110 mm | 110 mm | 110 mm | 120 mm | 120 mm | 120 mm | 120 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm | 453 mm | 453 mm | 453 mm | 453 mm | 458 mm | 458 mm | 458 mm | 458 mm |
| Wheelbase | 1230 mm | 1240 mm | 1250 mm | 1260 mm | 1281 mm | 1291 mm | 1301 mm | 1311 mm | 1329 mm | 1339 mm | 1349 mm | 1359 mm |
| Bottom Bracket Drop | 23 mm | 23 mm | 23 mm | 23 mm | 23 mm | 23 mm | 23 mm | 23 mm | 23 mm | 23 mm | 23 mm | 23 mm |
| Standover Height | 705 mm | 708 mm | 708 mm | 708 mm | 708 mm | 708 mm | 708 mm | 708 mm | 708 mm | 708 mm | 708 mm | 704 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
Model Overview
AM.200M.2 completes the Atherton Am200m model. Atherton launched 4 bikes of this model so far. You can easily view all of the Atherton Am200m bikes models from 2022, here.
Model range prices
The most economical model, the Atherton AM.200M.2 2022 has a starting price of 8332$. Atherton AM.200M.1 2022 on the other hand is the most expensive at 10218$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Downhill bikes
Our math shows that the average cost of a dependable Downhill bike is 3391$. However, this doesn’t mean that if you spend less money on a Downhill bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 8332$. Comparing this to the average Downhill bike price, we see that the price is 145.71% more expensive.
Overview of components
Fork
The AM.200M.2 comes factory-installed with the RockShox BoXXer fork. This has a travel range of 200mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The AM.200M.2 has a rear shock with a travel of 200mm. The model RockShox Super Deluxe Coil RC World Cup is the one installed in this bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When it comes to wheels, the AM.200M.2 bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The AM.200M.2 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
