Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 60mm -
Fork RST VITA
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15"
145cm - 158cm
17"
155cm - 172cm
19"
170cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
triple butted alloy 6061 700c
Suspension Fork
RST Vita TnL oil, lock out (60 mm)
Drivetrain
Rear Derailleur
SHIMANO Deore
Front Derailleur
SHIMANO Deore (31.8)
Shift Levers
SHIMANO Deore (30)
Cassette
SHIMANO HG50-10 11-36 (10)
Crank
SHIMANO Deore 44-32-24 teeth 170 / 175 mm cranks
Chain
KMC X10-1
Pedals
AUTHOR Non Slip alloy
Wheels
Front Hub
AUTHOR Radon 32 holes
Rear Hub
AUTHOR Radon 32 holes
Rims
AUTHOR Radon Cross 32 holes
Spokes
black stainless steel 2.0 mm
Tires
AUTHOR PANARACER Silk Road Cross 700 x 42c
Brakes
Brakes
TEKTRO Gemini disc hydraulic (6' rotors)
Cockpit
Stem
AUTHOR alloy
Handlebar
AUTHOR 15 mm 640 / 660 mm
Grips
AUTHOR Microtech ErgoGrip
Seat
Saddle
AUTHOR Area Gel
Seatpost
AUTHOR alloy (27.2)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" |
|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | mm | mm |
| Front Center | 614 mm | 634 mm | 655 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 144 mm | mm | mm |
| Stack | 603 mm | mm | mm |
| Reach | 436 mm | mm | mm |
| Top Tube Length | 548 mm | 568 mm | 588 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1045 mm | 1065 mm | 1086 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 145 cm | 155 cm | 170 cm |
| Rider Max Height | 158 cm | 172 cm | 185 cm |
About this model

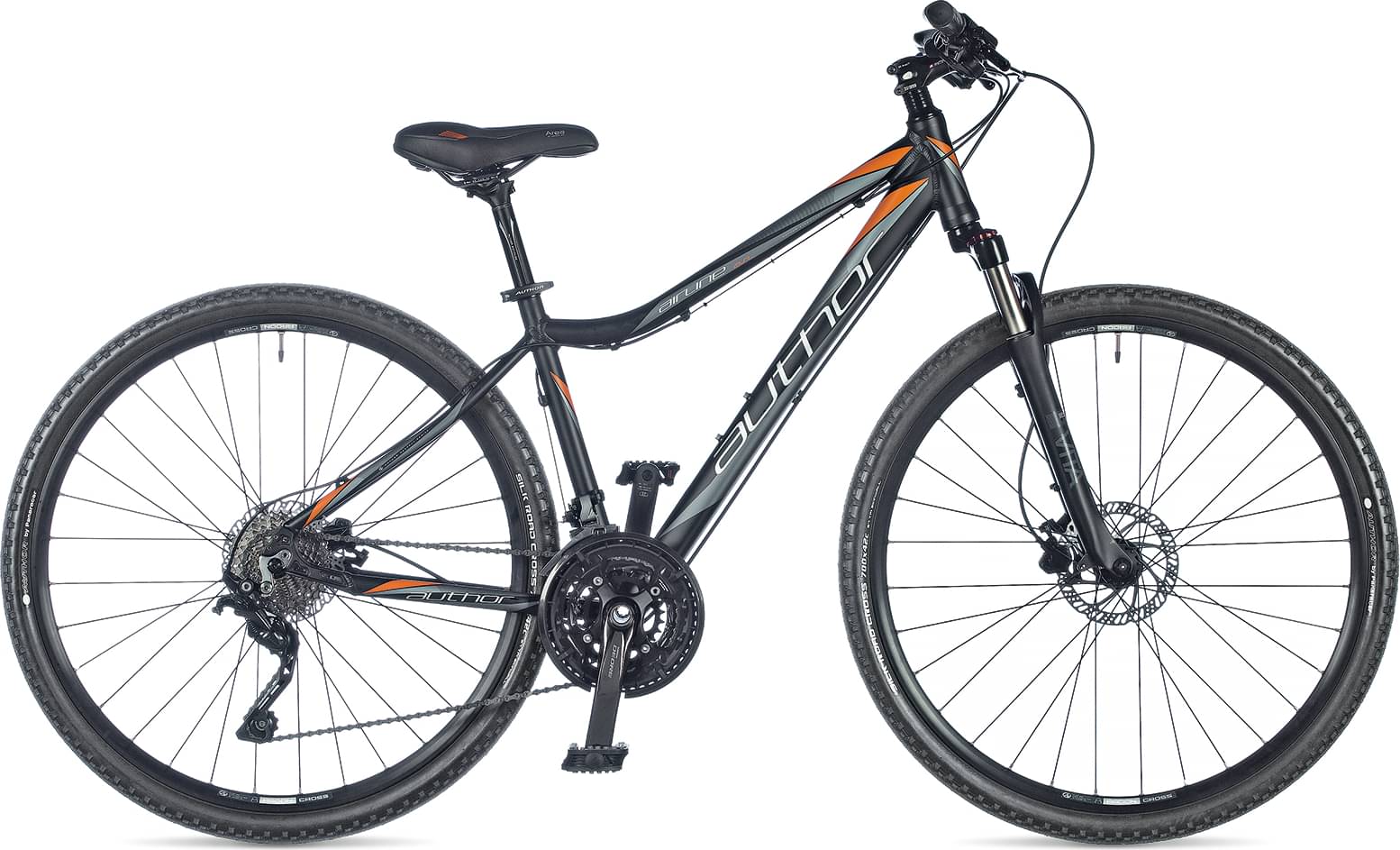

Airline ASL is part of the Author Airline model. Author launched 14 bikes of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Hybrid bikes
If you want an acceptable Hybrid bike you should know that the average price is 562$. However, you could also get a good Hybrid bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Hybrid bikes
The average weight for Hybrid bikes is 13.85 kg (30.53 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
a bit lighter than average, Airline ASL has a weight of 12.6 kg (27.78 lbs). In short, the average Hybrid bike weight is 9.92% higher than this one.
Airline ASL components
Fork
The Airline ASL comes factory-installed with the RST VITA fork. This has a travel range of 60mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When it comes to wheels, the Airline ASL bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Airline ASL comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 3 sizes. They vary from 145 cm – 185 cm (4.76 ft – 6.07 ft). In short, you can easily find one that suits you.
