Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 80mm -
Fork RST VIV AIR
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
17"
155cm - 172cm
19"
170cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
triple butted alloy 6061 29" (ASL)
Suspension Fork
RST Viv Air TnL air, lock out (80 mm)
Drivetrain
Rear Derailleur
SHIMANO Deore
Front Derailleur
SHIMANO Deore (31.8)
Shift Levers
SHIMANO Deore (30)
Cassette
SHIMANO HG50-10, 11-36 (10)
Crank
SHIMANO Deore, 44-32-24 teeth, 170 / 175 mm cranks
Chain
KMC X10
Pedals
AUTHOR Non Slip alloy
Wheels
Front Hub
AUTHOR Radon, 32 holes
Rear Hub
AUTHOR Radon, 32 holes
Rims
AUTHOR Xenon 29, 32 holes
Spokes
black stainless steel 2.0 mm
Tires
AUTHOR Speed Master 29" × 1.75"
Brakes
Brakes
TEKTRO HD-T530, disc hydraulic (6" rotors)
Cockpit
Stem
AUTHOR alloy
Handlebar
AUTHOR 15 mm, 660 / 680 mm
Grips
AUTHOR Microtech ErgoGrip
Seat
Saddle
AUTHOR Area Gel
Seatpost
AUTHOR alloy (27.2)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 17" | 19" |
|---|---|---|
| Front Center | 634 mm | 655 mm |
| Rake | 44 mm | 44 mm |
| Top Tube Length | 568 mm | 588 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° |
| Seat Tube Length | 432 mm | 483 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° |
| Head Tube Length | 120 mm | 130 mm |
| Chainstay Length | 448 mm | 448 mm |
| Wheelbase | 1075 mm | 1096 mm |
| Bottom Bracket Drop | 60 mm | 60 mm |
| Wheels | 29" | 29" |
| Rider Min Height | 155 cm | 170 cm |
| Rider Max Height | 172 cm | 185 cm |
About this model

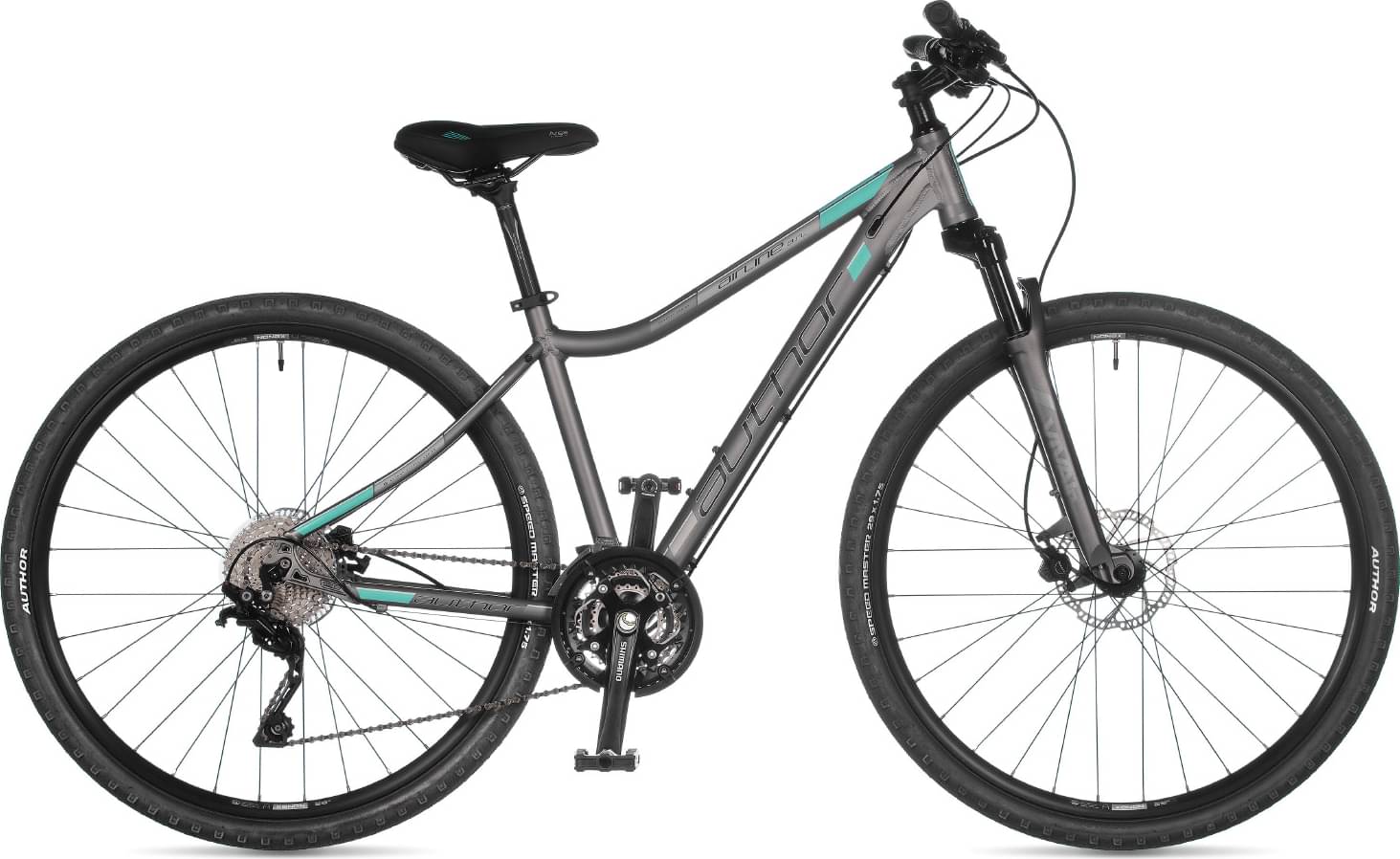

Airline ASL is an Author Airline model. 14 bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Hybrid bikes average price
If you want to purchase a solid Hybrid bike, it is important to know that the average cost is 562$. However, even though the average price of a Hybrid bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Hybrid bikes average weight
The average weight for Hybrid bikes is 13.99 kg (30.84 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
a bit lighter than average, Airline ASL has a weight of 13.3 kg (29.32 lbs). To sum up, it’s 5.19% lighter than the average weight of Hybrid bikes.
Airline ASL components
Fork
The RST VIV AIR is included from the factory. It has a travel distance of 80mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, Author Airline ASL 2023, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Author Airline ASL is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Airline ASL comes in 2 sizes, that range from 155 cm – 185 cm (5.09 ft – 6.07 ft). In conclusion, finding one for you shouldn’t be a problem.
