Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 80mm -
Fork RST VOGUE
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15"
145cm - 158cm
17"
155cm - 172cm
19"
170cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
triple butted alloy 6061 29" (ASL)
Suspension Fork
RST Vogue Air TRL air, remote lock out (80 mm)
Drivetrain
Rear Derailleur
SHIMANO XT
Front Derailleur
SHIMANO Deore (31.8)
Shift Levers
SHIMANO Deore (30)
Cassette
SHIMANO HG50-10 11-36 (10)
Crank
SHIMANO Deore 44-32-24 teeth 170 / 175 mm cranks
Chain
KMC X10
Pedals
AUTHOR oneside clipless
Wheels
Front Hub
AUTHOR Xenon 32 holes
Rear Hub
AUTHOR Xenon 32 holes
Rims
AUTHOR Xenon 29 32 holes
Spokes
black stainless steel 2.0 mm
Tires
AUTHOR Speed Master Kevlar 29"x 1.75"
Brakes
Brakes
TEKTRO Gemini disc hydraulic (6" rotors)
Cockpit
Stem
AUTHOR alloy
Handlebar
AUTHOR 15 mm 660 / 680 mm
Grips
AUTHOR Microtech ErgoGrip
Seat
Saddle
AUTHOR Area Gel
Seatpost
AUTHOR alloy (27.2)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" |
|---|---|---|---|
| Front Center | 614 mm | 634 mm | 655 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Top Tube Length | 548 mm | 568 mm | 588 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1055 mm | 1075 mm | 1096 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 145 cm | 155 cm | 170 cm |
| Rider Max Height | 158 cm | 172 cm | 185 cm |
About this model

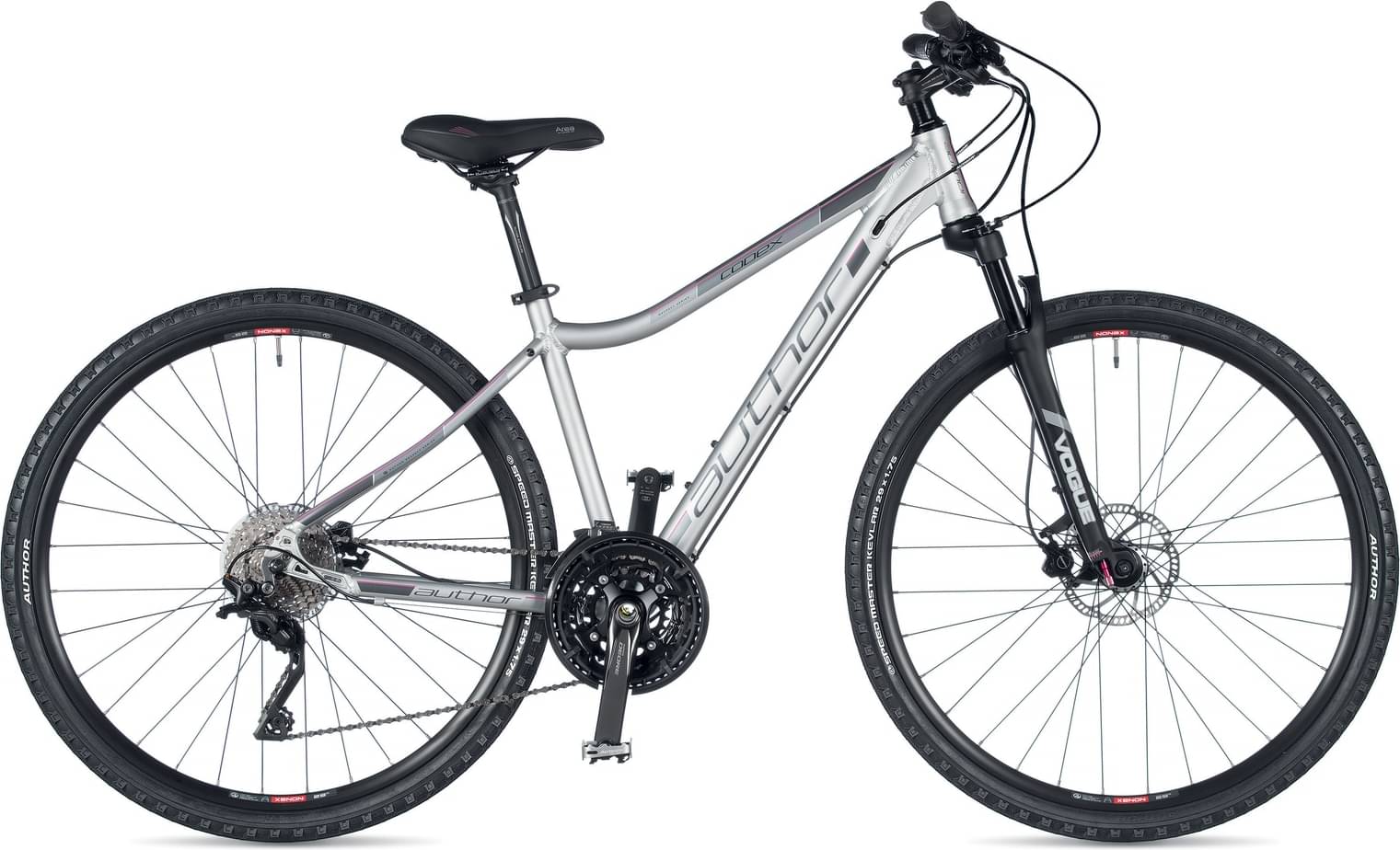

Codex ASL belongs to the Author Codex model. Author launched 17 bikes of this model so far. Take a sneak peek at all Author Codex bikes models from 2019, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Hybrid bikes
If you want an acceptable Hybrid bike you should know that the average price is 562$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Hybrid bikes
On a deeper look, we notice that the average weight of a Hybrid bike is 13.85 kg (30.53 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Author Codex ASL it’s weighing 12.6 kg (27.78 lbs). At this weight, is a bit lighter than average. In short, the average Hybrid bike weight is 9.92% higher than this one.
Overview of components
Fork
Author Codex ASL 2019 bike is equipped with the RST VOGUE fork, and has 80mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The wheels on Codex ASL are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Author Codex ASL has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 145 cm – 185 cm (4.76 ft – 6.07 ft). In short, you can easily find one that suits you.
