Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 60mm -
Fork RST NEON
-
Groupset Tourney, Shimano -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Rim
Sizing
Recommended size guide.
15"
145cm - 158cm
17"
155cm - 172cm
19"
170cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
alloy 6061 (ASL)
Suspension Fork
RST Neon T (60 mm)
Drivetrain
Rear Derailleur
SHIMANO TY500
Front Derailleur
SHIMANO TY510 (31.8)
Shift Levers
SHIMANO (21)
Cassette
SHIMANO MF-TZ510-7, 14-28 (7)
Crank
PROWHEEL, 42-34-24 teeth, 170 mm cranks
Chain
KMC Z7
Pedals
resin
Wheels
Front Hub
QUANDO, 36 holes
Rear Hub
QUANDO, 36 holes
Rims
alloy, 36 holes
Spokes
steel
Tires
AUTHOR Cross 700 × 38c
Brakes
Brakes
TEKTRO V
Cockpit
Stem
ZOOM alloy
Handlebar
steel, 20 mm, 660 mm
Grips
AUTHOR high density foam
Seat
Saddle
AUTHOR Area
Seatpost
ZOOM alloy (27.2)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" |
|---|---|---|---|
| Front Center | 621 mm | 642 mm | 662 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Top Tube Length | 550 mm | 570 mm | 590 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1054 mm | 1075 mm | 1095 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 145 cm | 155 cm | 170 cm |
| Rider Max Height | 158 cm | 172 cm | 185 cm |
About this model

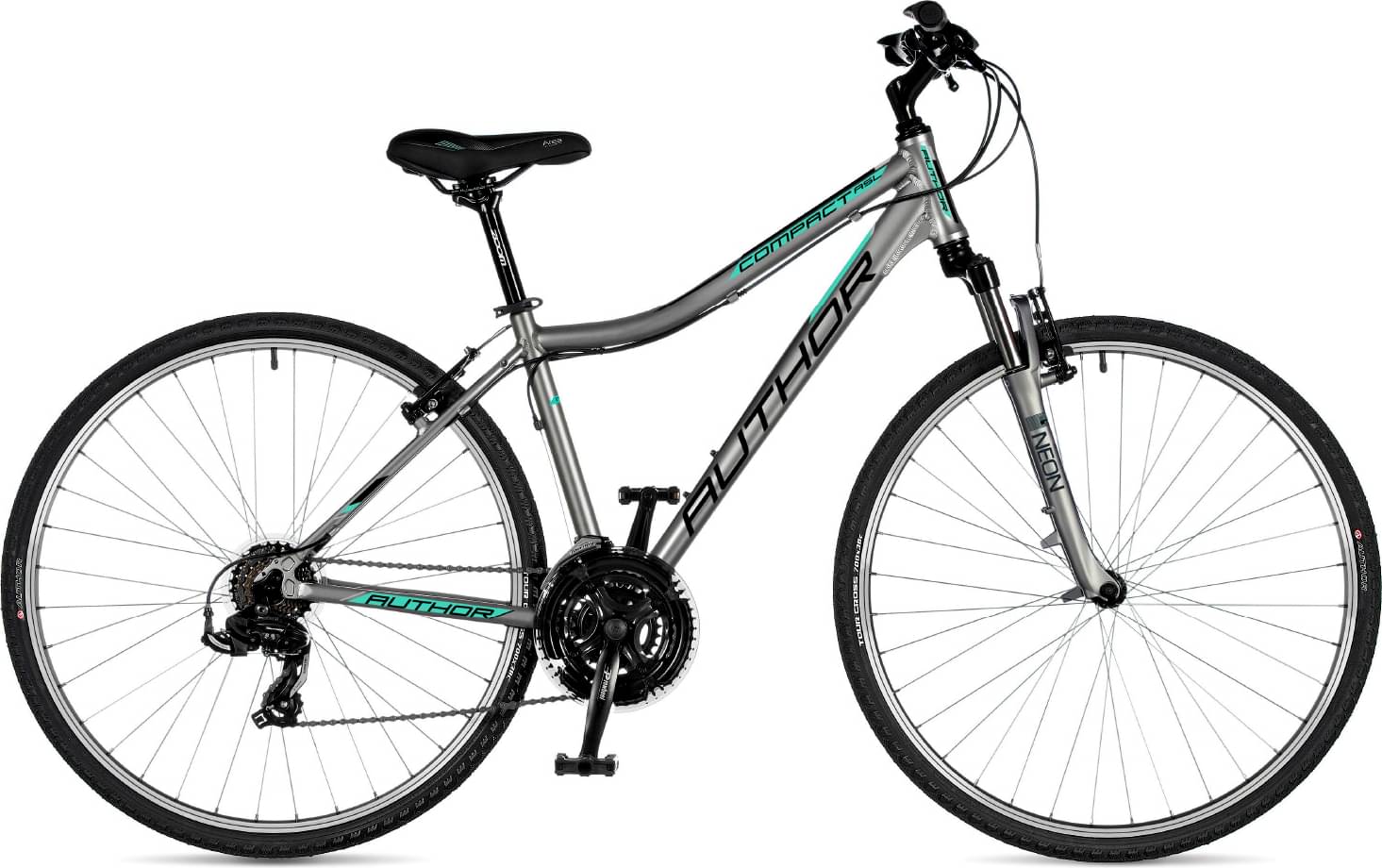

Compact ASL is an Author Compact model. There are 13 bikes that carry this model name. Check out the entire range from 2024 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Hybrid bikes average price
If you want to purchase a solid Hybrid bike, it is important to know that the average cost is 562$. However, even though the average price of a Hybrid bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Hybrid bikes
Hybrid bikes have an average weight of 13.85 kg (30.53 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 12.5 kg (27.56 lbs), the Compact ASL model is considerably lighter than average. In other words, this model is 10.8% lighter than the average Hybrid bike.
Compact ASL components
Fork
The fork installed on this bike is the RST NEON model. The travel on this model is 60mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When it comes to wheels, the Compact ASL bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
Sizes
Compact ASL comes in 3 sizes, that range from 145 cm – 185 cm (4.76 ft – 6.07 ft). In conclusion, finding one for you shouldn’t be a problem.
