Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RST F1RST
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery SHIMANO E-8035 Li-Ion, 36 V, 14 Ah, 504 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
17"
168cm - 180cm
19"
177cm - 189cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
double butted hydroformed alloy 6061 29" (integrated battery)
Suspension Fork
RST F1RST 110-15 Air TnL air, lock out 15 mm thru axle boost, 1.5" tapered column (100 mm)
Drivetrain
Rear Derailleur
SHIMANO Deore
Shift Levers
SHIMANO Deore (11)
Cassette
SHIMANO CS-M5100-11 11-51 (11)
Crank
SHIMANO Steps E-8000 38 teeth 170 / 175 mm cranks
Bottom Bracket
STEPS, press-fit
Chain
KMC e11T
Pedals
HT platform
Wheels
Front Hub
QUANDO 15 × 110 mm thru front axle 12 × 148 mm thru rear axle 32 holes
Rear Hub
QUANDO 15 × 110 mm thru front axle 12 × 148 mm thru rear axle 32 holes
Rims
AUTHOR E-Krypton 29 32 holes
Spokes
black stainless steel 2.2 mm
Tires
VITTORIA Barzo G2.0 aramid 27.5" × 2.25"
Brakes
Brakes
TRP Slate T4 disc hydraulic (7" rotors)
Cockpit
Stem
AUTHOR alloy
Handlebar
AUTHOR 15 mm 700 / 720 mm
Grips
AUTHOR high density foam
Seat
Saddle
AUTHOR E-Donna
Seatpost
AUTHOR alloy (30.9)
Motor & Battery
Motor
SHIMANO Steps E-7000, 250 W
Battery
SHIMANO E-8035 Li-Ion, 36 V, 14 Ah, 504 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 17" | 19" |
|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.52 mm |
| Bottom Bracket Height | 316 mm | 316 mm |
| Front Center | 696 mm | 717 mm |
| Rake | 51 mm | 51 mm |
| Trail | 97 mm | 96 mm |
| Stack | 633 mm | 642 mm |
| Reach | 404 mm | 421 mm |
| Top Tube Length | 598 mm | 618 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 432 mm | 483 mm |
| Head Tube Angle | 68 ° | 68 ° |
| Head Tube Length | 120 mm | 130 mm |
| Chainstay Length | 473 mm | 473 mm |
| Wheelbase | 1163 mm | 1184 mm |
| Bottom Bracket Drop | 58 mm | 58 mm |
| Wheels | 29" | 29" |
| Rider Min Height | 168 cm | 177 cm |
| Rider Max Height | 180 cm | 189 cm |
About this model

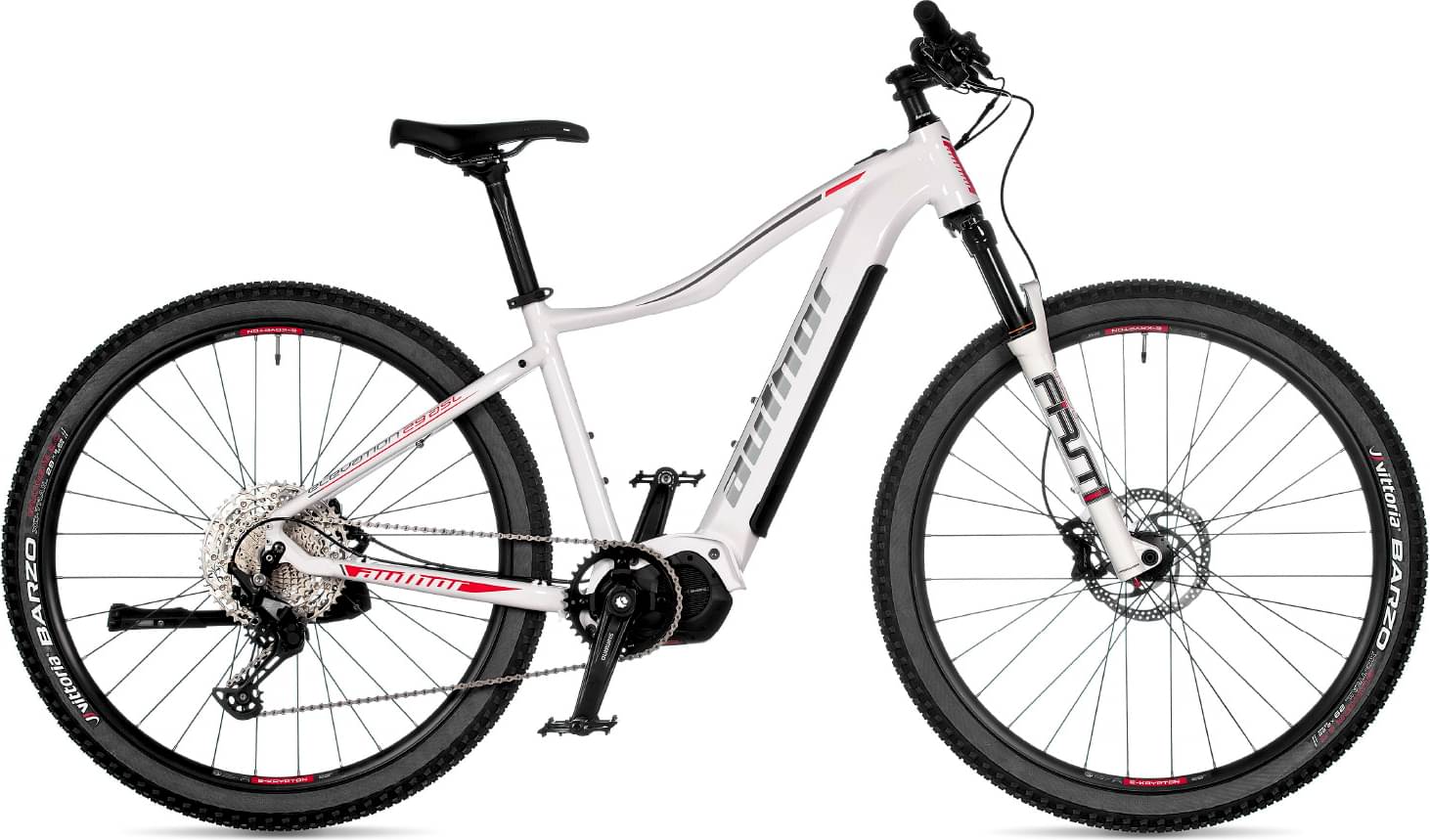

Elevation 29 ASL is an Author E Elevation model. 7 e-bikes variations carry this model name so far. Take a sneak peek at all Author E Elevation e-bikes models from 2022, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry e-bikes average price
According to our math, the average price for a trustworthy Crosscountry e-bike is 2453$. However, even though the average price of a Crosscountry e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Crosscountry e-bikes
The average weight for Crosscountry e-bikes is 23.21 kg (51.17 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 21.8 kg (48.06 lbs), Author e-bike is a bit lighter than average. In conclusion, the average Crosscountry e-bike weighs 6.47% more than Elevation 29 ASL.
Elevation 29 ASL components
Fork
The RST F1RST is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
As for the wheels, Author Elevation 29 ASL 2022, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Author Elevation 29 ASL is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Author Elevation 29 ASL e-bike has 2 sizes, in the range of 168 cm – 189 cm (5.51 ft – 6.2 ft). In conclusion, it won’t take much to find one that’s right for you.
