Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork RST AERIAL
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery SHIMANO E-8035 Li-Ion, 36 V, 14 Ah, 504 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
17"
158cm - 172cm
19"
169cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
double butted hydroformed alloy 6061 27.5" (integrated battery)
Suspension Fork
RST Aerial 110-15 TnL air, lock out 15 mm thru axle boost, 1.5" tapered column (120 mm)
Drivetrain
Rear Derailleur
SHIMANO Deore
Shift Levers
SHIMANO Deore (10)
Cassette
SHIMANO CS-M4100-10 11-46 (10)
Crank
SHIMANO Steps E-5010 38 teeth 170 / 175 mm cranks
Bottom Bracket
STEPS, press-fit
Chain
KMC e10T
Pedals
HT platform
Wheels
Front Hub
QUANDO 15 × 110 mm thru front axle 12 × 148 mm thru rear axle 32 holes
Rear Hub
QUANDO 15 × 110 mm thru front axle 12 × 148 mm thru rear axle 32 holes
Rims
AUTHOR E-Krypton 27.5 32 holes
Spokes
black stainless steel 2.2 mm
Tires
CST Patrol 27.5" × 2.25"
Brakes
Brakes
TEKTRO Orion disc hydraulic (7" rotors)
Cockpit
Stem
AUTHOR alloy
Handlebar
AUTHOR 15 mm 680 / 700 mm
Grips
AUTHOR high density foam
Seat
Saddle
AUTHOR E-Donna
Seatpost
AUTHOR alloy (30.9)
Motor & Battery
Motor
SHIMANO Steps E-5000, 250 W
Battery
SHIMANO E-8035 Li-Ion, 36 V, 14 Ah, 504 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 17" | 19" |
|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.57 mm |
| Bottom Bracket Height | 304 mm | 304 mm |
| Front Center | 700 | 721 mm |
| Rake | 43 mm | 43 mm |
| Trail | 89 mm | 89 mm |
| Stack | 645 mm | 654 mm |
| Reach | 400 mm | 417 mm |
| Top Tube Length | 598 mm | 618 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 432 mm | 483 mm |
| Head Tube Angle | 68 ° | 68 ° |
| Head Tube Length | 120 mm | 130 mm |
| Chainstay Length | 458 mm | 458 mm |
| Wheelbase | 1153 mm | 1174 mm |
| Bottom Bracket Drop | 51 mm | 51 mm |
| Wheels | 27" | 27" |
| Rider Min Height | 158 cm | 169 cm |
| Rider Max Height | 172 cm | 184 cm |

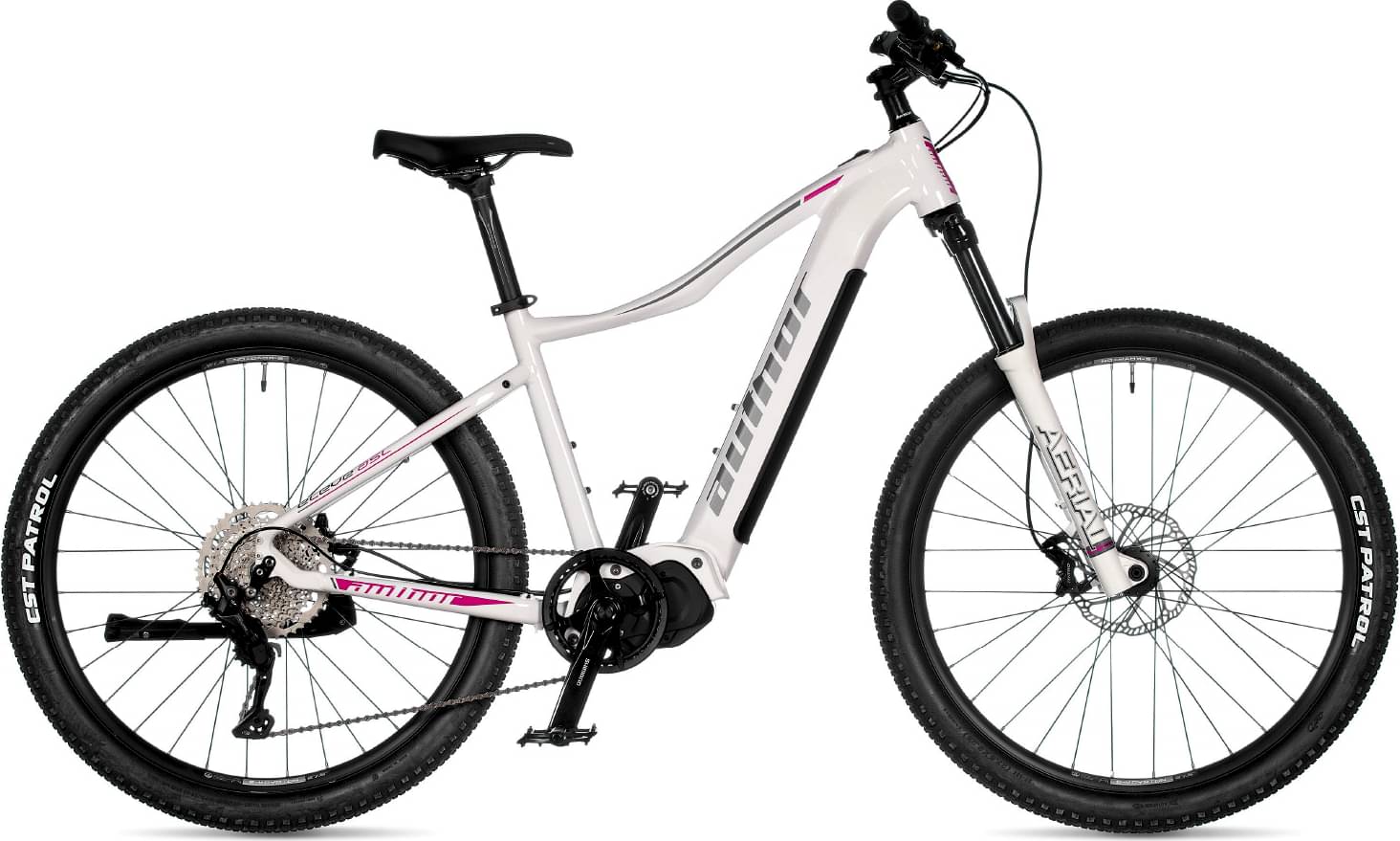

Model Overview
Eleve 27.5 ASL is an Author E Eleve model. Author released 3 e-bikes variations of this model so far. You can easily view all of the Author E Eleve e-bikes models from 2022, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail e-bikes
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Trail e-bikes average weight
Trail e-bikes weigh an average of 23.7 kg (52.25 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 22.2 kg (48.94 lbs), Author e-bike is a bit lighter than average. In other words, this model is 6.76% lighter than the average Trail e-bike.
Overview of components
Fork
Author Eleve 27.5 ASL 2022 e-bike is equipped with the RST AERIAL fork, and has 120mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When leaving the production line, the Eleve 27.5 ASL model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Eleve 27.5 ASL comes in 2 sizes, that range from 158 cm – 184 cm (5.18 ft – 6.04 ft). In conclusion, it won’t take much to find one that’s right for you.
