Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 60mm -
Fork RST NOVA
-
Groupset Tourney, Acera -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
16"
150cm - 168cm
18"
165cm - 178cm
20"
175cm - 188cm
22"
185cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
alloy 6061
Suspension Fork
RST Nova ML lock out (60 mm)
Drivetrain
Rear Derailleur
SHIMANO TX800
Front Derailleur
SHIMANO TY710 (31.8)
Shift Levers
SHIMANO Acera (24)
Cassette
SHIMANO HG200-8 12-32 (8)
Crank
PROWHEEL 48-38-28 teeth 170 / 175 mm cranks
Chain
KMC Z8.3
Pedals
AUTHOR Non Slip resin
Wheels
Front Hub
QUANDO 32 holes
Rear Hub
QUANDO 32 holes
Rims
AUTHOR Xenon 29 32 holes
Spokes
black steel
Tires
AUTHOR Cross 700 × 38c
Brakes
Brakes
TEKTRO disc hydraulic (6" rotors)
Cockpit
Stem
ZOOM alloy
Handlebar
steel 20 mm 680mm
Grips
AUTHOR ErgoGrip
Seat
Saddle
AUTHOR Sphere
Seatpost
ZOOM alloy (27.2)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Front Center | 637 mm | 652 mm | 668 mm | 676 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Top Tube Length | 566 mm | 586 mm | 606 mm | 626 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 406 mm | 457 mm | 508 mm | 559 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71.5 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 180 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1076 mm | 1091 mm | 1107 mm | 1115 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 168 cm | 178 cm | 188 cm | 200 cm |
About this model

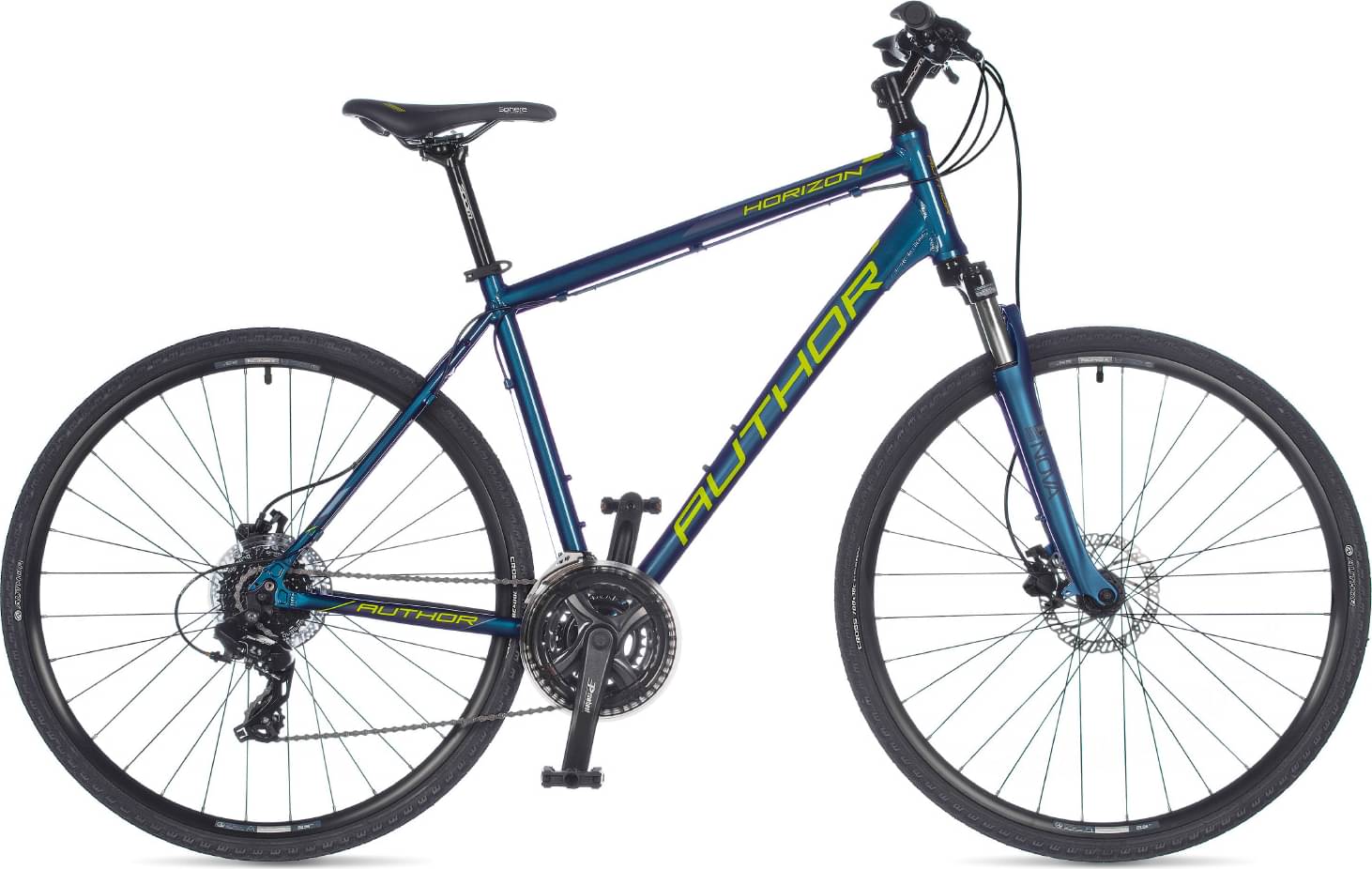

Horizon belongs to the Author Horizon model. Author launched 17 bikes of this model so far. You can easily view all of the Author Horizon bikes models from 2022, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Hybrid bikes
According to our math, the average price for a trustworthy Hybrid bike is 562$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Hybrid bikes average weight
The average weight for Hybrid bikes is 13.85 kg (30.53 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Horizon weighs 14.3 kg (31.53 lbs) and is slightly heavier than the average. In other words, this model is 3.25% heavier than the average Hybrid bike.
Horizon components
Fork
Author Horizon 2022 bike is equipped with the RST NOVA fork, and has 60mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the Horizon model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Author Horizon is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 150 cm – 200 cm (4.92 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
