Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 50mm -
Fork Suntour M 3010
-
Groupset Altus, Tourney -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Rim
Sizing
Recommended size guide.
17"
155cm - 172cm
19"
170cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
alloy 6061 700c (ASL)
Suspension Fork
SUNTOUR M3010 AL (50 mm)
Drivetrain
Rear Derailleur
SHIMANO Altus
Front Derailleur
SHIMANO TX50 (34.9)
Shift Levers
SHIMANO Altus (21)
Cassette
SHIMANO HG20-7 12-32 (7)
Crank
PROWHEEL 42-34-24 teeth 170 / 175 mm cranks
Chain
KMC Z51
Pedals
AUTHOR Non Slip resin
Wheels
Front Hub
QUANDO 32 holes
Rear Hub
QUANDO 32 holes
Rims
alloy 36 holes
Spokes
steel
Tires
AUTHOR Speed Master 700 x 42c
Brakes
Brakes
TEKTRO 855
Cockpit
Stem
ZOOM alloy
Handlebar
steel 20 mm 620 / 640 mm
Grips
AUTHOR high density foam
Seat
Saddle
AUTHOR Fenix
Seatpost
ZOOM alloy (31.6)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 17" | 19" |
|---|---|---|
| Front Center | 612 mm | 628 mm |
| Rake | 68 mm | 68 mm |
| Top Tube Length | 551 mm | 566 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 432 mm | 483 mm |
| Head Tube Angle | 71 ° | 71 ° |
| Head Tube Length | 120 mm | 135 mm |
| Chainstay Length | 443 mm | 443 mm |
| Wheelbase | 1050 mm | 1066 mm |
| Bottom Bracket Drop | 50 mm | 50 mm |
| Wheels | 700 | 700 |
| Rider Min Height | 155 cm | 170 cm |
| Rider Max Height | 172 cm | 185 cm |

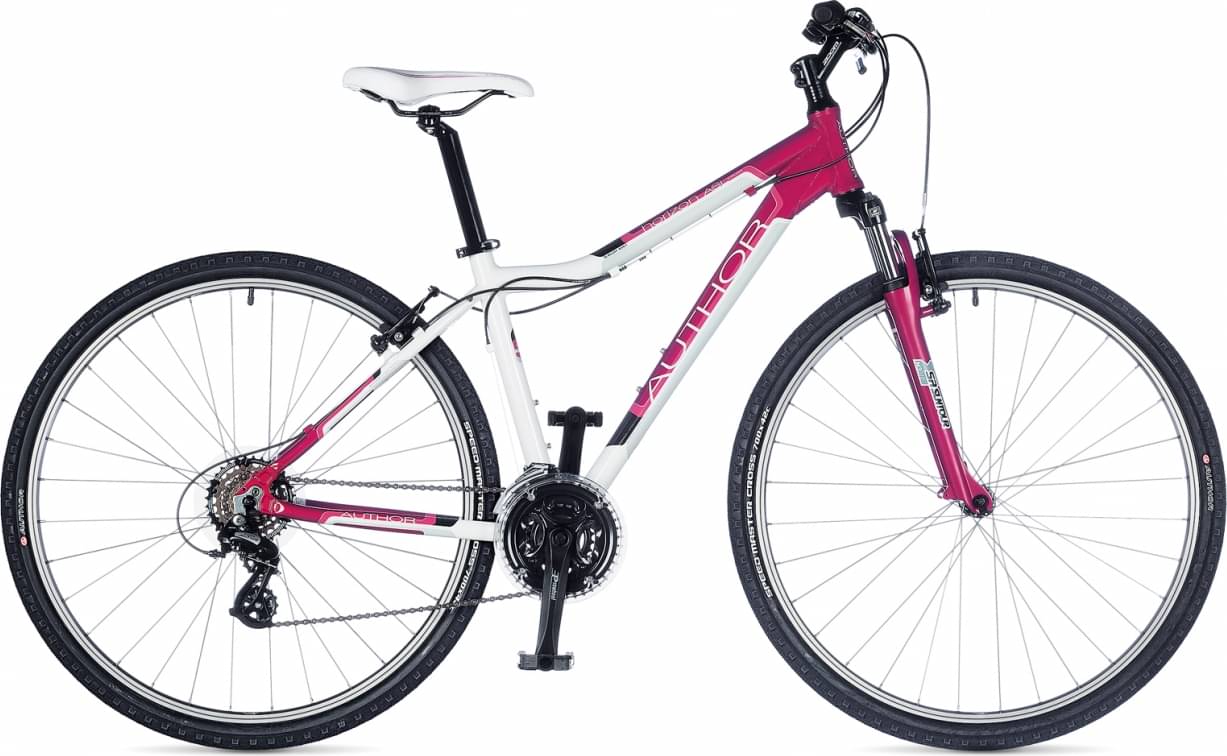

Model Overview
Horizon ASL is part of the Author Horizon model. Author released 17 bikes variations of this model so far. You can get a glimpse at all models from 2015, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hybrid bikes
Our math shows that the average cost of a dependable Hybrid bike is 562$. However, even though the average price of a Hybrid bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Hybrid bikes average weight
If we make a quick analysis of the average weight of a Hybrid bike, we get 13.85 kg (30.53 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
a bit lighter than average, Horizon ASL has a weight of 13.1 kg (28.88 lbs). In short, the average Hybrid bike weight is 5.73% higher than this one.
Overview of components
Fork
The fork installed on this bike is the Suntour M 3010 model. The travel on this model is 50mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
When it comes to the fork, this bike has an aluminum one, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
The wheels on Horizon ASL are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Author Horizon ASL has Rim brakes installed. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
There are 2 sizes available for this model. Rider height can be anywhere between 155 cm – 185 cm (5.09 ft – 6.07 ft). In conclusion, you won’t have a problem finding one that suits you.
