Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 60mm -
Fork RST NEON
-
Groupset Altus, Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Rim
Sizing
Recommended size guide.
15"
145cm - 158cm
17"
155cm - 172cm
19"
170cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
alloy 6061 700c (ASL)
Suspension Fork
RST Neon T (60 mm)
Drivetrain
Rear Derailleur
SHIMANO Altus
Front Derailleur
SHIMANO TX800 (31.8)
Shift Levers
SHIMANO Altus (24)
Cassette
SHIMANO HG200-8, 12-32 teeth, 8 speed
Crank
PROWHEEL, 42-34-24 teeth, 170 / 175mm cranks
Chain
KMC Z72
Pedals
AUTHOR Non Slip resin
Wheels
Front Hub
QUANDO 32 holes
Rear Hub
QUANDO 32 holes
Rims
alloy 32 holes
Spokes
black steel
Tires
AUTHOR Speed Master 700 x 42c
Brakes
Brakes
TEKTRO V
Cockpit
Stem
ZOOM alloy
Handlebar
steel 20mm/ 640-660mm
Grips
AUTHOR high density foam
Seat
Saddle
AUTHOR Noble
Seatpost
ZOOM alloy (27.2)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" |
|---|---|---|---|
| Front Center | 612 mm | 633 mm | 653 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Top Tube Length | 548 mm | 568 mm | 588 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1043 mm | 1064 mm | 1084 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 145 cm | 155 cm | 170 cm |
| Rider Max Height | 158 cm | 172 cm | 185 cm |
About this model

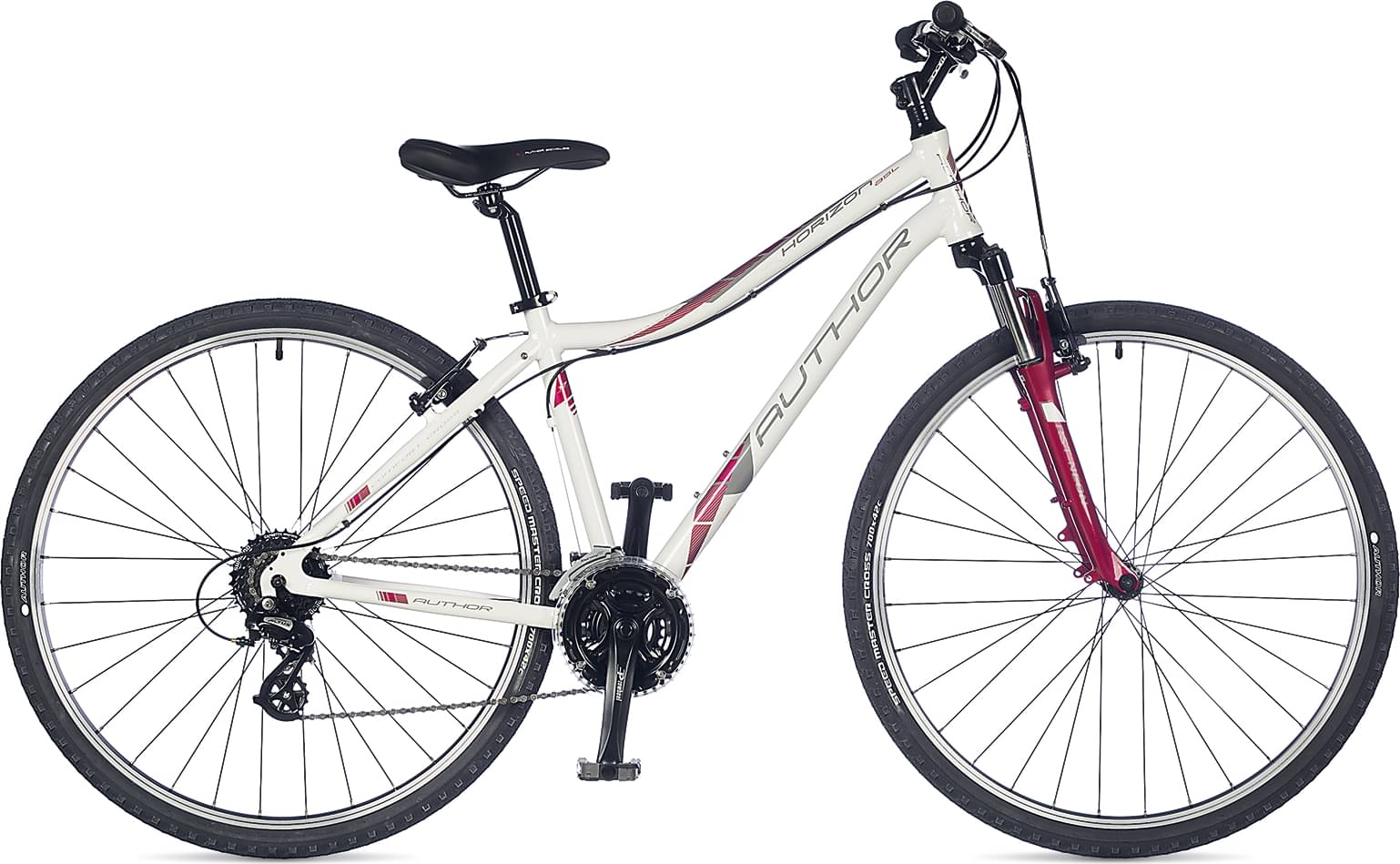

Horizon ASL belongs to the Author Horizon model. Author released 17 bikes variations of this model so far. Take a sneak peek at all Author Horizon bikes models from 2017, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Hybrid bikes
If you want an acceptable Hybrid bike you should know that the average price is 562$. However, you could also get a good Hybrid bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Hybrid bikes
If we make a quick analysis of the average weight of a Hybrid bike, we get 13.85 kg (30.53 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 12.9 kg (28.44 lbs), Author bike is a bit lighter than average. In short, the average Hybrid bike weight is 7.36% higher than this one.
Overview of components
Fork
The fork installed on this bike is the RST NEON model. The travel on this model is 60mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When it comes to wheels, the Horizon ASL bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Author Horizon ASL is equipped with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
Sizes
Author Horizon ASL bike has 3 sizes, in the range of 145 cm – 185 cm (4.76 ft – 6.07 ft). In short, it won’t be difficult to find the right one for you.
