Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 80mm -
Fork RST CAPA
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Rim
Sizing
Recommended size guide.
15"
145cm - 158cm
17"
155cm - 172cm
19"
170cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
alloy 6061 29" (ASL)
Suspension Fork
RST Capa 29 T (80 mm)
Drivetrain
Rear Derailleur
SHIMANO TX800
Front Derailleur
SHIMANO TY700 (31.8)
Shift Levers
SHIMANO TX800(24)
Cassette
SHIMANO HG200-8 12-32 (8)
Crank
PROWHEEL 42-34-24 teeth 170 / 175 mm cranks
Chain
KMC Z8.1
Pedals
AUTHOR Non Slip resin
Wheels
Front Hub
QUANDO 32 holes
Rear Hub
QUANDO 32 holes
Rims
alloy 32 holes
Spokes
black steel
Tires
AUTHOR Speed Master 29"x 1.75"
Brakes
Brakes
TEKTRO V
Cockpit
Stem
ZOOM alloy
Handlebar
steel 20 mm 660 / 680 mm
Grips
AUTHOR ErgoGrip
Seat
Saddle
AUTHOR Area
Seatpost
ZOOM alloy (27.2)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" |
|---|---|---|---|
| Front Center | 621 mm | 635 mm | 663 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Top Tube Length | 548 mm | 568 mm | 588 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1062 mm | 1076 mm | 1104 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 145 cm | 155 cm | 170 cm |
| Rider Max Height | 158 cm | 172 cm | 185 cm |
Model Overview

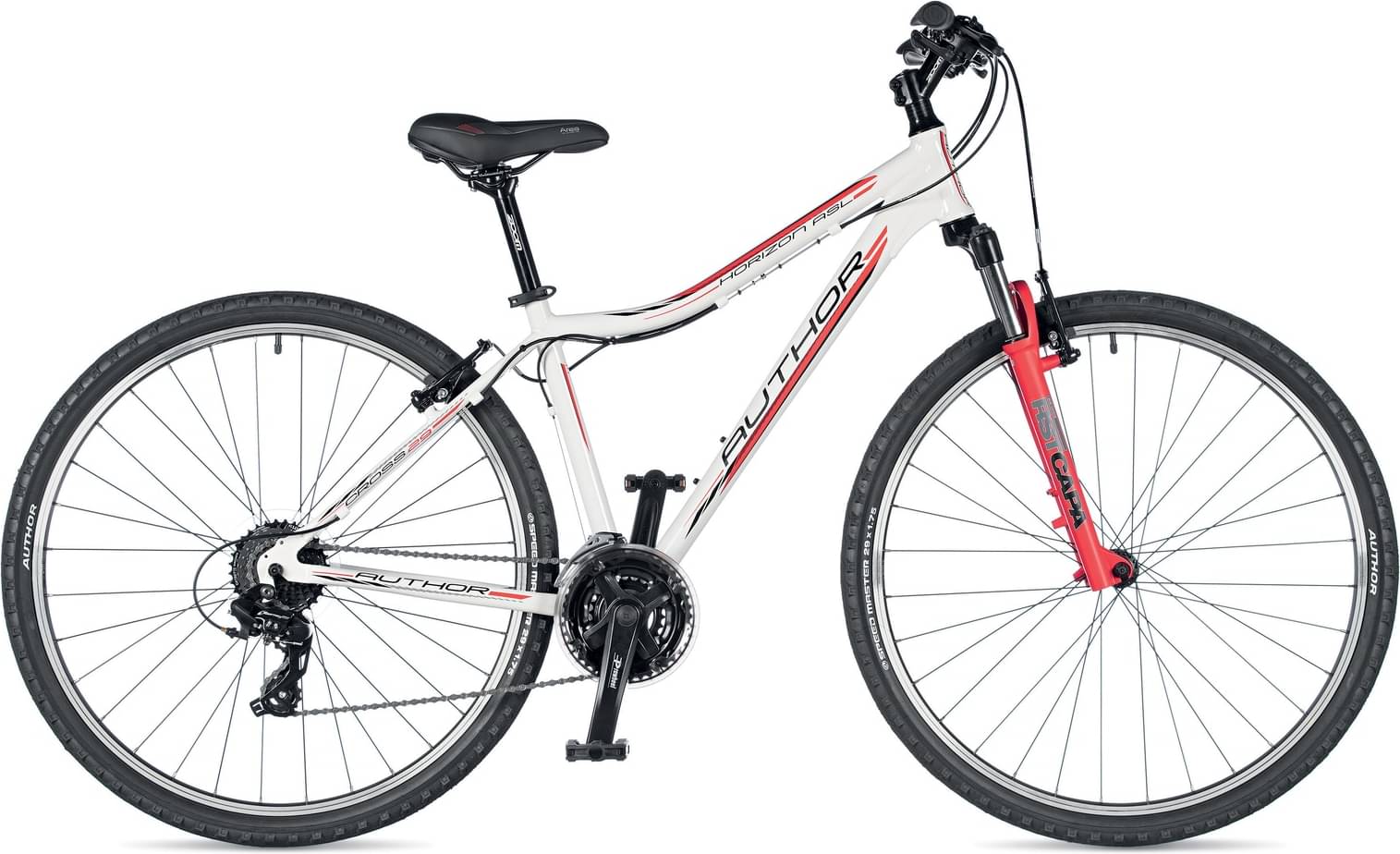

Horizon ASL completes the Author Horizon model. Author released 17 bikes variations of this model so far. Take a sneak peek at all Author Horizon bikes models from 2019, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Hybrid bikes average price
Our math shows that the average cost of a dependable Hybrid bike is 562$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Hybrid bikes
Hybrid bikes have an average weight of 13.85 kg (30.53 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Horizon ASL weighs 13.9 kg (30.64 lbs) and is slightly heavier than the average. To sum up, it’s 0.36% heavier than the average weight of Hybrid bikes.
Overview of components
Fork
The RST CAPA is included from the factory. It has a travel distance of 80mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When it comes to wheels, the Horizon ASL bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The Horizon ASL has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
Author Horizon ASL bike has 3 sizes, in the range of 145 cm – 185 cm (4.76 ft – 6.07 ft). In conclusion, it won’t take much to find one that’s right for you.
